A Flexible LED Wall Washer is a type of linear LED lighting fixture designed to be bent and shaped to fit curved, uneven, or complex architectural surfaces. Unlike traditional rigid light bars, its core component is a flexible circuit board populated with LEDs, housed in a protective silicone or TPU cover with PU(polyurethane encapsulation.

Its primary function is to “wash” walls and surfaces with a smooth, uniform, and vibrant blanket of light, creating dramatic visual effects, highlighting architectural features, and enhancing ambiance.

What Types have in Hanky?

With the bending direction, there are top bending or 3D bending, such as the 3D bending IP65 26x20mm, IP67 16x15mm 3D bending led neonflex, it’s all made from Silicone extrusion.

And the top bending flexible led wall washers have: 20x10mm flexible led wall washer with TPU cover and PU endcapsulation IP67, has small angle and Asymmetric angle, other is 18.5*9.3mm IP67 flexible led wall washer, and 12x12mm IP67 flexible led wall washer, IP20 flexible led wall washer.

How to install the wall washer?

Due to the high power, the lowest power is 18W/M and max power is 24W/M, the aluminum profile is necessary which help the heat-dissipation and ensure its lifespan, there is the adjustable clip to change the lighting direction similar to the traditonal led wall washer.

How It Works

The magic lies in its construction:

Flexible PCB: Double layer rolled copper, to ensure the FPC could be bent and recover soon, 3OZ FPC can promise the product has the better hea-dissipation and no noticeable voltage drop at 5M from one end.

High-Density LEDs: Numerous tiny, powerful LED chips (like SMD 2835 or SMD3535 or high-CRI LEDs) are mounted closely together on the flexible PCB. This high density is crucial for creating a seamless, continuous light output without dark spots.

Protective Jacket: The entire assembly is encased in a transparent or milky silicone/PUT sleeve. This makes the fixture waterproof (with IP ratings like IP65, IP67, or IP68), dustproof, and resistant to UV radiation and physical impacts.

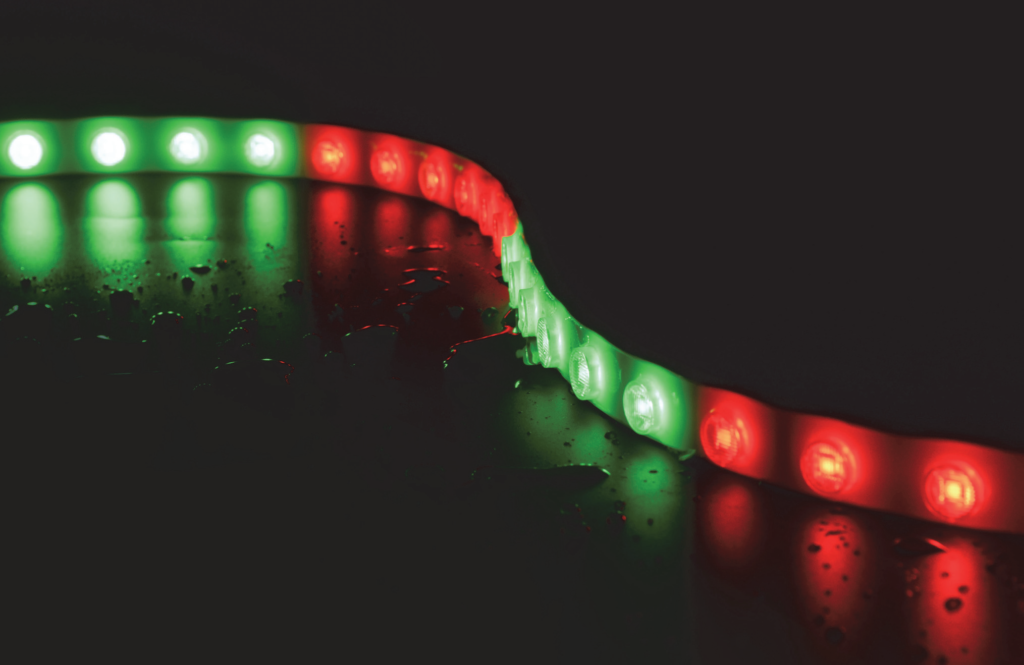

Control System: The lights are connected to a power supply and a controller. This can be a simple static color controller or an advanced system (like DMX512 or RDM) that allows for dynamic color mixing, chasing patterns, strobing, and synchronization with music.

Key Features & Advantages

Unmatched Flexibility & Adaptability:

Core Advantage: Can be bent horizontally and, in some cases, twisted to conform to curves, circles, wavy walls, columns, and irregular shapes. This eliminates the need for complex custom-made rigid fixtures.

Easy Installation: Often comes with mounting clips or an adhesive backing for easy installation on various surfaces.

Seamless, Continuous Light Effect:

The high density of LEDs and the flexible nature ensure there are no gaps or breaks in the light beam, creating a perfectly smooth “wash” of color across a surface.

Excellent Color Rendering & Vivid Colors:

Available in various color options:

Tunable White: Adjust color temperature from warm white (2700K) to cool white (6500K).

RGB & RGBW: Capable of producing millions of colors. The “W” in RGBW adds a dedicated white LED for purer and brighter whites.

High CRI (Color Rendering Index): Options with CRI>90 are available, which render colors more accurately and naturally, ideal for retail and museum settings.

Durability & Weather Resistance:

The silicone coating provides robust protection against moisture, dust, corrosion, and physical damage. High IP ratings make them suitable for both indoor and harsh outdoor environments.

Energy Efficiency & Long Lifespan:

Like all LED technology, they consume significantly less power than traditional lighting (like halogen or fluorescent) and have an exceptionally long operational life (often 50,000 hours or more), reducing maintenance costs.

Advanced Control & Smart Integration:

Can be integrated into sophisticated lighting control systems for dynamic architectural lighting. They can be programmed for complex scenes, scheduled to change throughout the day, and synchronized for large-scale media facades.

Common Applications

Flexible LED wall washers are incredibly versatile and are used in a wide range of scenarios:

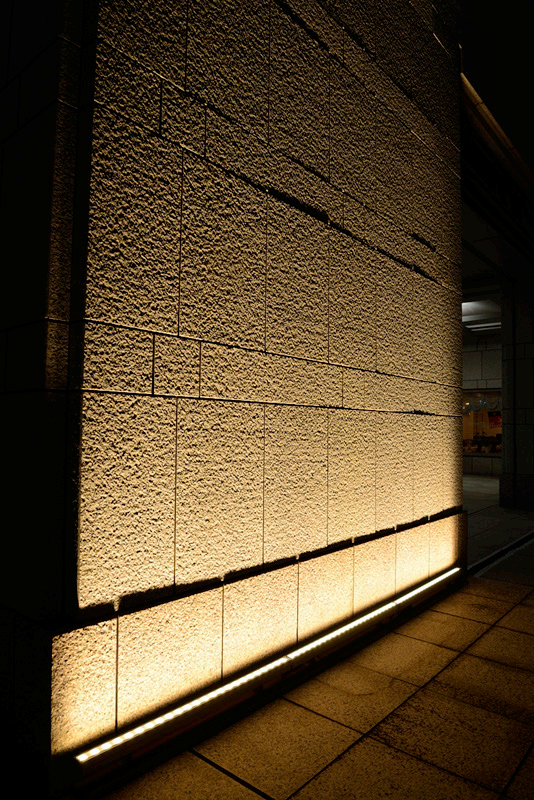

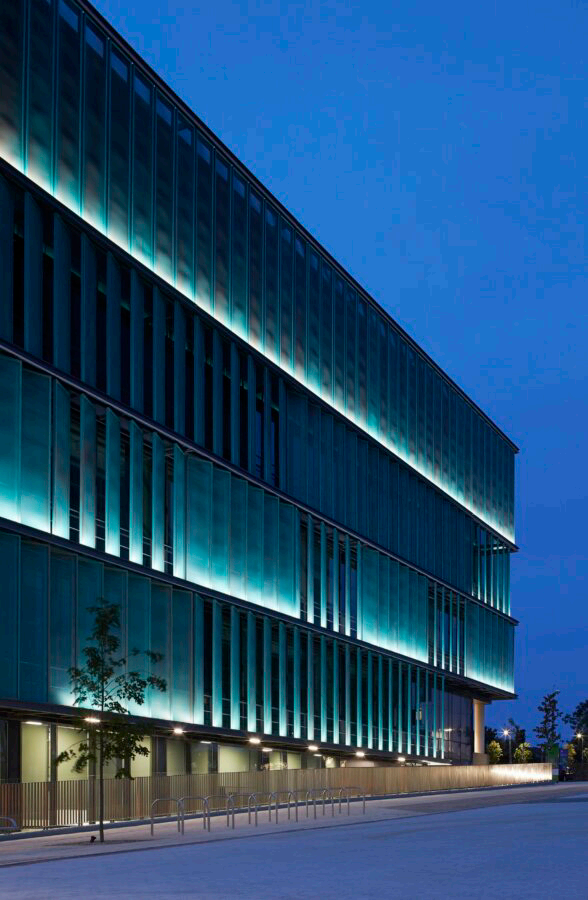

Architectural Lighting: Washing the facades of buildings, bridges, and monuments.

Cove & Recessed Lighting: Perfect for hidden coves, curved ceilings, and under-stair lighting where a rigid strip would not fit.

Retail & Display: Highlighting curved display cases, product shelves, and creating an inviting atmosphere in stores.

Hospitality: Creating mood lighting in hotels, restaurants, and bars around curved bars, pillars, and headboards.

Landscape Lighting: Illuminating winding garden paths, curved walls, ponds, and trees.

Entertainment & Events: Used on stages, in TV studios, and at events for dynamic backdrops and set lighting that can be shaped to the design.

Museums & Galleries: Providing high-CRI, uniform light to accentuate artwork on curved walls.

Summary

In essence, a flexible LED wall washer is the ultimate tool for modern lighting designers. It combines the vibrant, efficient, and controllable nature of LEDs with the physical adaptability required to bring light to any shape or form, unlocking creative possibilities that were previously difficult or impossible to achieve with traditional lighting.

If there is any questions, do not hesitate to contact us or check the product category https://hankylight.com/product-category/flexible-led-wall-washer
