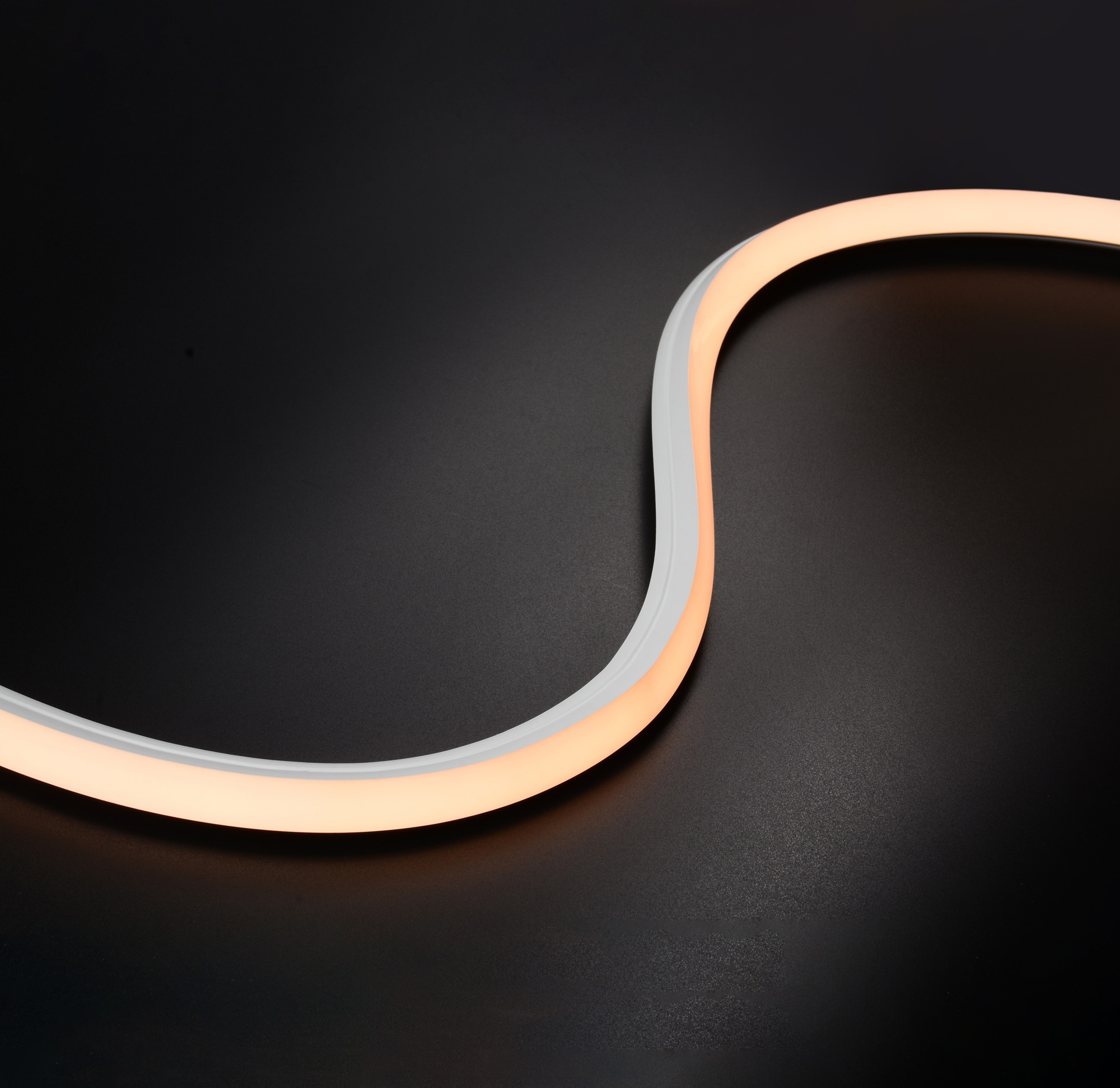

The led neon flex dynamic tunable white is the CCT could be adjusted from 1800K/3000K, 3D bending(top and side bending) with min bending radius 200mm, max run length 5M from one end without voltage drop, consist of SMD2835 84LED/M, max power 7.5W/M 396LM/M 56.8LM/M, standard length 5M/reel and customized length optional, cable entry from top/side/Bottom entry, silicone endcap or integrated injection endcap(by machine) is optional.
| Model No. | FN-GTW084F-Q |
|---|---|
| SMD Type | Epistar SMD2835 W+WW |
| Led Qty(pcs/M) | 84 LED/M |
| Input voltage | DC24V |
| Current/M | 0.31A/M |
| PCB Width | 10mm |
| Power/M | 7.5W/M |
| Lumen/M | 396LM/M |
| Efficiency(LM/W) | 52.8lm/W |
| CCT | Tunable White(1800+3000K) |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | 16*15mm(W*H) |
| Beam Angle | 120° |
| Cutting Unit | 71.4mm |
| IP Rating | IP67 Silicone Extrusion |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 35000hours |
| Working temperture | -20°C~+45°C |
