50x70deg Asymmetric Top Bending 20x10mm IP67 Flexible Led Wall Washer

Category Tags , , , , , ,

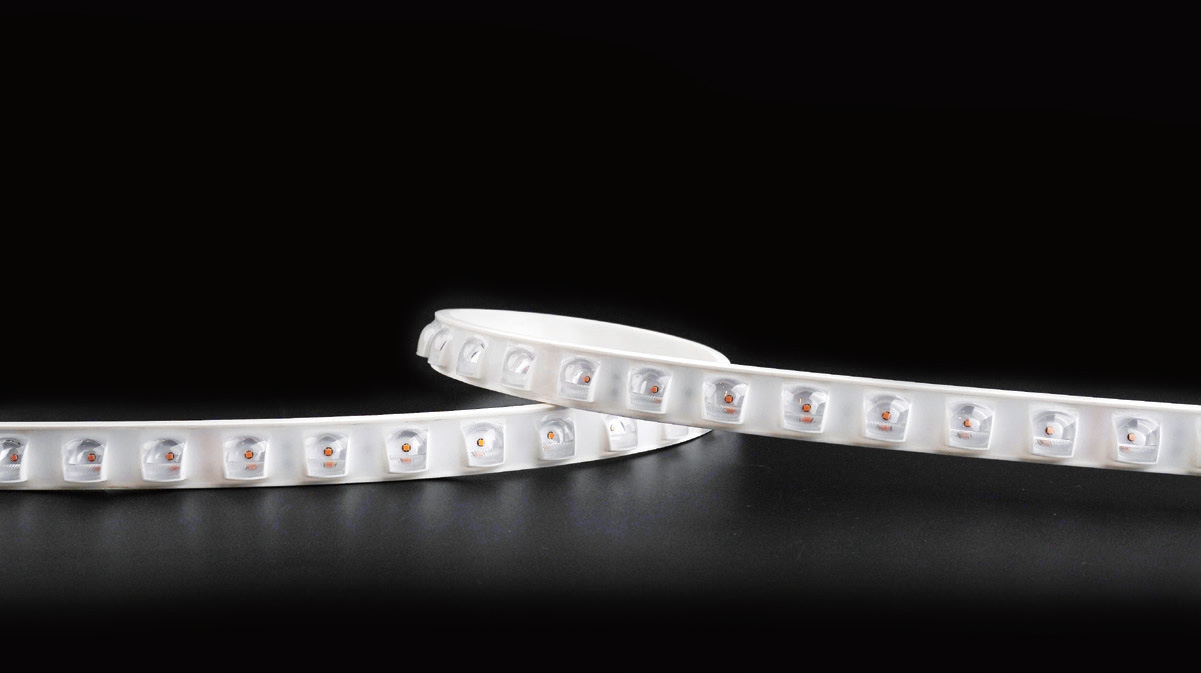

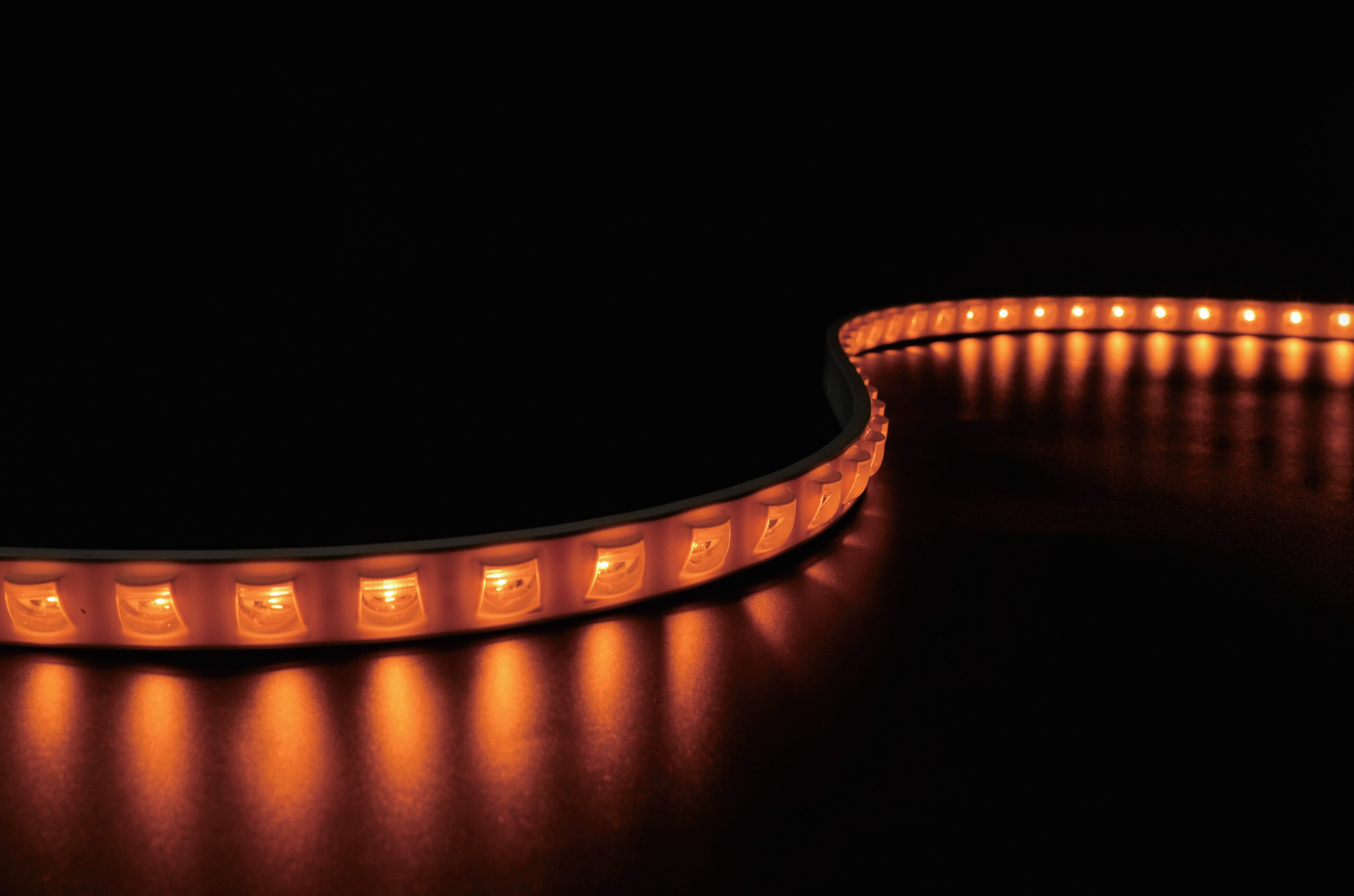

This flexible led wall washer is W20*H10mm, IP67 rating by TPU cover and polyurethane encapsulation,Asymmetric 50×70°,consist of 42LED/M SMD3030 18W 2018LM/M 90Ra, top view and vertical bending with min bending diameter 200mm, 5M/reel and DC24V-5M max run length from one end.

Additional information

Model No.

WL-J30042F-D
SMD Type

SMD3535
Led Qty(pcs/M)

42LED/M
PCB Width

15mm
Input voltage

DC24V
Current/M

0.75A/M
Power/M

18W/M
Lumen/M

2018LM/M
Efficiency(LM/W)

116LM/W
CCT

2700-6500K
CRI(Ra)

90Ra
Cross Section(W*H)

W20*H10mm
IP Rating

IP67
Beam Angle

50×70°
Cutting Unit

166.6mm
Length

5M/Roll
Max Run

5M from one side
Standard Packing

5M/Roll
Warranty

3 years
Working hour

35000hours
Working temperture

-25℃-60℃
ASK FOR A QUOTE

Products Details

  • Asymmetric angle 50×70°to satisfy the special project requirement.
  • Consist of SMD3030 42LED/M,18W 2018LM/M 90Ra,6-step for finished product.
  • IP67 rating by TPU cover and polyurethane encapsulation, cross section W20*H10mm.
  • Top view and vertical bending, min bending diameter is 200mm.
  • DC24V and max run length 5M from one end without noticeable voltage drop.
  • Standard length 5M/reel and customized length is optional, 3 years warranty.
