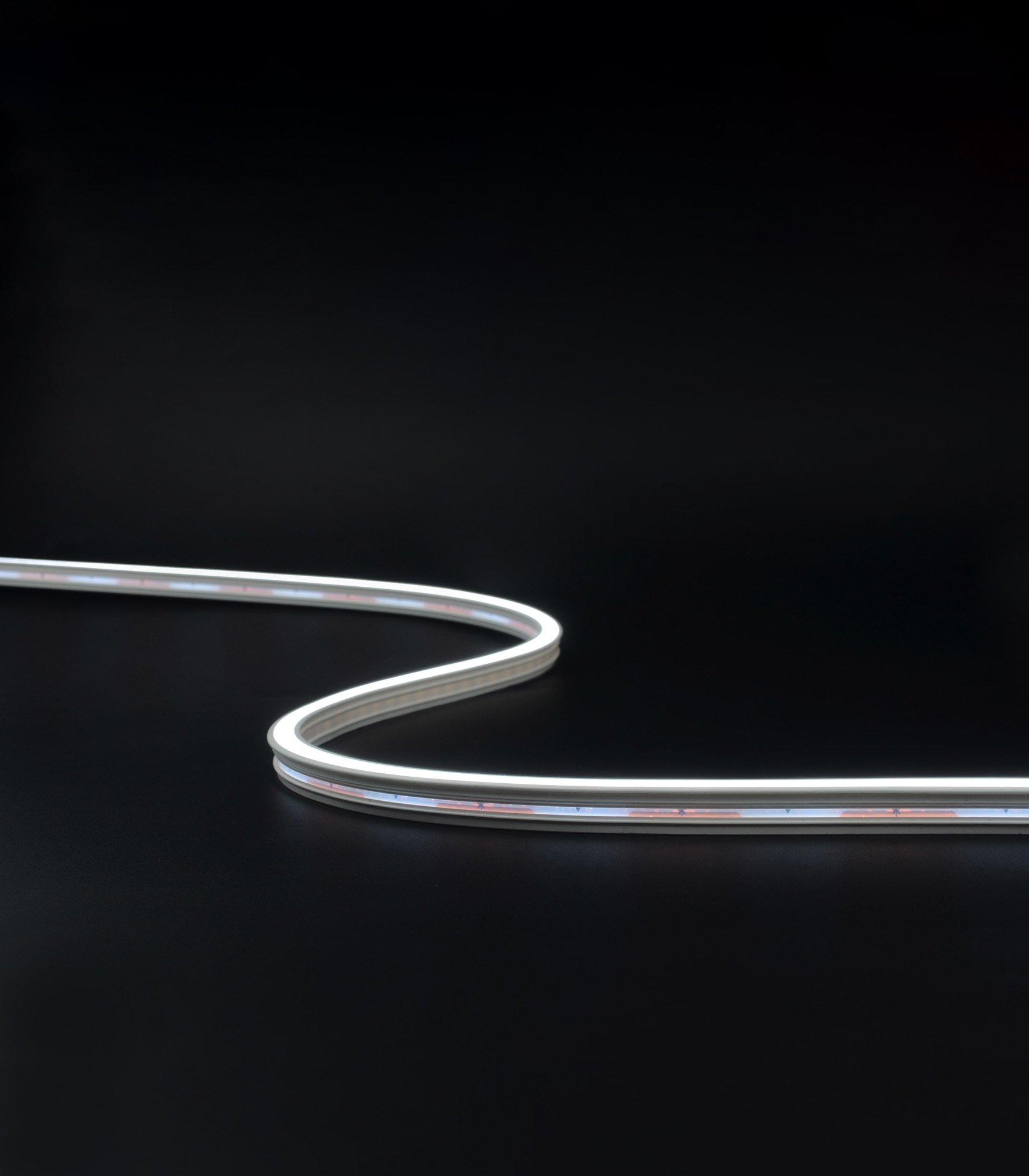

The recessed led neon flex is the ideal solution for the indoors lighting project such as accent lighting, cove lighting, corridor lighting and so on. Cross section size is W6*H12mm, side or horizontal bending with min bending 50mm, IP44 with integrated silicone molding extrusion, max run 5M from one end without noticeable voltage drop, single color 2700K-6500K and red/green/blue/yellow/pink/orange, standard length 5M/reel and customized length optional, front entry ONLY with 30CM B/R cable from one or both end.
| Model No. | FN-GXX120F-K-R |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 8mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 312LM/M |
| Efficiency(LM/W) | 31.2lm/W |
| CCT | 2700-6500K/Red/Green/Blue/Yellow/Pink/Orange |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | 6*12mm(W*H) |
| IP Rating | IP44 |
| Beam Angle | 120° |
| Cutting Unit | 50mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/10M/roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25℃-60℃ |
