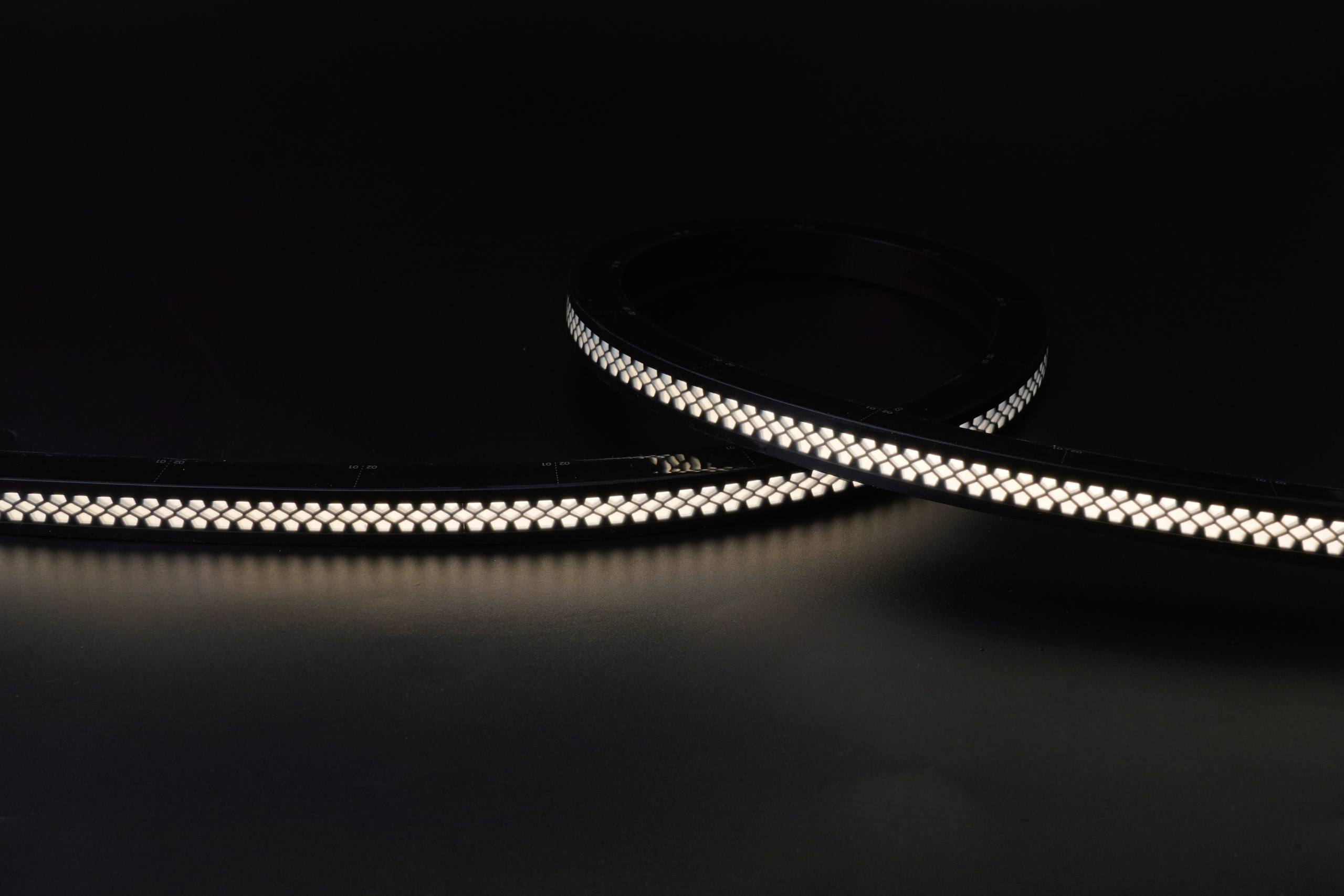

The UGR<19 neon flex with special design and black strip body&emitting surface, suitable to the space need lower brightness, top view and vertical bending with min bending diameter 200mm, cross section is W16xH17mm,integral or silicone endcap, front/side/bottom entry optional, 10W 28LM/M 2.8LM/W,single color 1800-6500K, max run length 15M from one end without noticeable voltage drop, standard reel length is 5M and customized length optional.
| Model No. | FE-GXX120F-C |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 28LM/M |
| Efficiency(LM/W) | 2.8LM/W |
| CCT | 1800-6500K |
| CRI(Ra) | 90Ra |

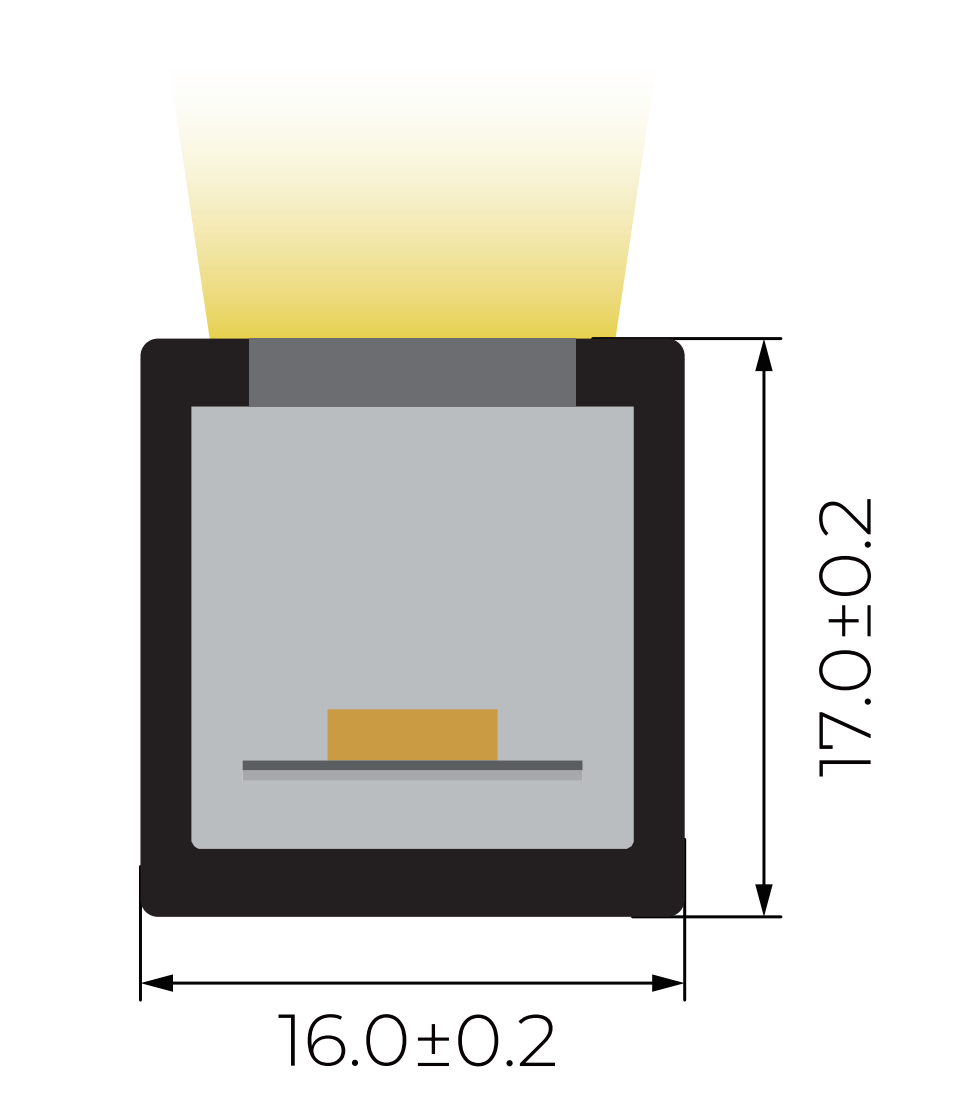

| Cross Section(W*H) | 16*17mm(W*H) |
| IP Rating | IP67 |
| Beam Angle | 120° |
| Cutting Unit | 50mm |
| Length | 5M/Roll |
| Max Run | 15M from one end |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25°C~+45°C |
