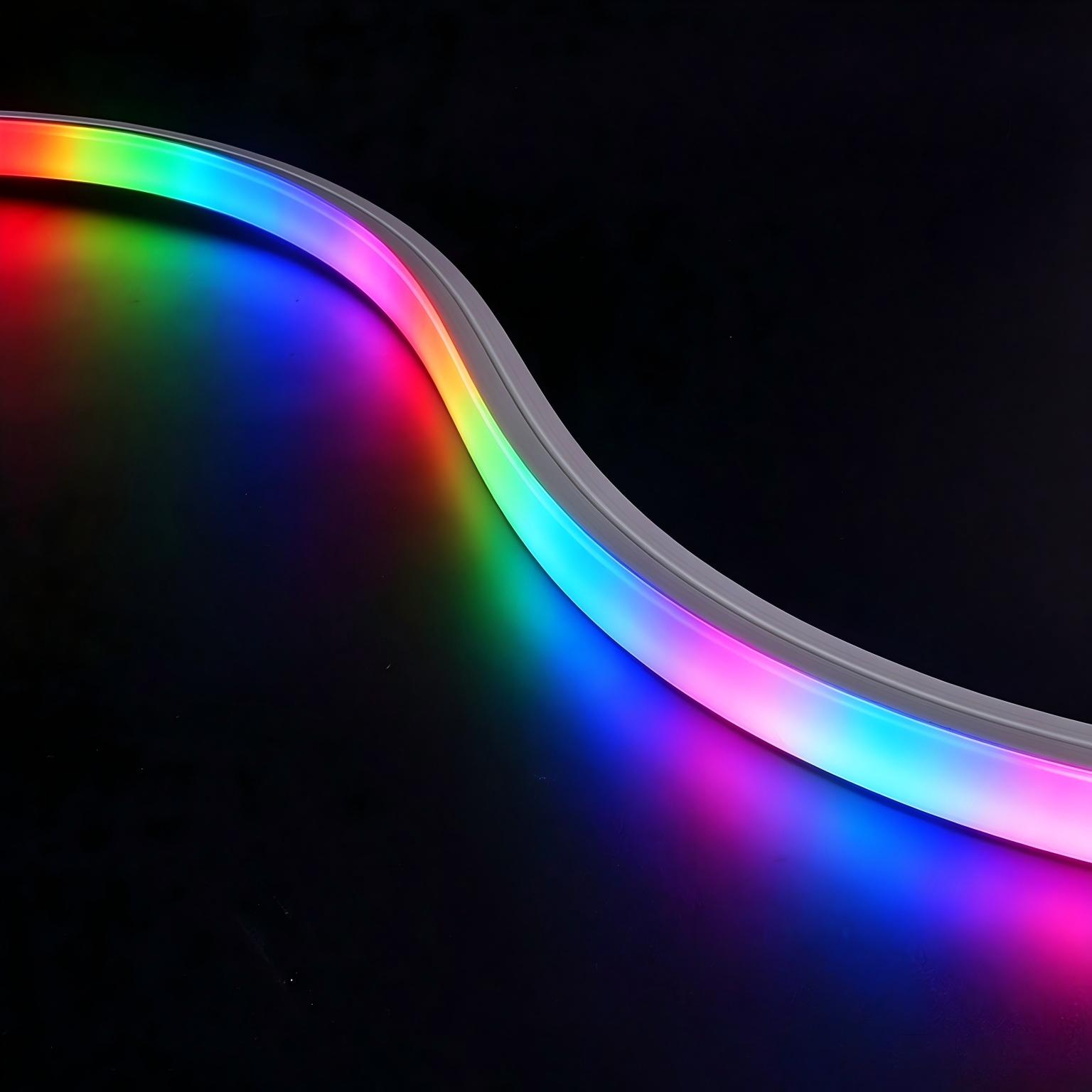

The DMX512 Led neonflex is can be addressable and connecto to the DMX512 system directly. IC type UCS512CL and 8 pixels/M, can be cut in each 125mm. Cross section 16X17mm, Top Bending(Vertical Bending) Led Neon Flex is the an ideal solution for direct and indirect lighting applications. With the SILASTIC™ ET-7021 silicone rubber and frosted coating on the emitting surface, IP68 integrated solid silicone extrusion, salt solution resistance, acids & alkalis and UV resistance, non-yellowish and dust-free. The Epistar RGBW 5IN1 leds ensure the high brightness and stable color changing, the milky emitting surface to ensure the dot-free and homogeneous emitting.
| Model No. | FN-GRW080F-F-V3-DMX512 |
|---|---|
| SMD Type | Lumileds SMD5050 RGBW |
| Led Qty(pcs/M) | 80LED/M |
| PCB Width | 10mm |
| Signal Type | DMX512 |
| IC Chip | UCS512CL |
| IC Qty | 8pixels/M |
| Input voltage | DC24V |
| Current/M | 0.625A/M |
| Power/M | 15W/M |
| Lumen/M | 381lm/M |
| Efficiency(LM/W) | 25.4lm/W |
| CCT | DMX512 RGBW |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*17mm(W*H) |
| IP Rating | IP68 |
| IK Rating | IK10 |
| Beam Angle | 120° |
| Cutting Unit | 24V:125mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/10M/roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25°C~+45°C |
