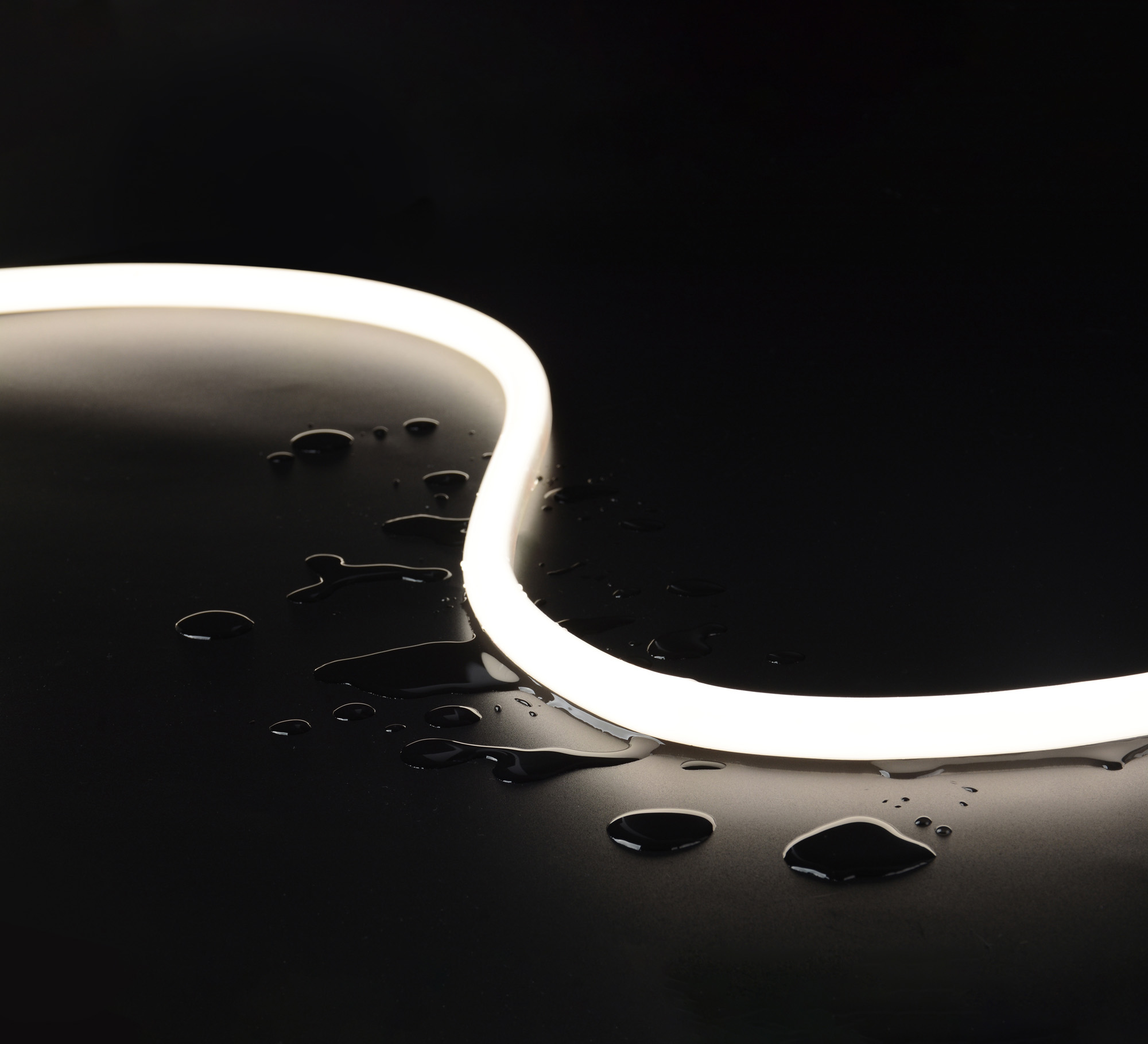

This Silicone LED Neon Flex is DC24V, power 5W/10W/M,cross section diameter 16mm, top view and vertical bending and its minimum bending diameter is 200mm, constant voltage design and max run 5M from one side without noticeable voltage drop, front entry, minimum cutting unit is 50mm, dual white 2700-6500K color changing and color&mode can be controlled by 2.4G/RF CCT controller,customized length is available.
| Model No. | FP-GTW120F-I |
|---|---|
| SMD Type | Epistar SMD2835 W+WW |
| Led Qty(pcs/M) | 120LED/M |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| PCB Width | 12mm, 8mm |
| Power/M | 10W/M |
| Lumen/M | 630LM/M |
| Efficiency(LM/W) | 63LM/W |
| CCT | Dual White(2700+6500K) |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | Diameter:16mm |
| IP Rating | IP67 Silicone Extrusion |
| Cutting Unit | 24V:50mm |
| Beam Angle | 270° |
| Max Run | 5M from one side |
| Length | 5M/Roll |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
