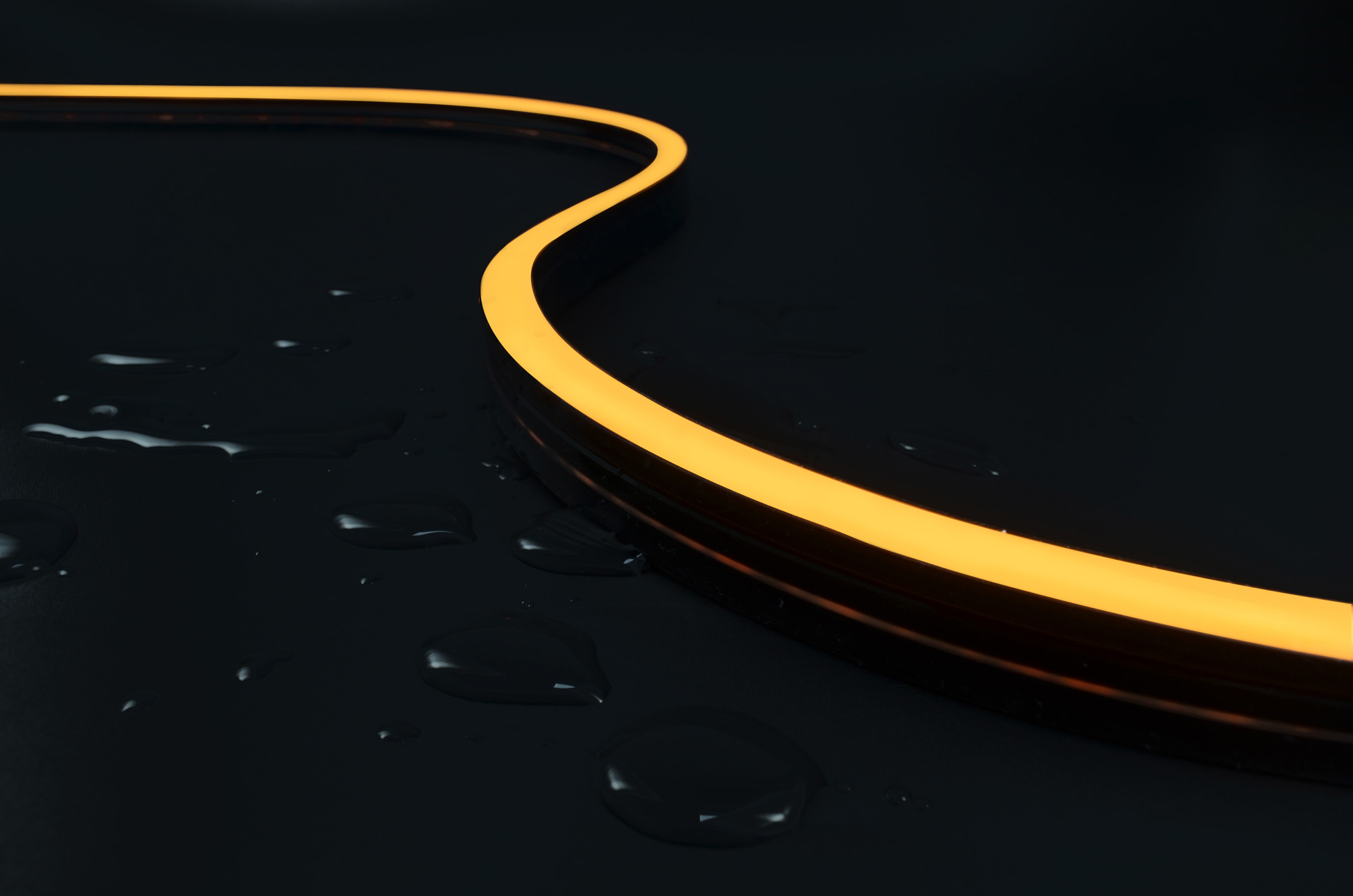

This Silicone LED Neon Flex is DC24V, minimum cutting unit is 8.33mm, black strip body,5W/M,10W/M,15W/M is optional,cross section 12x20mm, side view and horizontal bending and its minimum bending diameter is 200mm, constant voltage design and max run 5M from one side without noticeable voltage drop, have the front/Side/Bottom cable entry, , single color 2700K/3000K/4000K/6000K is available.
| Model No. | FN-GXX120F-O-B-MINI |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 120LED/M |
| Input voltage | DC24V |
| Current/M | 0.625A/M |
| PCB Width | 10mm |
| Power/M | 15W/M |
| Lumen/M | 163LM/M |
| Efficiency(LM/W) | 11LM/W |
| CCT | 2700K/3000K/4000K/6500K |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | 12*20mm(W*H) |
| IP Rating | IP67 Silicone Extrusion |
| Cutting Unit | 8.33mm |
| Beam Angle | 120° |
| Max Run | 5M from one side |
| Length | 5M/Roll |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
China Fast Delivery LED Strip & Neon Flex Factory, Where Make Creatives Come To Play.
