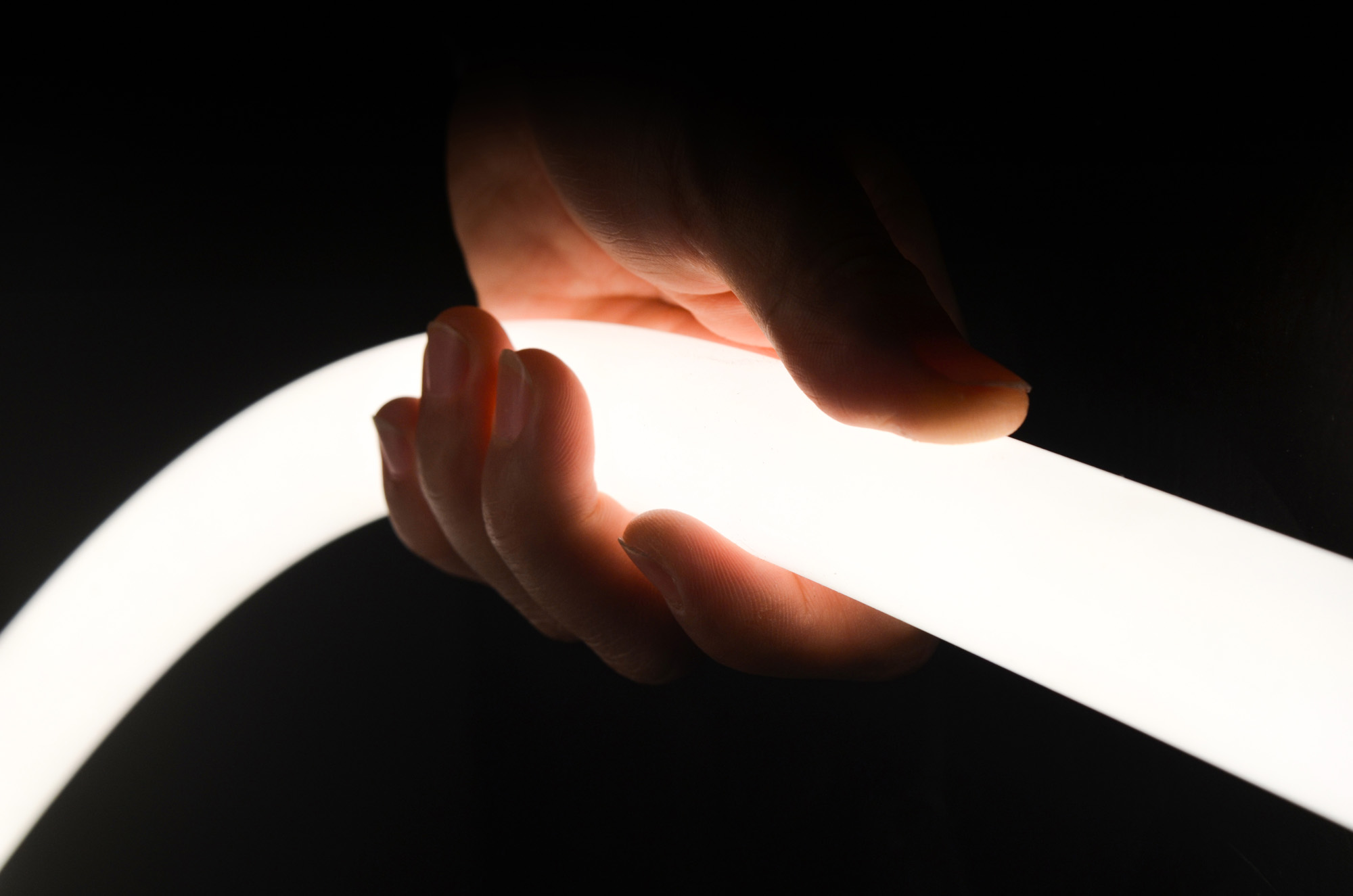

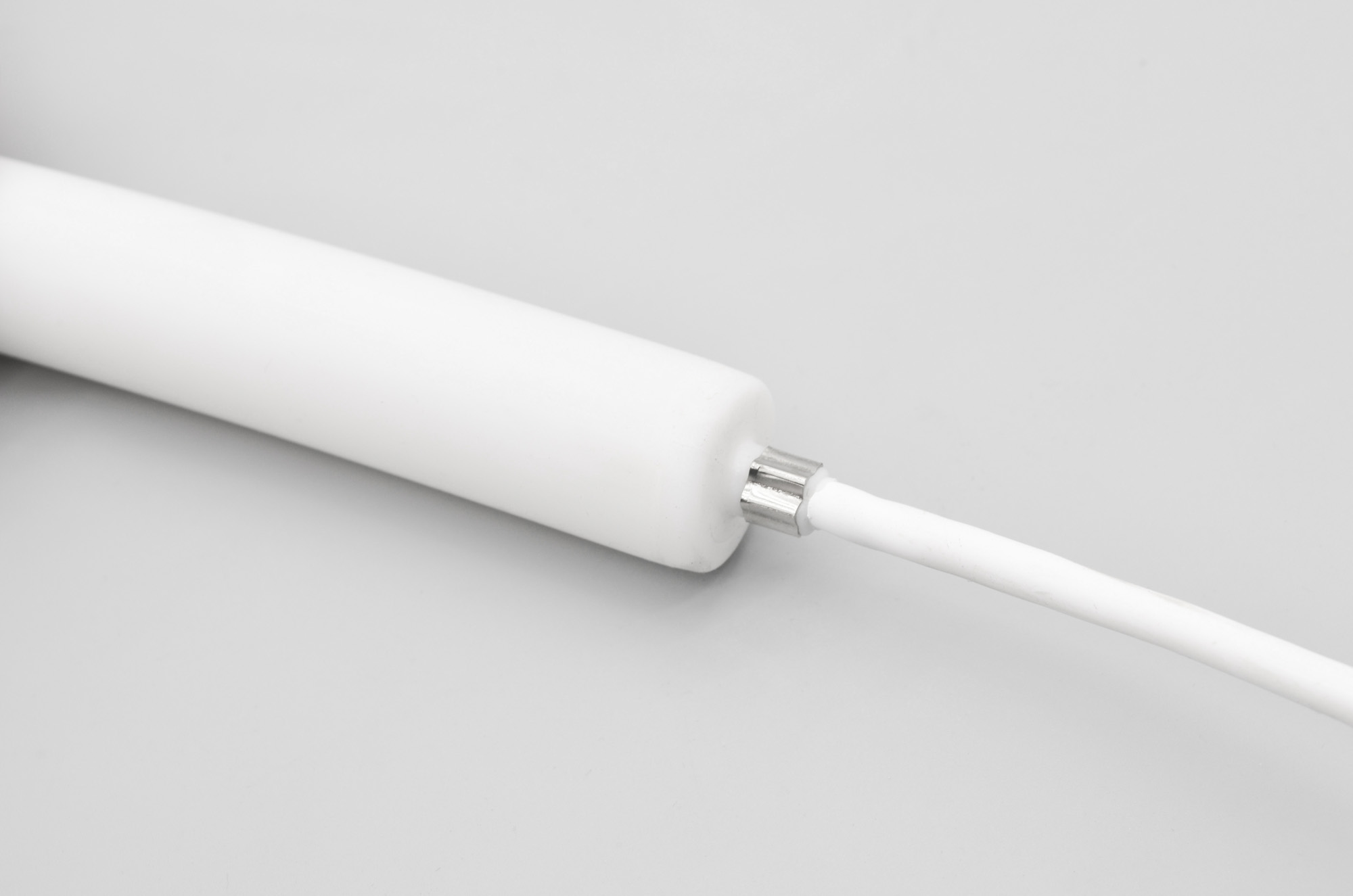

This 360° emitting silicone led neon flex is diameter 25MM, Mini cutting 8.33mm with one led 1 cut, IP67 rating,with min bending diameter 200mm, consist of high bright Epistar SMD2835 240LED/M, 10W/M 690LM/M 69LM/W, DC24V and max run length is 5M from one end without noticeable voltage drop, standard reel length is 5M and customized length is optional, front entry/side entry with medal endcap and 30CM from one end,UV/salty water and high temperature resistant, non yellowish in 3 years.
| Model No. | FN-GXX240F-V-MINI |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 240LED/M |
| PCB Width | 8mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 690LM/M |
| Efficiency(LM/W) | 69LM/W |
| CCT | 2700K/3000K/4000K/6500K |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | Diameter:25mm |
| IP Rating | IP67 |
| Beam Angle | 360° |
| Cutting Unit | 8.33mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25°C~+45°C |
