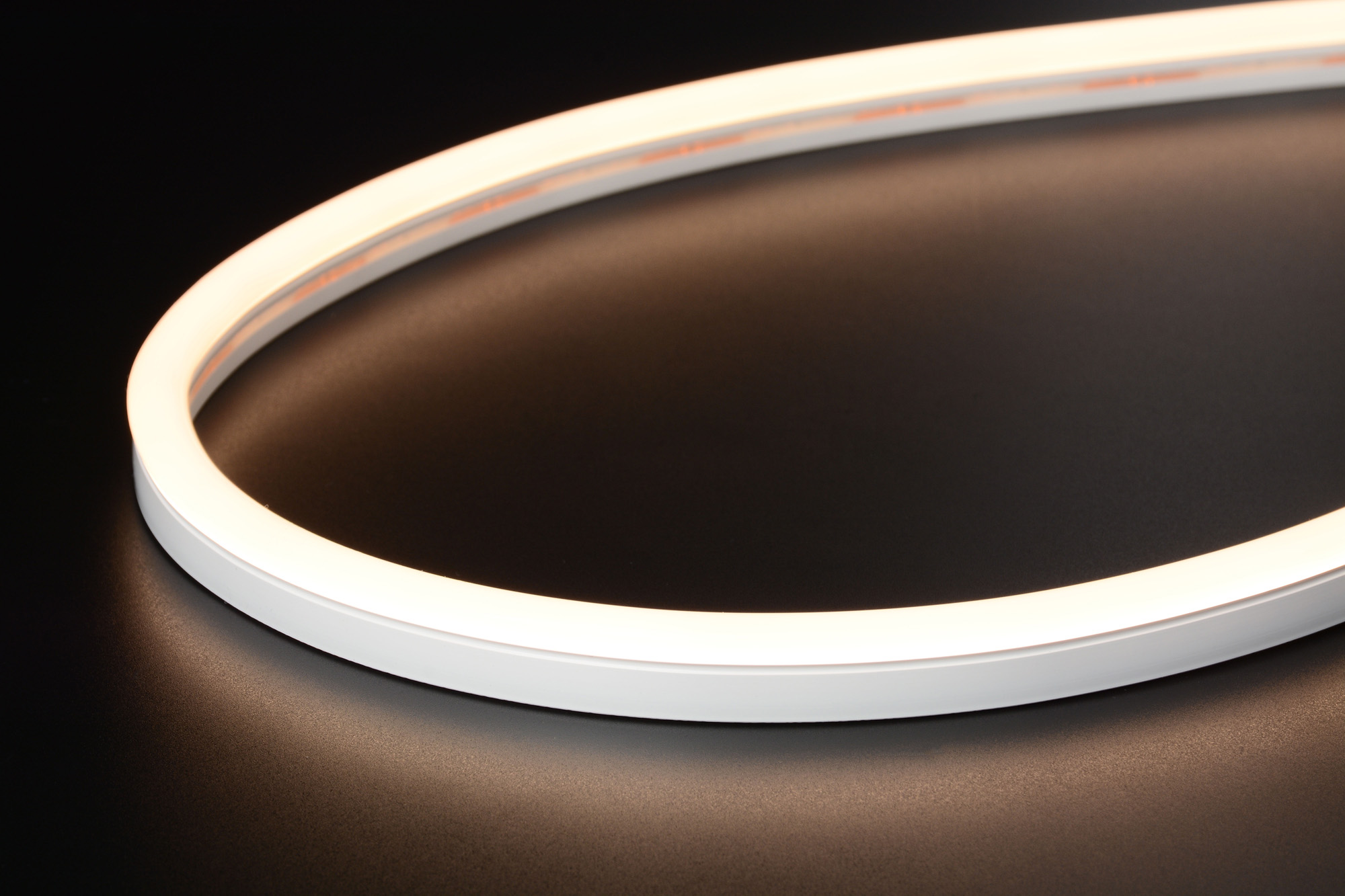

The side bending led neonflex, cross section 8x17mm, consist of Epistar SMD120LED/M, 1 led a cutting, cutting length only 8.33mm, min bending radius 100mm, integrated endcap/silicone endcap/solder-free endcap, front/side/bottom cable entry, 310lm/M 10W/M 31LM/W, constant voltage design 24V, max run length 5M from one end without noticeable voltage drop. Standard length in 5M and customized length is optional, CCT 2700K/3000K/4000K/6000K is available.
| Model No. | FN-GXX120F-R-MINI |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 8mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 310LM/M |
| Efficiency(LM/W) | 31LM/W |
| CCT | 2700K/3000K/4000K/6500K |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | 8*17mm(W*H) |
| IP Rating | IP67 Silicone Extrusion |
| Cutting Unit | 8.33mm |
| Beam Angle | 180° |
| Max Run | 5M from one side |
| Length | 5M/Roll |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
