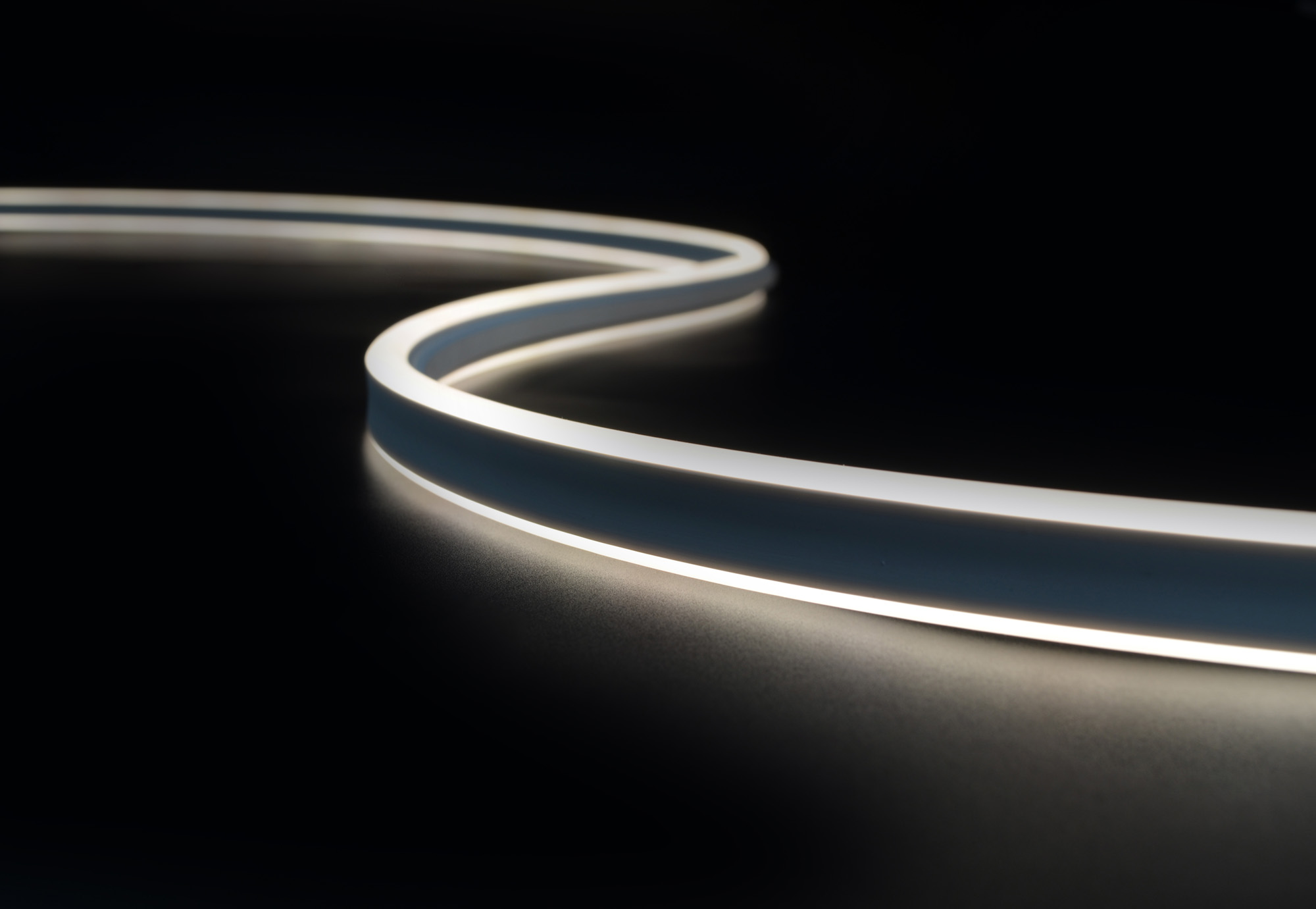

This led neonflex with cross section W16*H12mm, can be cut in each 8.33mm, recessed installation, side or horizontal bending, with min bending radius 200mm, IP65 Rating, DC24V-max run length 5M from one end, 5M/reel and customized length optional, consist of Epistar SMD2835 120LED/M, 10W/M 550LM/M 55LM/W 90Ra, front entry with integrated endcap, single color 2400-6500K available.
| Model No. | FN-GXX120F-Y-XX |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 8mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 550LM/M |
| Efficiency(LM/W) | 55LM/W |
| CCT | 2700K/3000K/4000K/6500K |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | W16*H12mm |
| IP Rating | IP65 |
| Beam Angle | 120° |
| Cutting Unit | 24V:50mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
