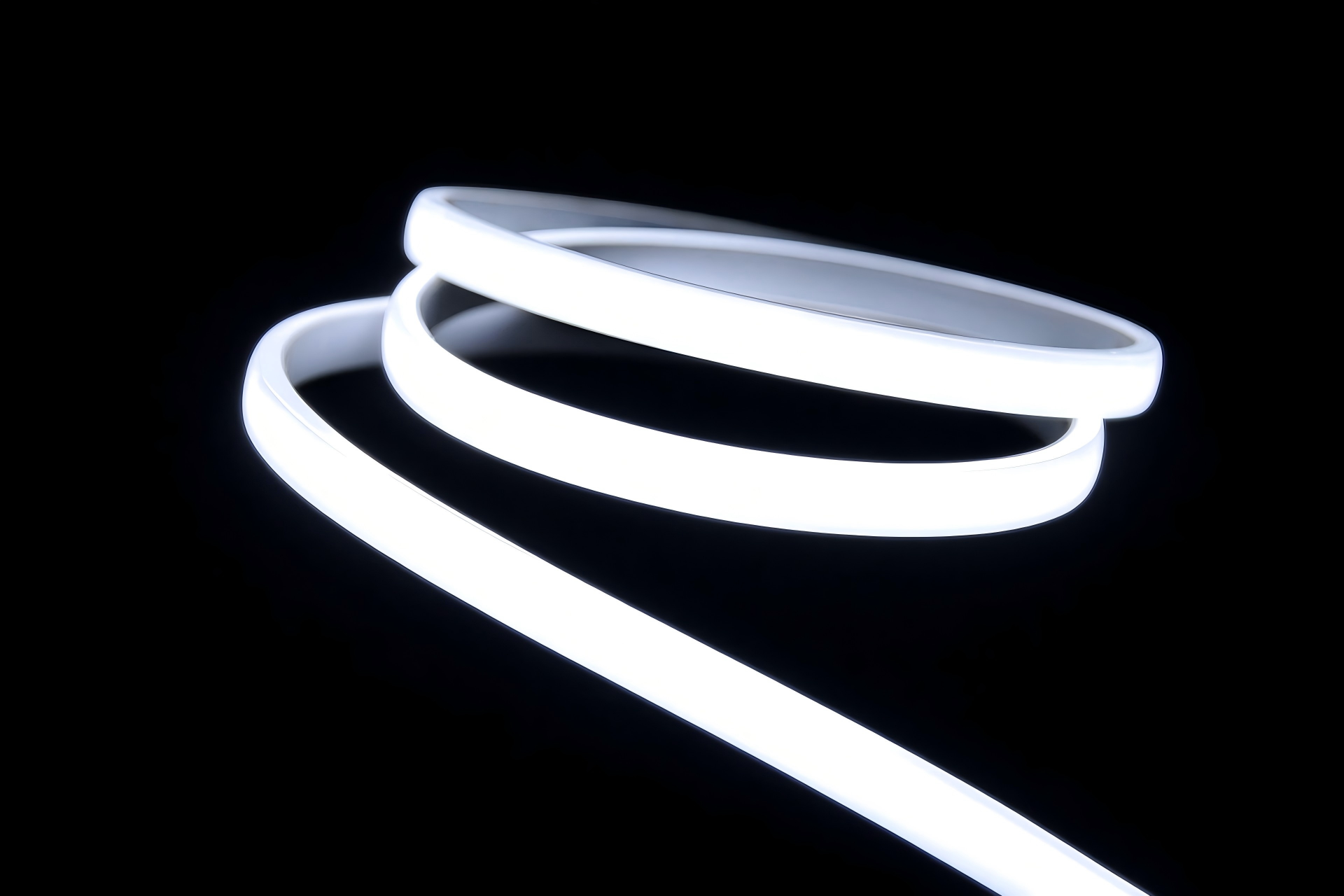

PU Mini Trio View Top Bending 8x4mm IP65 Led Neon Flex

PU Mini Trio View Top Bending 8x4mm IP65 Led Neon Flex
PU Mini Trio View Top Bending 8x4mm IP65 Led Neon Flex - Image 2
Category Tags , , , , , , , ,

Solder-free design accessory to ensure the DIY cutting and connection at site, cross section is 8x4mm, trio-view and top bending(vertical bending) with min bending radius 50mm, IP65 ratinh with PU glue filling, DC24V constant voltage design, max run 10M from one end without voltage drop, 2700-6500K, red,green,blue,yellow is optional, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FP-QXX350F-M
SMD Type

SMD1819
Led Qty(pcs/M)

350LED/M
PCB Width

6mm
Input voltage

DC24V
Current/M

0.41A/M
Power/M

10W/M
Lumen/M

1260lm/M
Efficiency(LM/W)

126lm/W
CCT

2700K-6500K/Red/Green/Blue/Yellow
CRI(Ra)

90Ra
Cross Section(W*H)

8x4mm(WxH)
IP Rating

IP65
Beam Angle

180°
Cutting Unit

24V:20mm
Length

5M/Roll
Max Run

10M from one side
Standard Packing

5M/10M/roll
Warranty

5 Years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Solder-free accessory to be fast connection after cutting at site, no need to solder cable.
  • Powered by 350LED/M SMD1819 led chip and lighting efficiency up to 126lm/W;
  • Completely dot-free and homogeneous lighting.
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • PU(Polyurethane) encapsulation IP65 rating and applied to indoors/ourdoors lighting project.
  • Trio view and beam angle is 180degree with dot-free and soft emitting;

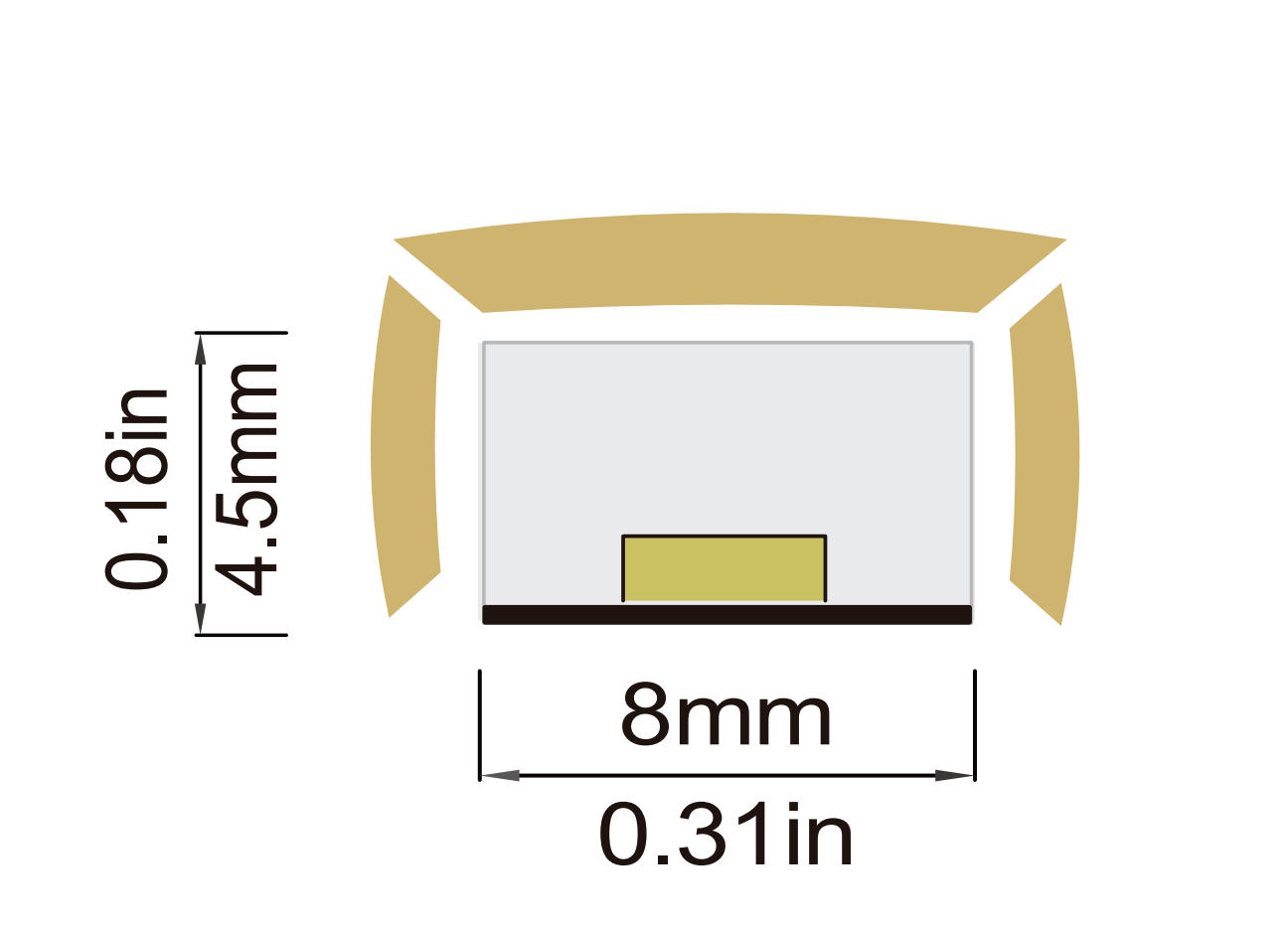

  • Cross section:8x4mm(WxH).
  • Single color 2700-6500K and red/green/blue/yellow optional;
  • DC24V and constant Voltage design, max run 10M from one end without noticeabe voltage drop;
  • Reel length is 5M/10M optional, and the customized length is available according to customer project;
  • Front entry only with B/R cable or RNF cable from one side or both side;
  • Top Bending (vertical bending) and the minimum bending diameter is 50mm
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
