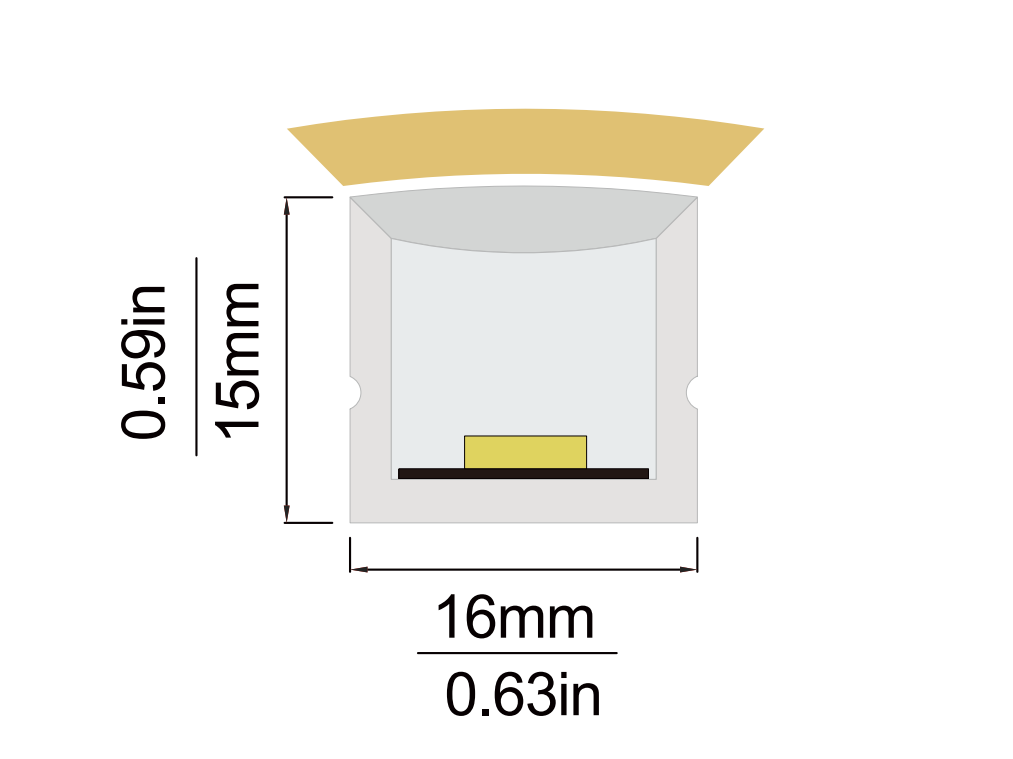

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is W16*H15mm, Top bending(Vertical bending) and min bending diameter 200mm, can be installed into water in 3M, DC24V constant voltage design, max run 5M from one end without voltage drop, RGB color changing and the color&brightness can be controlled by the RF or 2.4G RGB controllers, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FP-IRG070C-L |
|---|---|
| SMD Type | Epistar SMD5050 |
| Led Qty(pcs/M) | 70 LED/M |
| PCB Width | 12mm |
| Input voltage | DC24V |
| Current/M | 0.5A/M |
| Power/M | 12W/M |
| Lumen/M | 480LM/M |
| Efficiency(LM/W) | 40LM/W |
| CCT | RGBW(W=2700K/3000K/4000K/5000K/6000K) |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*15mm(W*H) |
| IP Rating | IP68 |
| Beam Angle | 120° |
| Cutting Unit | 50mm |
| Length | 5M/Roll |
| Max Run | 10M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 5 Years |
| Working hour | 50000h |
| Working temperture | -45℃~+70℃ |
