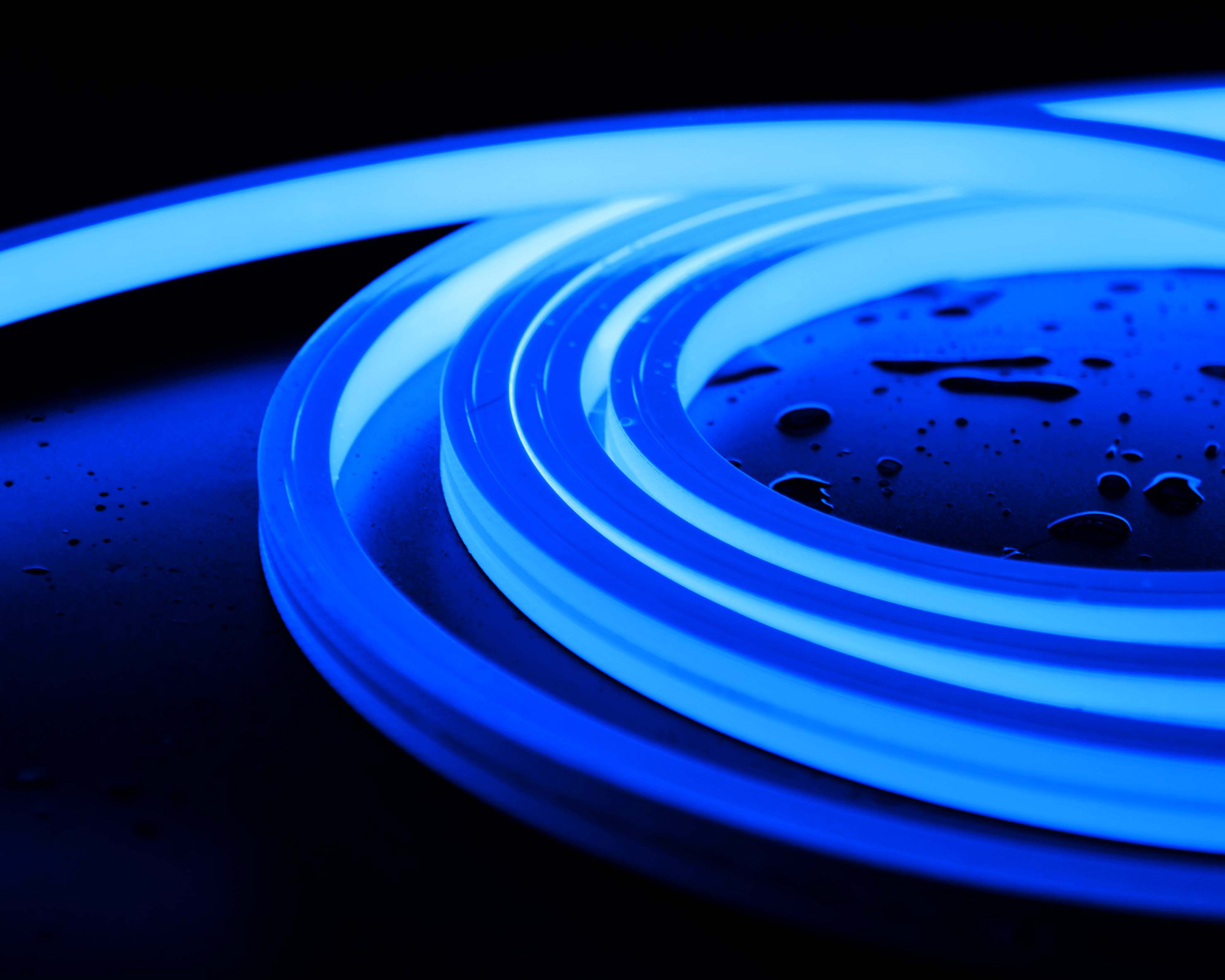

The recessed led neon flex is the ideal solution for the indoors lighting project such as accent lighting, cove lighting, corridor lighting and so on. Cross section size is W16*H15mm, top or vertical bending with min bending 200mm, IP44 with integrated silicone molding extrusion, max run 5M from one end without noticeable voltage drop, RGB color changing:the color and brightness could be controlled from by the controller., standard length 5M/reel and customized length optional, front entry ONLY with 30CM B/R cable from one or both end.
| Model No. | FN-BRB072F-E-R |
|---|---|
| SMD Type | SMD5050 RGB |
| Led Qty(pcs/M) | 72LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 419LM/M |
| Efficiency(LM/W) | 42LM/W |
| CCT | RGB Color Changing |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*15mm(W*H) |
| IP Rating | IP44 |
| Beam Angle | 120° |
| Cutting Unit | 24V:83.33mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/10M/roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25℃-60℃ |
