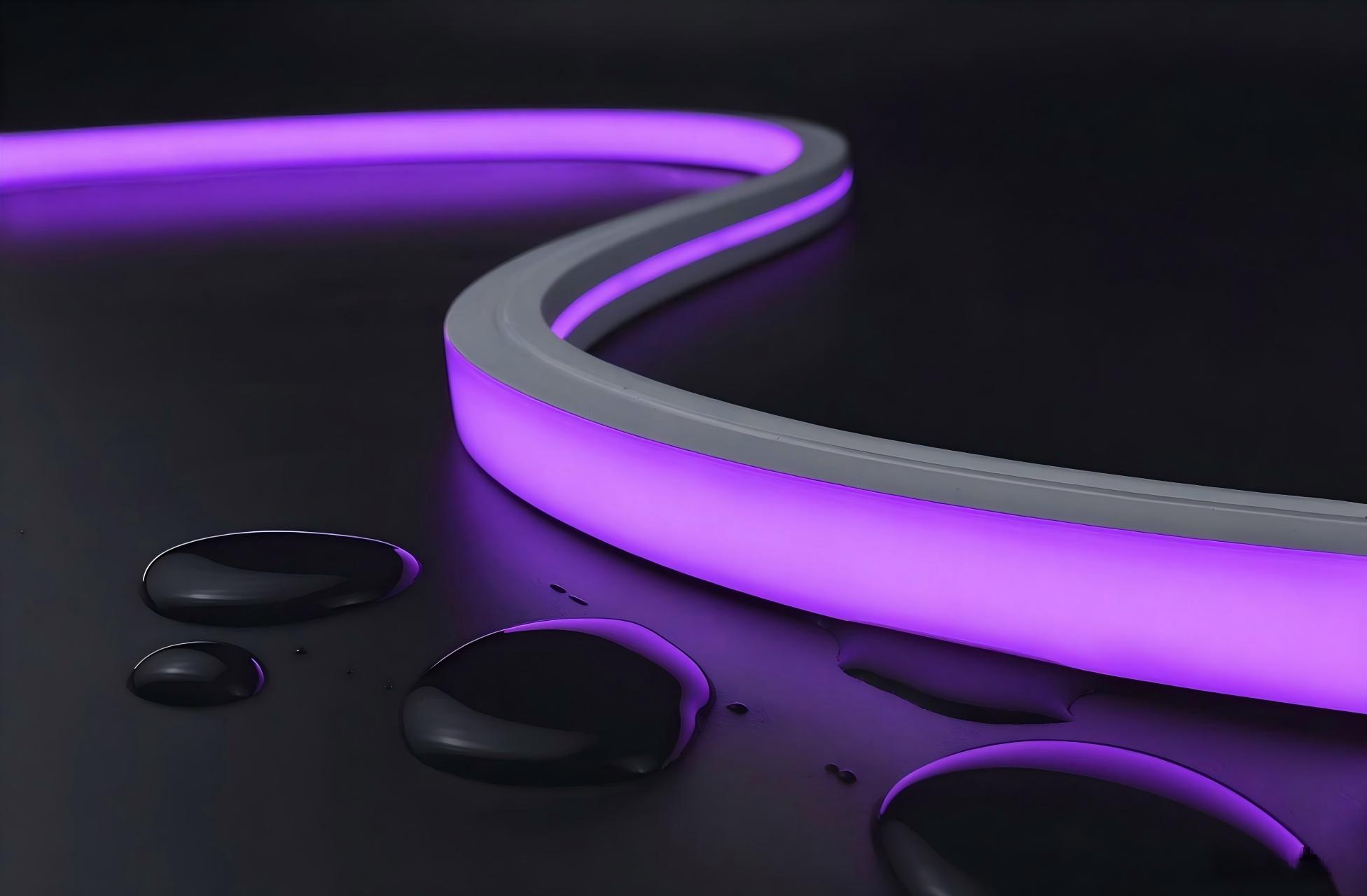

The silicone solid extrusion IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is 16x15mm, Top bending(Vertical bending) and min bending diameter 200mm, DC24V constant voltage design, max run 5M from one end without voltage drop, RGB color changing and the color&brightness can be controlled by the RF or 2.4G RGB controllers, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FN-GRG072F-E1 |
|---|---|
| SMD Type | Epistar SMD5050 |
| Led Qty(pcs/M) | 72LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 245lm/M |
| Efficiency(LM/W) | 24.5lm/W |
| CCT | RGB Color Changing |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*15mm(W*H) |
| IP Rating | IP68 |
| IK Rating | IK10 |
| Beam Angle | 120° |
| Cutting Unit | 24V:83.33mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 5 Years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
