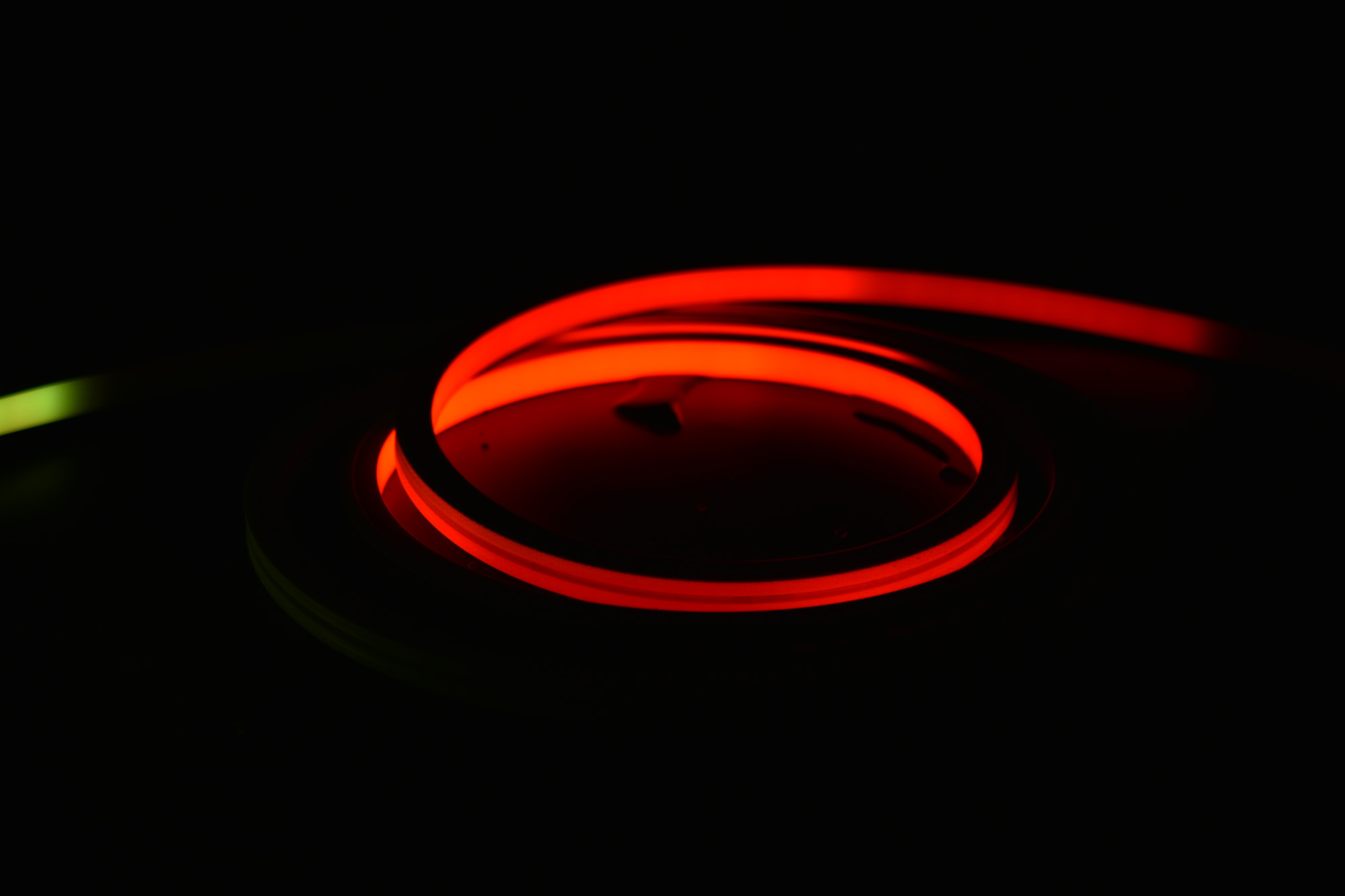

The led neon flex RGB color changing, cross section is width 16mm and height 15mm, 3D bending(top and side bending) with min bending radius 200mm, max run length 5M from one end without voltage drop, consist of SMD4040 3IN1 RGB 120LED/M, max power 10W/M 280LM/M 28LM/M, standard length 5M/reel and customized length optional, cable entry from top/side/Bottom entry, silicone endcap or integrated injection endcap(by machine) is optional.
| Model No. | FN-GRB120F-Q |
|---|---|
| SMD Type | SMD4040 RGB |
| Led Qty(pcs/M) | 120LED/M |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| PCB Width | 10mm |
| Power/M | 10W/M |
| Lumen/M | 280lm/M |
| Efficiency(LM/W) | 28LM/W |
| CCT | RGB Color Changing |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*15mm(W*H) |
| Beam Angle | 120° |
| Cutting Unit | 24V:50mm |
| IP Rating | IP67 Silicone Extrusion |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 35000hours |
| Working temperture | -20°C~+45°C |
