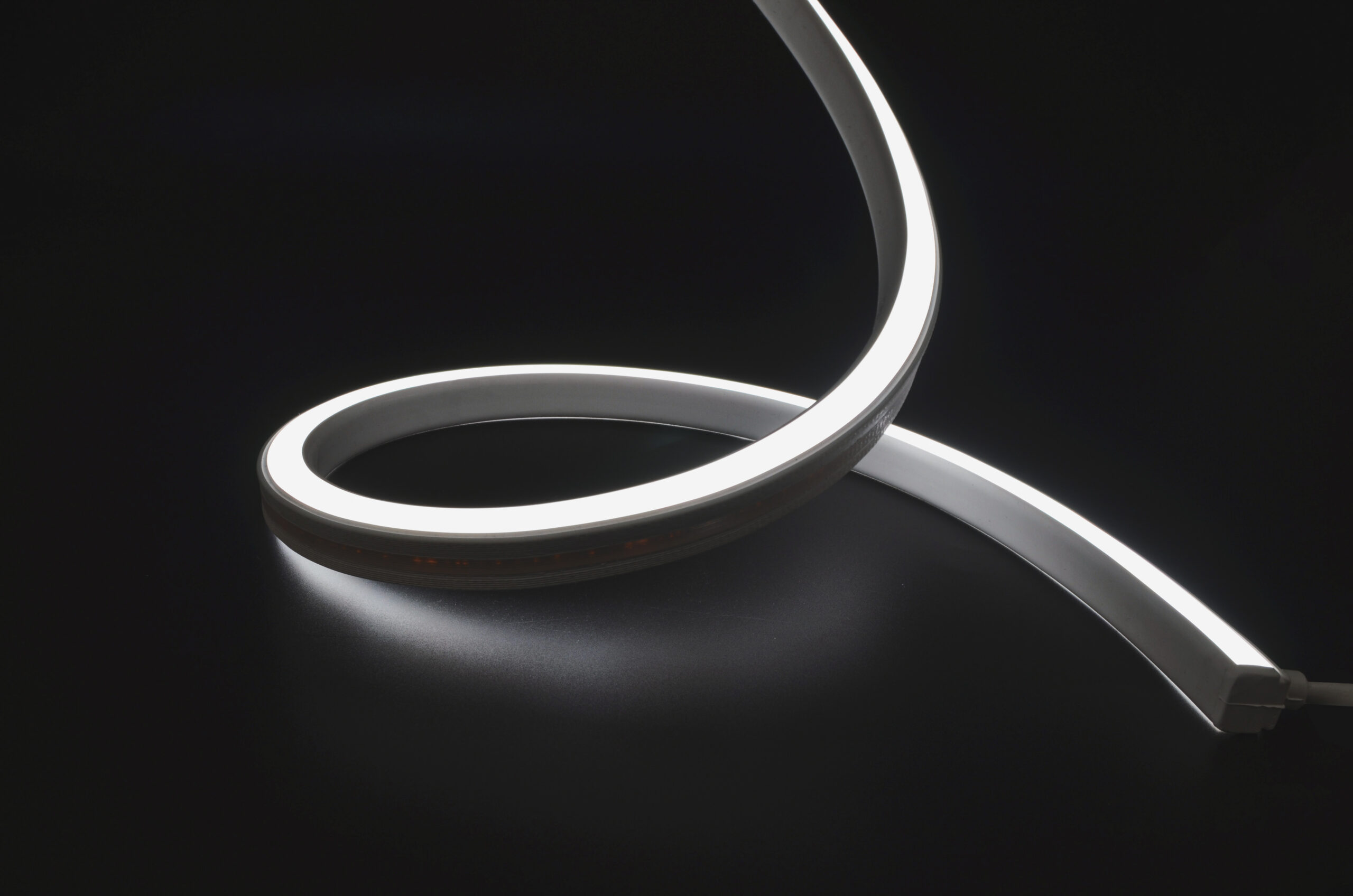

This led neonflex with cross section W16*H15mm, Double-sided emitting, RGB color changing, top or vertical bending, with min bending radius 200mm, IP65 Rating, DC24V-max run length 5M from one end, 5M/reel and customized length optional, consist of Epistar SMD5050 RGB 72LED/M, 15W/M 490LM/M 33LM/W, front and bottom entry with integrated endcap.
| Model No. | FN-GRB072F-E-D |
|---|---|
| SMD Type | SMD5050 RGB |
| Led Qty(pcs/M) | 72LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.625A/M |
| Power/M | 15W/M |
| Lumen/M | 490LM/M |
| Efficiency(LM/W) | 33LM/W |
| CCT | RGB Color Changing |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*15mm(W*H) |
| IP Rating | IP65 |
| Beam Angle | 120° |
| Cutting Unit | 24V:83.33mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/10M/roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25℃-60℃ |
