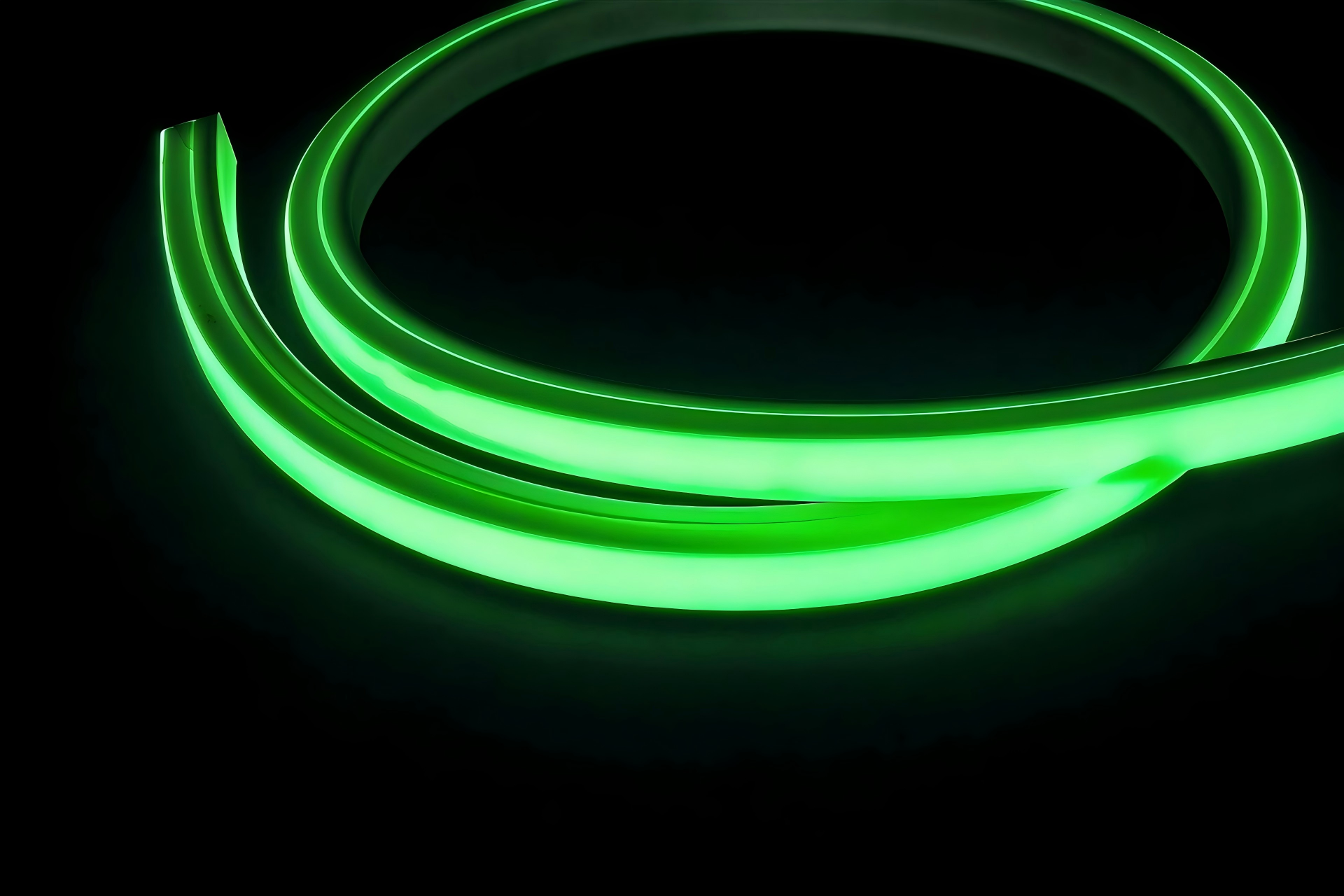

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project. IK08 rating. Cross section is 14x14mm, Top bending: (vertical bending, min bending radium 150mm, can be installed into water in 3M, DC24V constant voltage design, max run 7.5M from one end without voltage drop, rgb color changing: the brightness and color controlled by the various type of rgb controller, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FP-CRG120F-N |
|---|---|
| SMD Type | SMD3535 3IN1 RGB |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 8mm |
| Input voltage | DC24V |
| Current/M | 0.5A/M |
| Power/M | 12W/M |
| Lumen/M | 347lm/M |
| Efficiency(LM/W) | 28.9lm/W |
| CCT | RGB Color Changing |
| CRI(Ra) | — |
| Cross Section(W*H) | 14x14mm(WxH) |
| IP Rating | IP68 |
| IK Rating | IK08 |
| Beam Angle | 120° |
| Cutting Unit | 50mm |
| Length | 5M/Roll |
| Max Run | 7.5M from one end |
| Standard Packing | 5M/10M/roll |
| Warranty | 5 Years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
