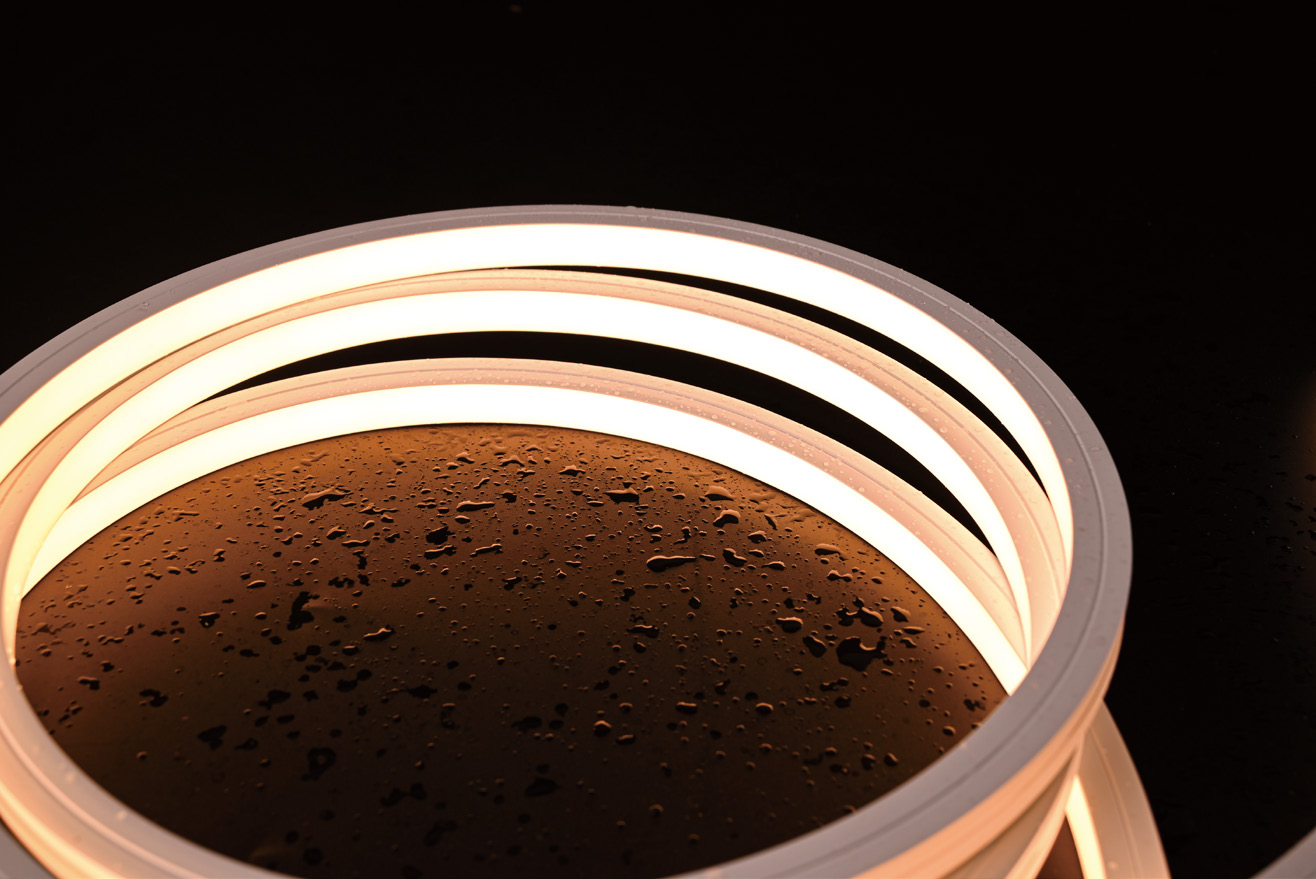

RGBW 12x12mm Top Bending IP68 Led Neon Flex

Category Tags , , , , ,

This led neon flex is RGBW color changing, cross section is 12*12mm. , IP68 rating, top view and vertical bending, minimum bending diameter is 150mm, DC24V, max run 5M from one end,  front cable entry. RGBW color changing and color range:RGB+2700K/3000K/4000K/5000K/6000K optiomal.

Additional information

Model No.

FP-CRW240F-B
Input voltage

DC24V
Power/M

14 W/M
Lumen/M

590LM/M
SMD Type

SMD3535+SMD3014
Led Qty(pcs/M)

240LED/M
IP Rating

IP68
Cutting Unit

50mm
PCB Width

8mm
Cross Section(W*H)

12*12mm(W*H)
CCT

RGBW(W=2700K/3000K/4000K/5000K/6000K)
CRI(Ra)

—
Beam Angle

120°
Standard Packing

5M/Roll
Efficiency(LM/W)

43LM/W
Warranty

5 Years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Powered by SMD3535 RGB+SMD3014 240LED/M and efficiency up to 43LM/W;
  • PU(Polyurethane) encapsulation IP68 rating and applied to the underwated project by depth 3-5.8M;
  • Top view and beam angle is 120degree with dot-free and soft emitting;
  • Cross section is 12x12mm;
  • The color is RGBW color changing and controlled by the RF or 2.4 RGBW controller;
  • DC24V and constant current design, max run 5M from one end without noticeabe voltage drop;
  • Reel length is 5M/10M optional, and the customized length is available according to customer project;
  • Waterproof male&female connector such as IP65/67/68 is available, and famous connector such as JST is can be provided;
  • Vertical bending and the minimum bending diameter is 150mm;
  • 5Years warranty;
