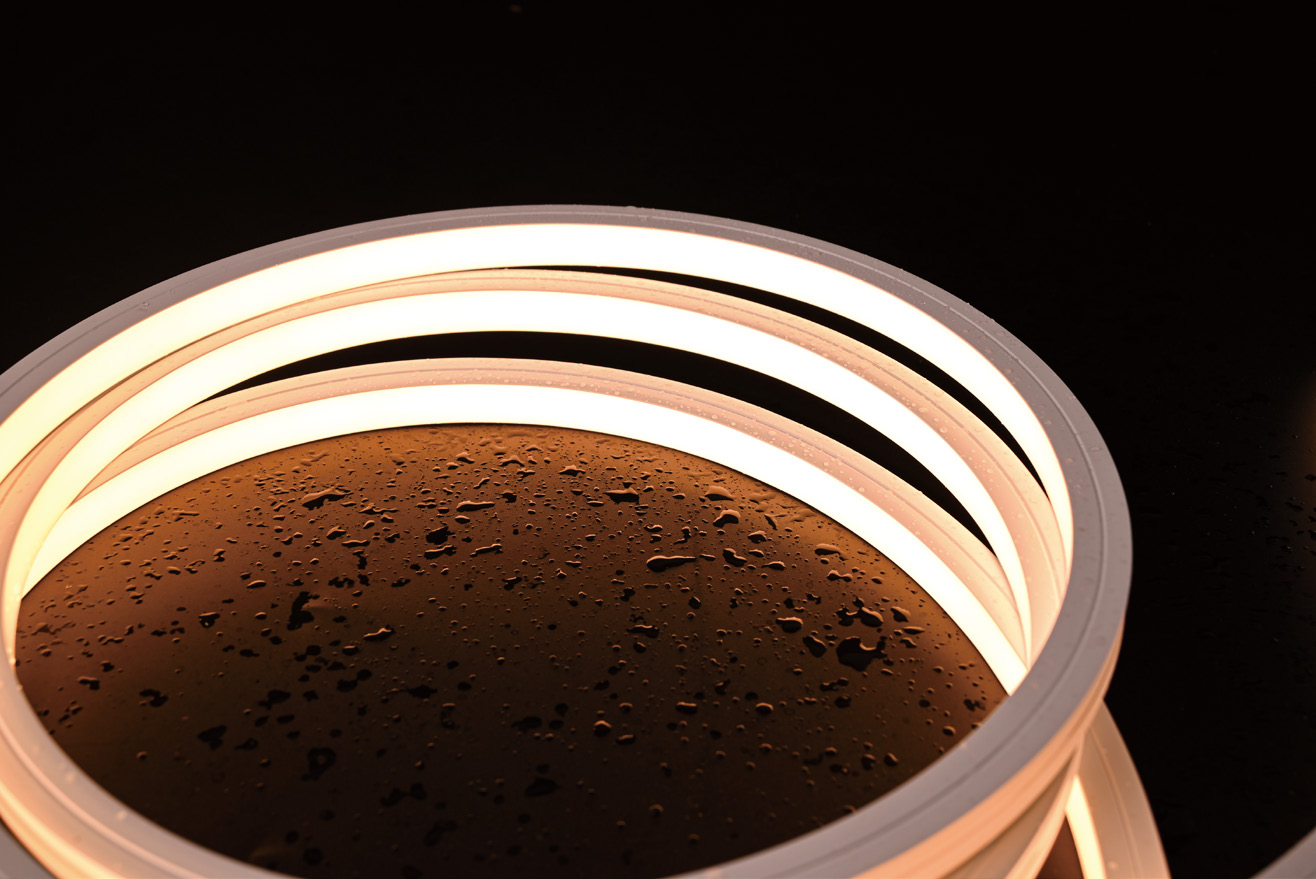

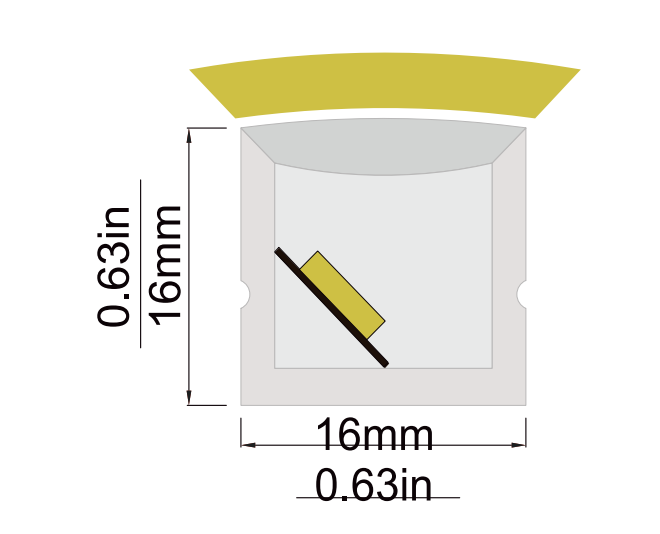

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is W16*H16mm, 3D bending(Top and side bending) with min bending radius 200mm, can be installed into water in 3M, DC24V constant voltage design, max run 5M from one end without voltage drop, 2700-6500K, red,green,blue,yellow is optional, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FP-GXX120F-L |
|---|---|
| Input voltage | DC24V |
| Power/M | 10W/M |
| Lumen/M | 900LM/M |
| Efficiency(LM/W) | 90LM/W |
| SMD Type | Lumileds SMD2835 |
| Led Qty(pcs/M) | 140LED/M |
| IP Rating | IP68 |
| Cutting Unit | 50mm |
| PCB Width | 8mm |
| Cross Section(W*H) | 16*16mm(W*H) |
| CCT | 2700-6500K/Red/Green/Blue/Yellow/Pink/Orange |
| CRI(Ra) | 90Ra |
| Beam Angle | 120° |
| Standard Packing | 5M/10M/roll |
| Warranty | 5 Years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
