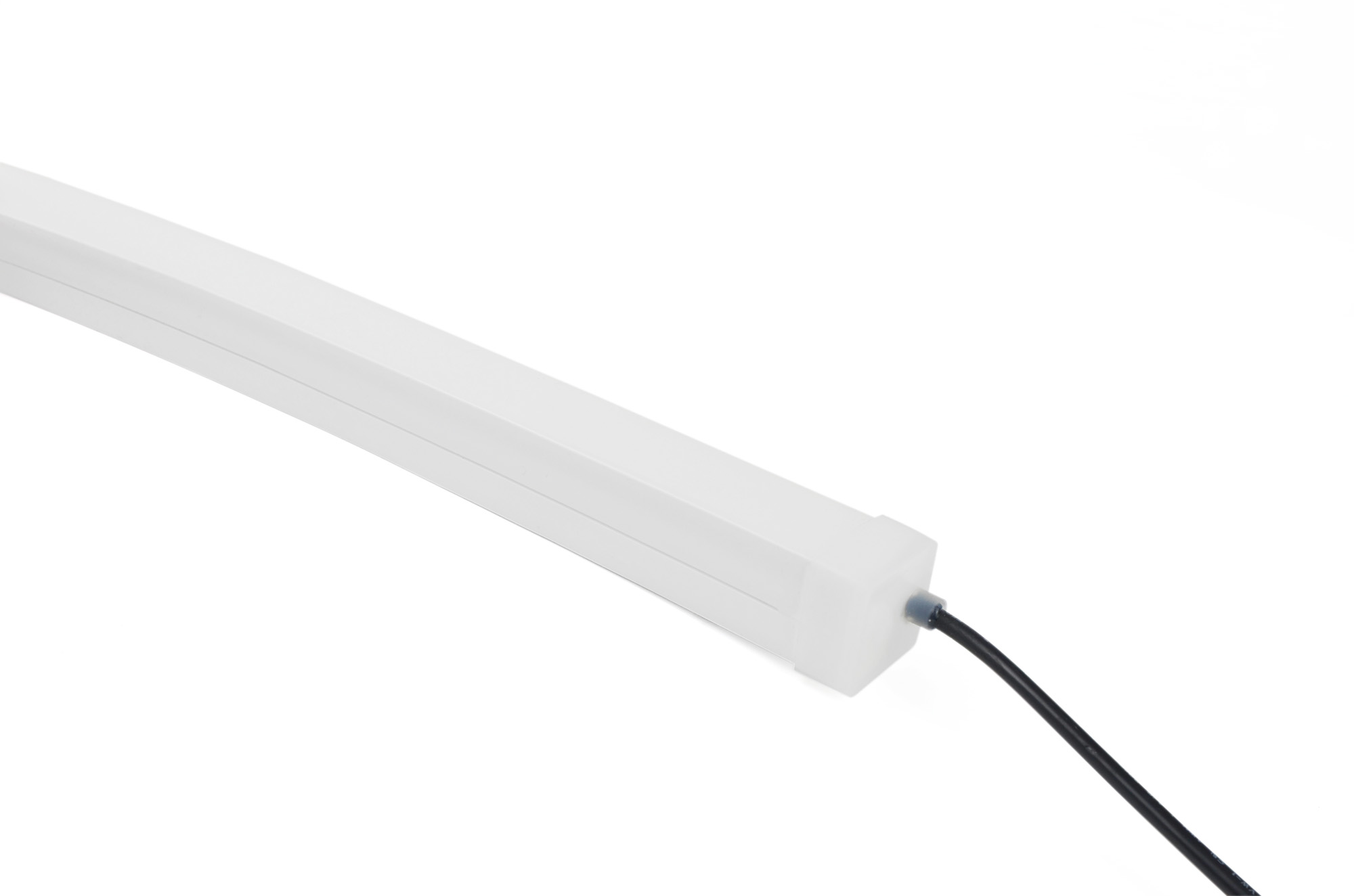

The side bending led neon flex with min bending 500mm, cross section is W30*H32mm, Consist of Epistar SMD5050 RGBW 72LED/M, 15W/M,542LM/M 36LM/W, IP67 with integrated silicone extrusion molding process, silicone endcap and front entry ONLY. Constant voltage design and max run length 5M from one end without noticeable voltage drop, max length 5M/roll, RGB color changing and the color & brightness could be controlled by the 0-10V/DALI/2.4G/DMX controllers.
| Model No. | FN-GRW072F-Z |
|---|---|
| SMD Type | SMD5050 4IN1 RGBW |
| Led Qty(pcs/M) | 72LED/M |
| Input voltage | DC24V |
| Current/M | 0.625A/M |
| Power/M | 15W/M |
| Lumen/M | 542LM/M |
| Efficiency(LM/W) | 36LM/W |
| CCT | RGBW(W=2700K/3000K/4000K/5000K/6000K) |
| CRI(Ra) | — |
| Cross Section(W*H) | 30*32mm(W*H) |
| IP Rating | IP67 Silicone Extrusion |
| Cutting Unit | 24V:83.33mm |
| Beam Angle | 120° |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Length | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
