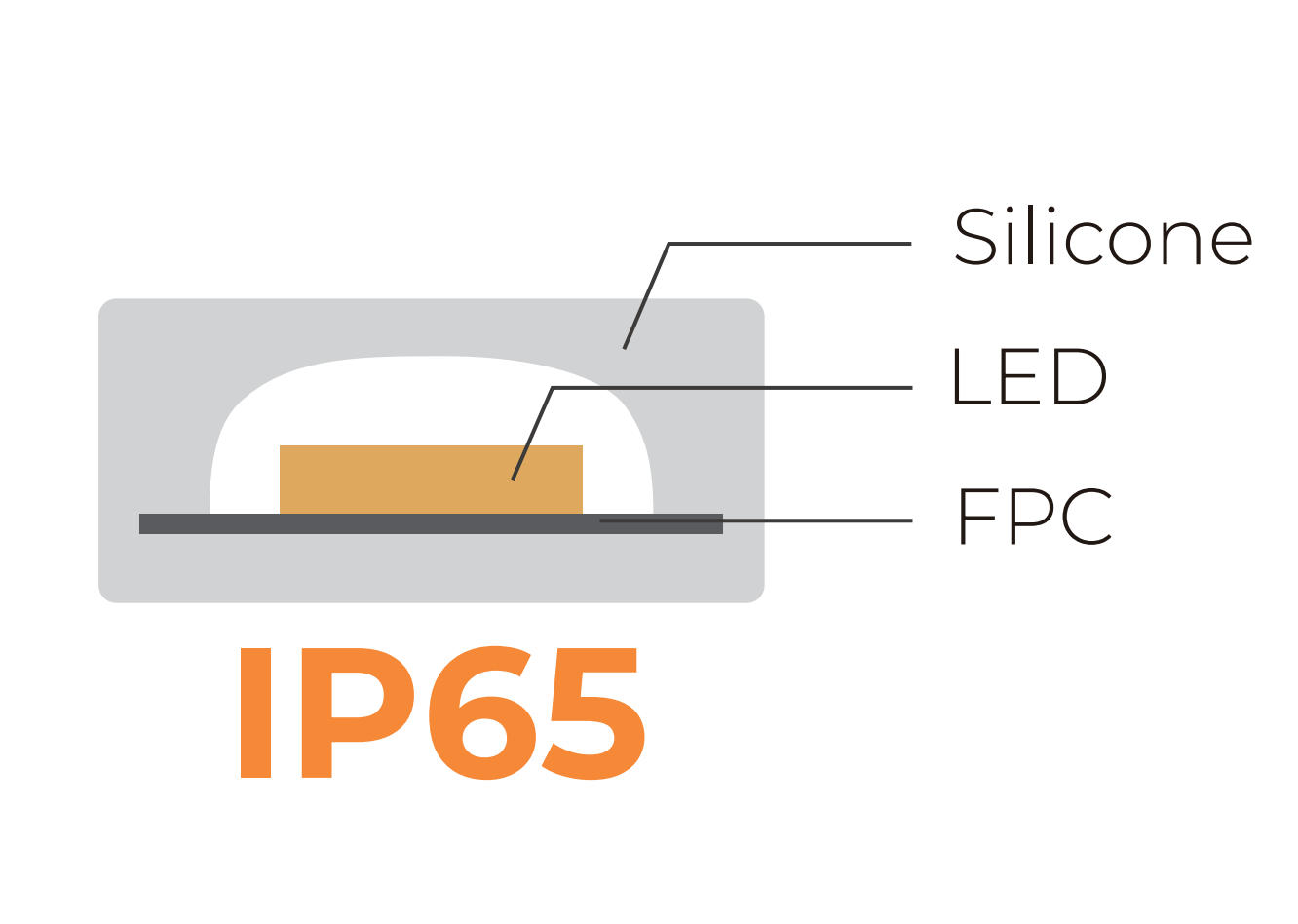

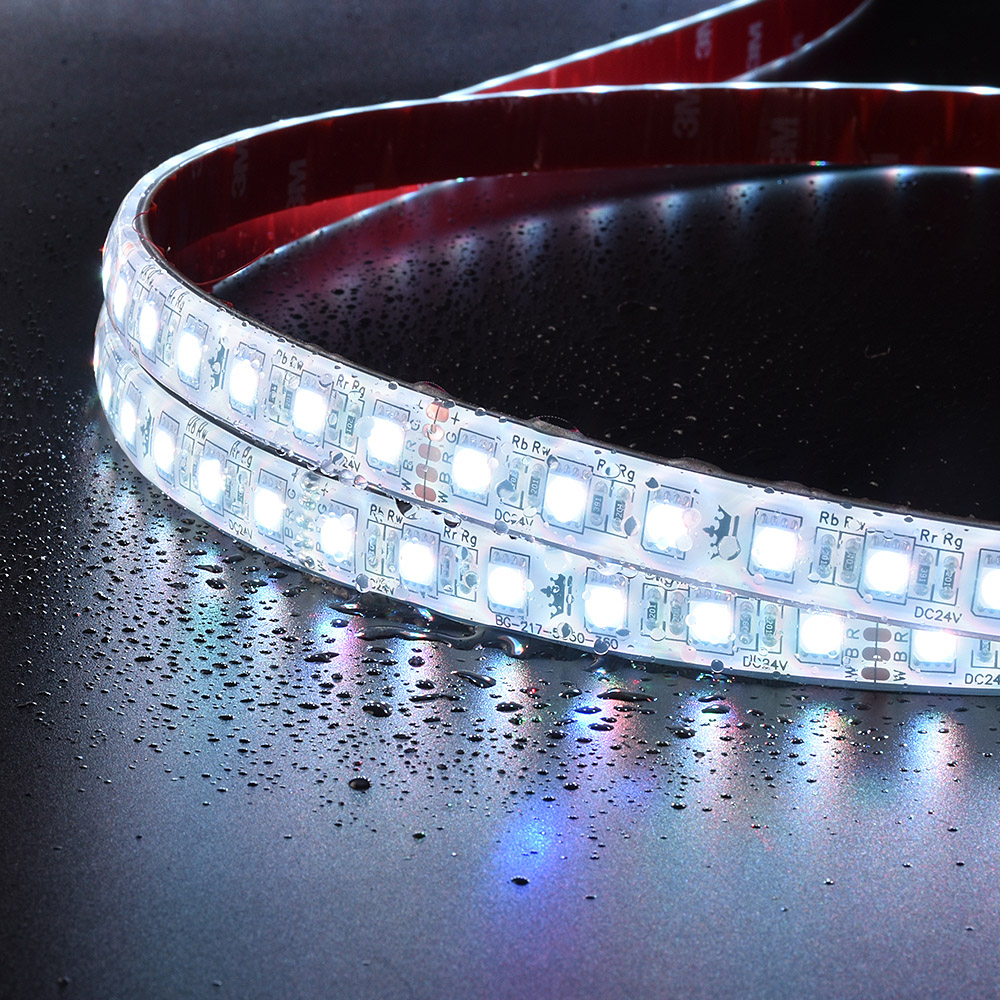

This led strip is special design for the suana room lighting:ambient temperature -25-100℃. Powered by high right SMD5050 RGBW 4IN1 60LED/M, power 10W/M , 722lm/M and 72.2lm/W, DC24V constant voltage design and max run length 5M from one end without noticeable voltage drop, IP65 rating by integrated silicone extrusion, standard length in 5M/reel and customized length optional, front entry. RGBW color changing: W:2700K/3000K/4000K/6500K optional.
| Model No. | AB-BRW060F-SA |
|---|---|
| SMD Type | SMD5050 4IN1 RGBW |
| Led Qty(pcs/M) | 60LED/M |
| PCB Width | 12mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 722lm/M |
| Efficiency(LM/W) | 72.2lm/W |
| CCT | RGBW(W=2700K/3000K/4000K/6500K) |
| CRI(Ra) | 80Ra(W only) |
| Cross Section(W*H) | 14*5mm(W*H) |
| IP Rating | IP65 |
| Beam Angle | 120° |
| Cutting Unit | 100mm(24V) |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3-5years |
| Working hour | 50000h |
| Working temperture | -25℃~105℃ |
