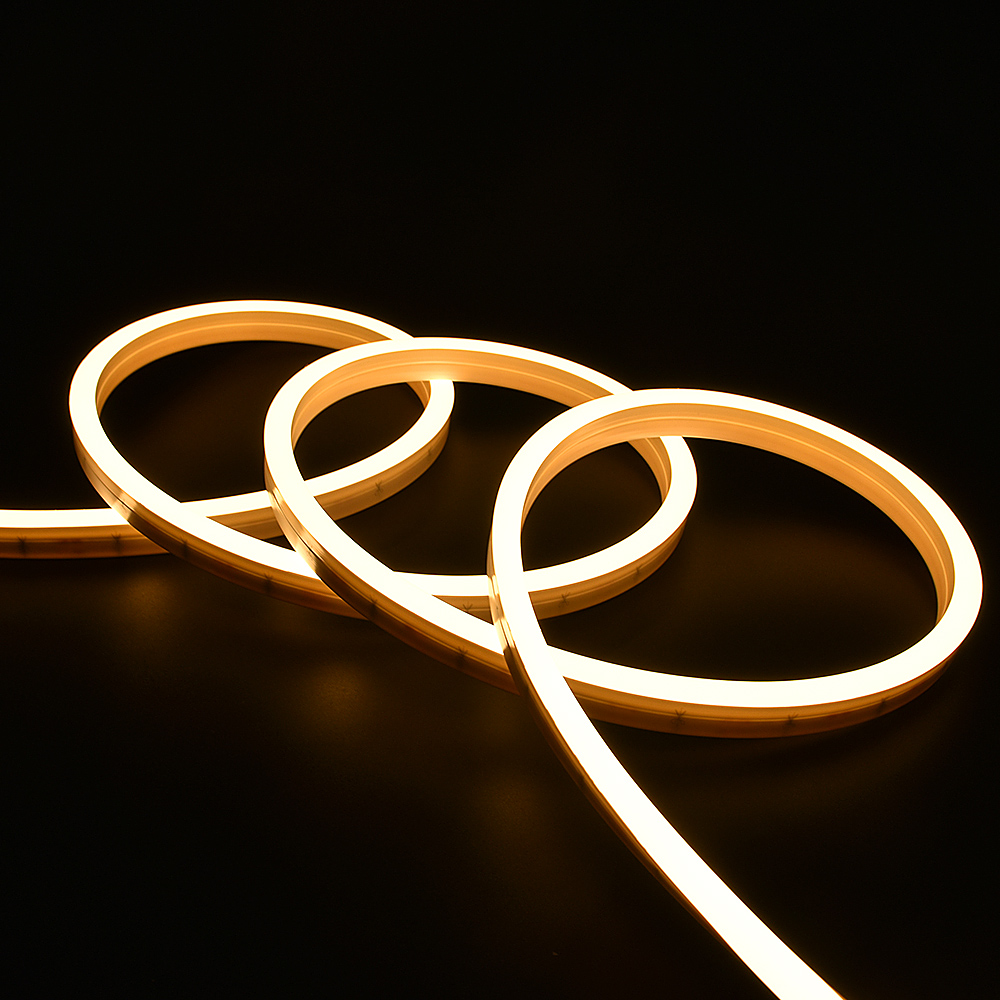

Single Color 12x20mm Trio View Side Bending IP68 PU Led Neon Flex

Single Color 12x20mm Trio View Side Bending IP68 PU Led Neon Flex
Single Color 12x20mm Trio View Side Bending IP68 PU Led Neon Flex - Image 2
Category Tags , , , , , ,

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, trio-view: three-side emitting design and beam angle 180°. Cross section is 12x20mm, Side bending(horizontal bending) with min bending radius 150mm, can be installed into water in 3M, DC24V constant voltage design, max run 15M from one end without voltage drop, 2700-6500K, red,green,blue,yellow is optional, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FP-GXX140F-O
SMD Type

Lumileds SMD2835
Led Qty(pcs/M)

140LED/M
PCB Width

10mm
Input voltage

DC24V
Current/M

0.5A/M
Power/M

12W/M
Lumen/M

855lm/M
Efficiency(LM/W)

71.3lm/W
CCT

2700-6500k/Red/Green/Blue/Yellow/Pink/Purple/Orange
CRI(Ra)

90Ra
Cross Section(W*H)

12*20mm(W*H)
IP Rating

IP68
IK Rating

IK08
Beam Angle

180°
Cutting Unit

50mm
Length

5M/Roll
Max Run

15M from one end
Standard Packing

5M/Roll
Warranty

5 Years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Special design for the swimming pool/marine lighting/underwater/facade lighting project.
  • Powered by 140LED/M Lumileds SMD2835 and lighting efficiency up to 71.3lm/W;
  • Trio-view: three-side emitting design and beam angle 180°.
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • PU(Polyurethane) encapsulation IP68 rating and applied to the underwated project by depth 3-5.8M( IEC 60598-1:2020).
  • Side bending(horizontal bending) with min bending radius 150mm.
  • Cross section: 12x20mm.
  • Single color: 2700-6500K and red/green/blue/yellow optional;
  • DC24V: constant Voltage design, max run 15M from one end without noticeabe voltage drop;
  • Reel length: 5M/10M optional, and the customized length is available based on customer project;
  • Front/side/bottom entry with RNF cable or waterproof  connector from one side or both side;
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
  • 5Years warranty
