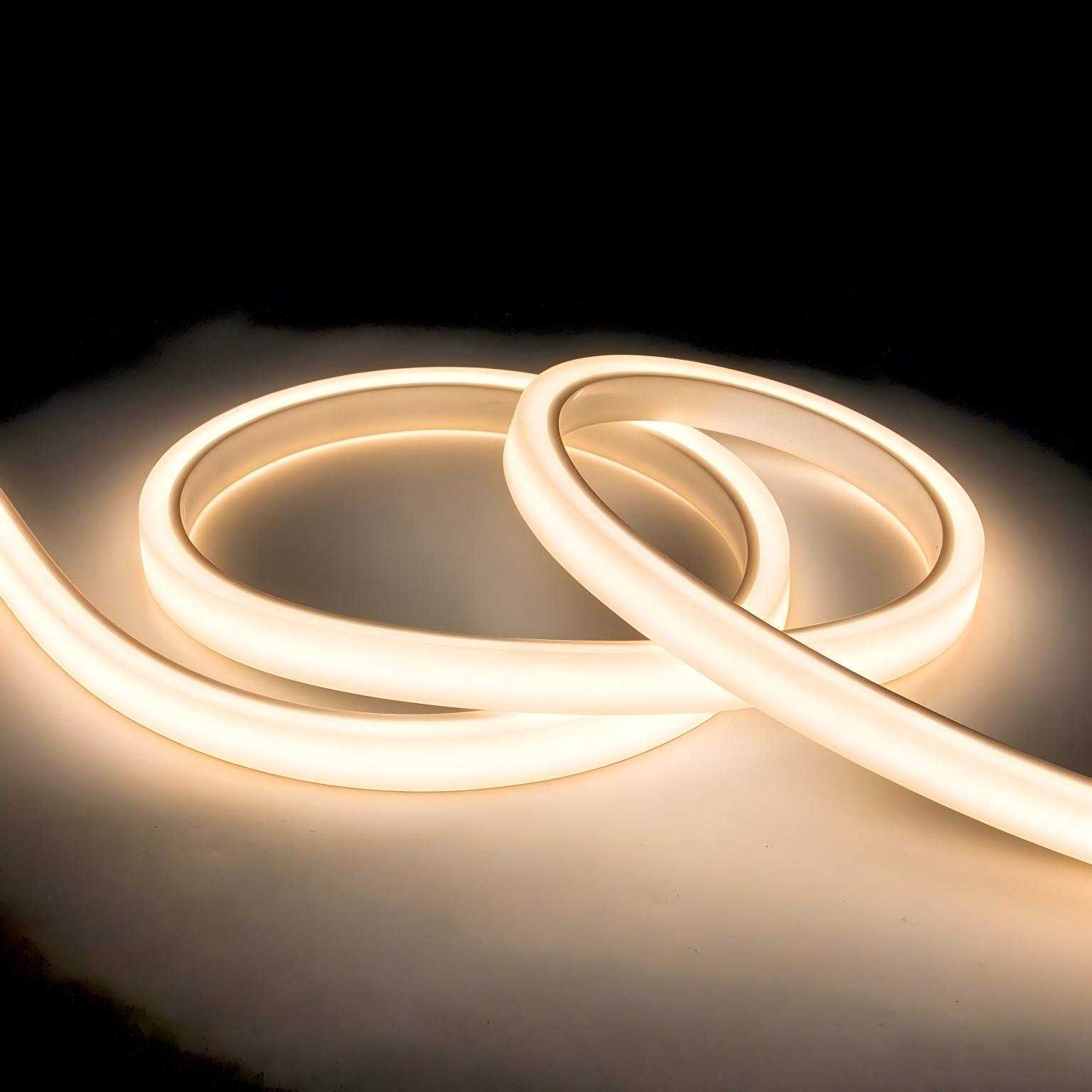

Single Color 14x12mm Trio View Top Bending PU IP68 Led Neon Flex

Single Color 14x12mm Trio View Top Bending PU IP68 Led Neon Flex
Single Color 14x12mm Trio View Top Bending PU IP68 Led Neon Flex - Image 2
Category Tags , , , , ,

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is 14x14mm, Trio-view: three-side emitting design and beam angle 180°. Top Bending(Vertical) with min bending radius 150mm, can be installed into water in 3M, DC24V constant voltage design, max run 15M from one end without voltage drop, 2700-6500K, red,green,blue,yellow is optional, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FP-GXX240F-H
SMD Type

Lumileds SMD2835
Led Qty(pcs/M)

240LED/M
PCB Width

10mm
Input voltage

DC24V
Current/M

0.5A/M
Power/M

12W/M
Lumen/M

840LM/M
Efficiency(LM/W)

70LM/W
CCT

2700-6500k/Red/Green/Blue/Yellow/Pink/Purple/Orange
CRI(Ra)

90Ra
Cross Section(W*H)

14*12mm(W*H)
IP Rating

IP68
IK Rating

IK08
Beam Angle

180°
Cutting Unit

25mm
Length

5M/Roll
Max Run

15M from one end
Standard Packing

5M/Roll
Warranty

5 Years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Powered by 240LED/M Lumileds SMD2835 and lighting efficiency up to 70lm/W;
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • PU(Polyurethane) encapsulation IP68 rating and applied to the underwated project by depth 3-5.8M( IEC 60598-1:2020).
  • Trio-view: three-side emitting design and beam angle 180°.
  • Top Bending(Vertical) with min bending radius 150mm.
  • Cross section: 14x12mm.
  • Single color: 2700-6500K and red/green/blue/yellow optional;
  • DC24V: constant Voltage design, max run 15M from one end without noticeabe voltage drop;
  • Reel length: 5M/10M optional, and the customized length is available based on customer project;
  • Front entry only: RNF or waterproof connector from one side or both side;
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
  • 5Years warranty
  • Special design for the swimming pool/marine lighting/underwater/facade lighting project.
