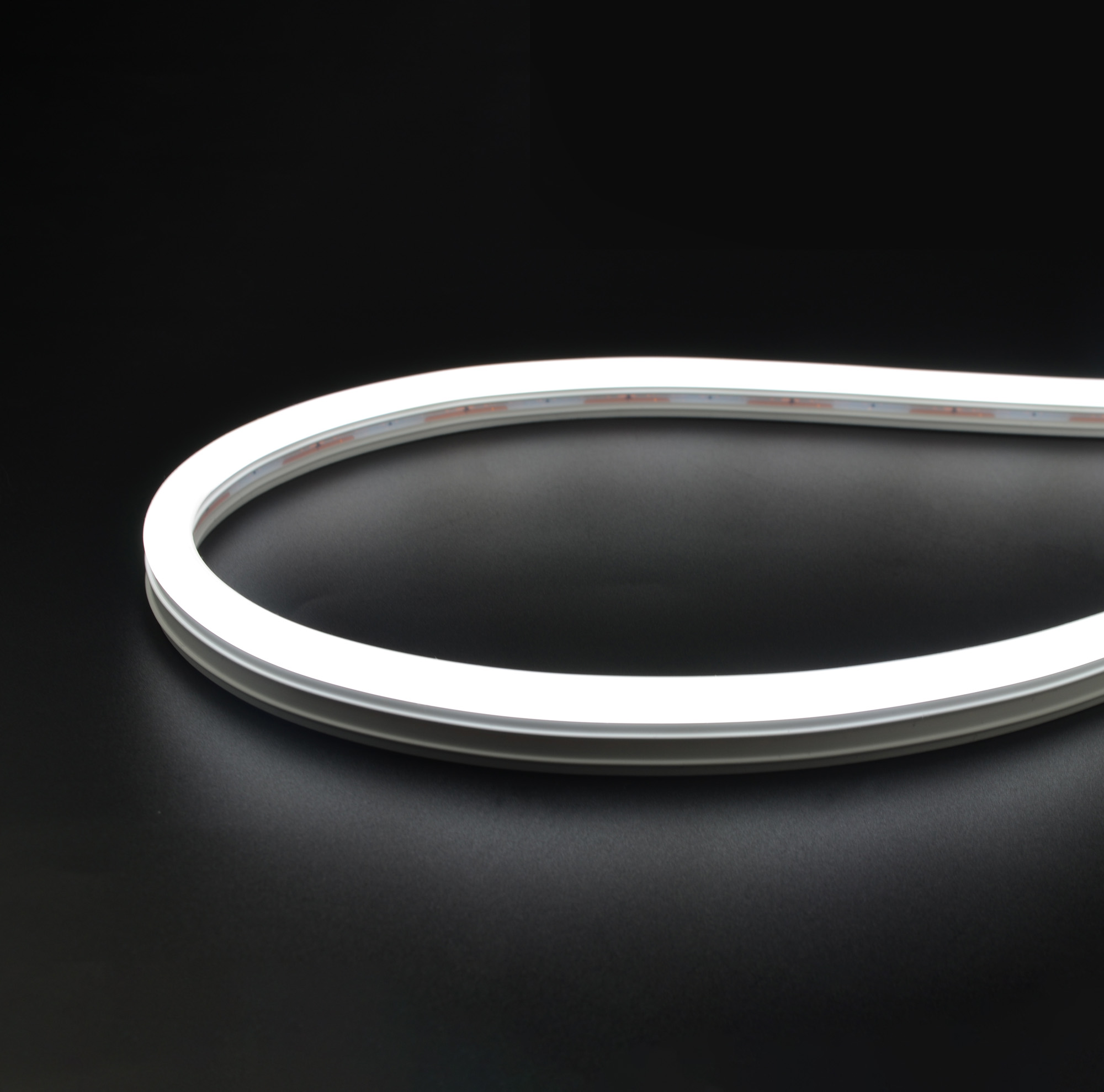

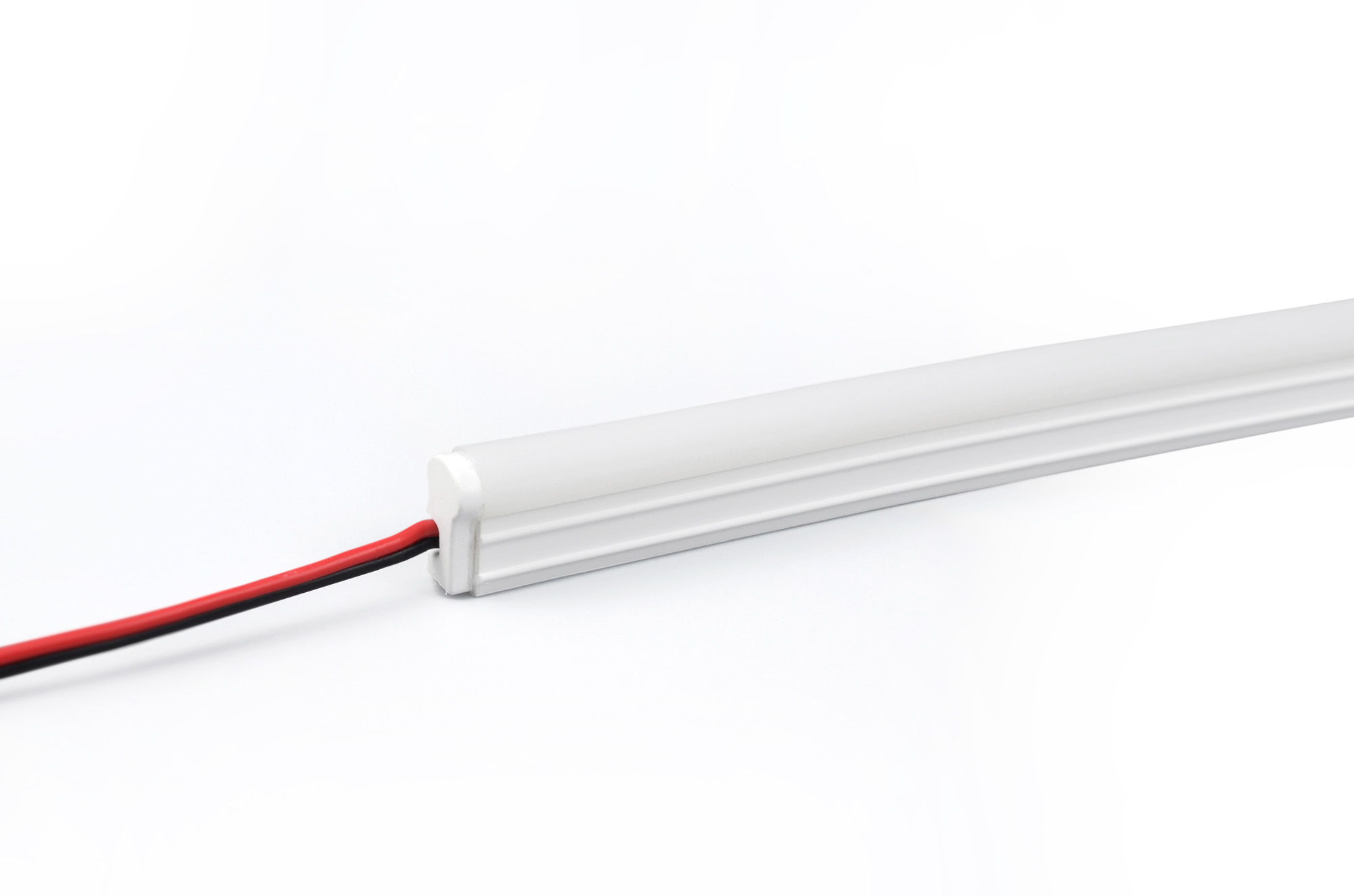

The recessed led neon flex is the ideal solution for the indoors lighting project such as accent lighting, cove lighting, corridor lighting and so on. Cross section size is W8*H17mm, beam angle up to 270degree, side or horizontal bending with min bending 100mm, IP44 with integrated silicone molding extrusion, max run 13M from one end without noticeable voltage drop, single color 2700K-6500K and red/green/blue/yellow/pink/orange, standard length 5M/reel and customized length optional, front entry ONLY with 30CM B/R cable from one or both end.
| Model No. | FN-GXX120F-R1-MNI |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 8mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 405LM/M |
| Efficiency(LM/W) | 40.5lm/W |
| CCT | 2700-6500K/Red/Green/Blue/Yellow/Pink/Orange |
| CRI(Ra) | 90Ra |

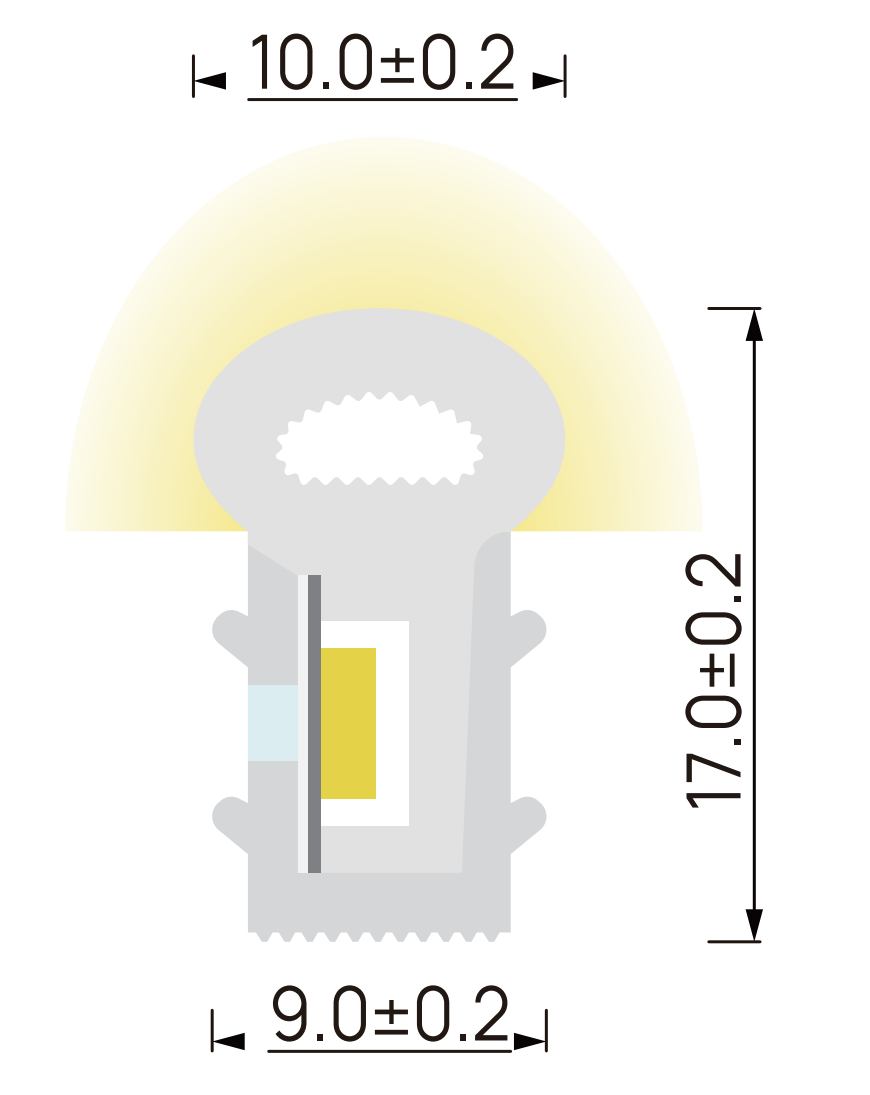

| Cross Section(W*H) | 8*17mm(W*H) |
| IP Rating | IP44 |
| Beam Angle | 270° |
| Cutting Unit | 50mm |
| Length | 5M/Roll |
| Max Run | 13M from one side |
| Standard Packing | 5M/10M/roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25℃-60℃ |
