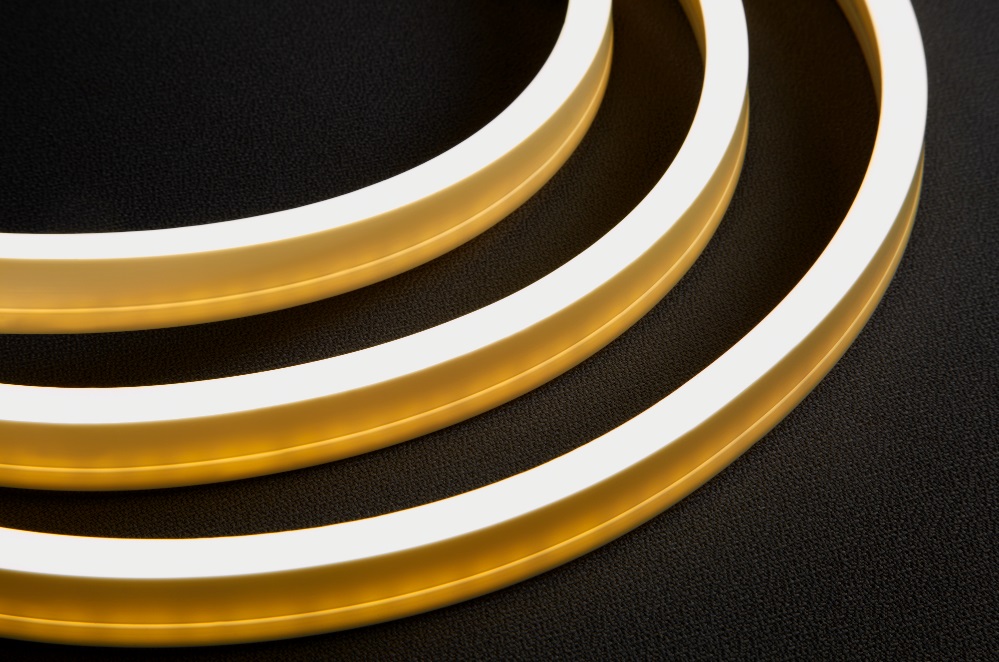

Single Color Side Bending 10x10mm PU IP68 Led Neon Flex

Single Color Side Bending 10x10mm PU IP68 Led Neon Flex
Single Color Side Bending 10x10mm PU IP68 Led Neon Flex - Image 2
Category Tags , , , , , , ,

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project. IK08  rating. Cross section is 10x10mm, side bending: (horizontal bending, min bending radium 100mm, can be installed into water in 3M, DC24V constant voltage design, max run 12M from one end without voltage drop, 2700-6500K, red,green,blue,yellow is optional, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FP-GXX120F-G
SMD Type

Lumileds SMD2835
Led Qty(pcs/M)

120LED/M
PCB Width

8mm
Input voltage

DC24V
Current/M

0.41A/M
Power/M

10W/M
Lumen/M

635lm/M
Efficiency(LM/W)

64LM/W
CCT

2700K-6500K/Red/Green/Blue/Yellow
CRI(Ra)

90Ra
Cross Section(W*H)

10*10mm(W*H)
IP Rating

IP68
IK Rating

IK08
Beam Angle

120°
Cutting Unit

50mm
Length

5M/Roll
Max Run

12M from one end
Standard Packing

5M/10M/roll
Warranty

5 Years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Special design for the swimming pool/marine lighting/underwater/facade lighting project.
  • IK08 Rating.
  • Powered by Lumileds SMD2835 120LED/M and efficacy to 64lm/W.
  • Completely dot-free and homogeneous lighting.
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • PU(Polyurethane) encapsulation IP68 rating and applied to the underwated project by depth 3-5.8M( IEC 60598-1:2020).
  • Side bending: (horizontal bending), min bending radium 100mm.
  • Cross section:10x10mm(WxH).
  • Single color: 2700-6500K and red/green/blue/yellow optional.
  • DC24V: constant Voltage design, max run 12M from one end without noticeabe voltage drop;
  • Reel length is 5M/10M optional, and the customized length is available according to customer project.
  • Front/side/bottom entry:  RNF cable or waterproof connector  from single or double ends.
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
