Single Color Side Bending 6x12mm PU IP68 Led Neon Flex

Single Color Side Bending 6x12mm PU IP68 Led Neon Flex
Single Color Side Bending 6x12mm PU IP68 Led Neon Flex - Image 2
Category Tags , , , , ,

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is W6*H12mm, side-view and side bending(Horizontal bending) with min bending radius 60mm, can be installed into water in 3M, DC24V constant voltage design, max run 12M from one end without voltage drop, 2700-6500K, red,green,blue,yellow is optional, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FP-GXX120F-J
Input voltage

DC24V
Power/M

8W/M
Lumen/M

400lm/M
SMD Type

Lumileds SMD2835
Led Qty(pcs/M)

120LED/M
IP Rating

IP68
Cutting Unit

50mm
PCB Width

6mm

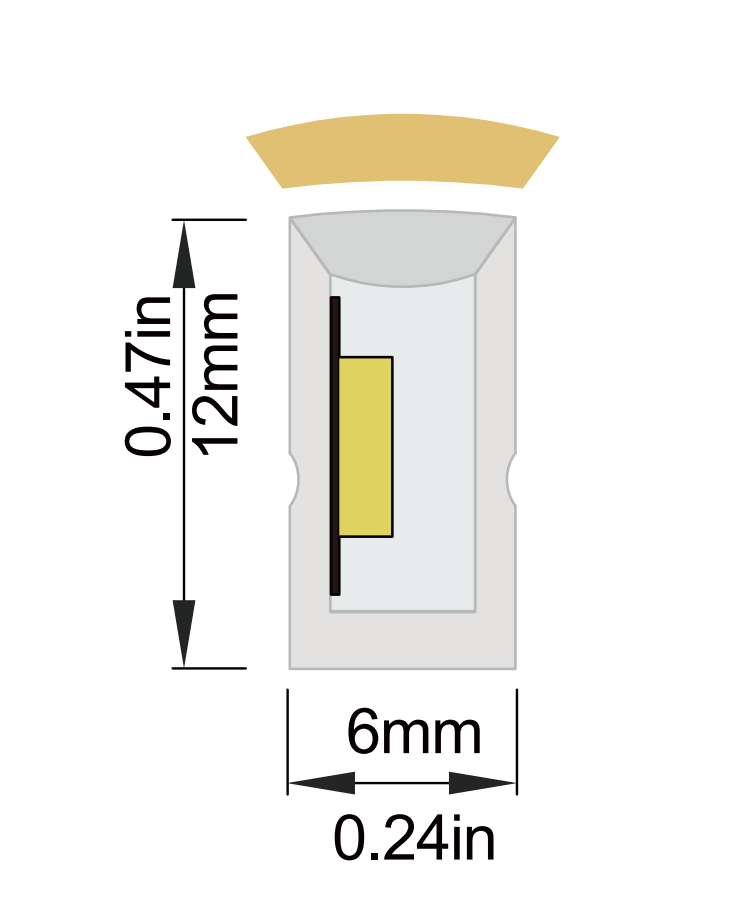

Cross Section(W*H)

6x12mm(W*H)
CCT

2700-6500K/Red/Green/Blue/Yellow/Pink/Orange
CRI(Ra)

90Ra
Beam Angle

120°
Standard Packing

5M/10M/roll
Efficiency(LM/W)

50LM/W
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Powered by 120LED/M Lumileds SMD2835  and lighting efficiency  50lm/W;
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • PU(Polyurethane) encapsulation IP68 rating and applied to the underwated project by depth 3-5.8M( IEC 60598-1:2020).
  • Side view and beam angle is 120degree with dot-free and soft emitting;
  • Small size and it’s cross section is only W6*H12mm.
  • Single color 2700-6500K and red/green/blue/yellow optional;
  • DC24V and constant Voltage design, max run 12M from one end without noticeabe voltage drop;
  • Reel length is 5M/10M optional, and the customized length is available based on customer project;
  • Front entry only with B/R cable or RNF cable from one side or both side;
  • Top bending (vertical bending) and the minimum bending diameter is 60mm
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
  • 5Years warranty
