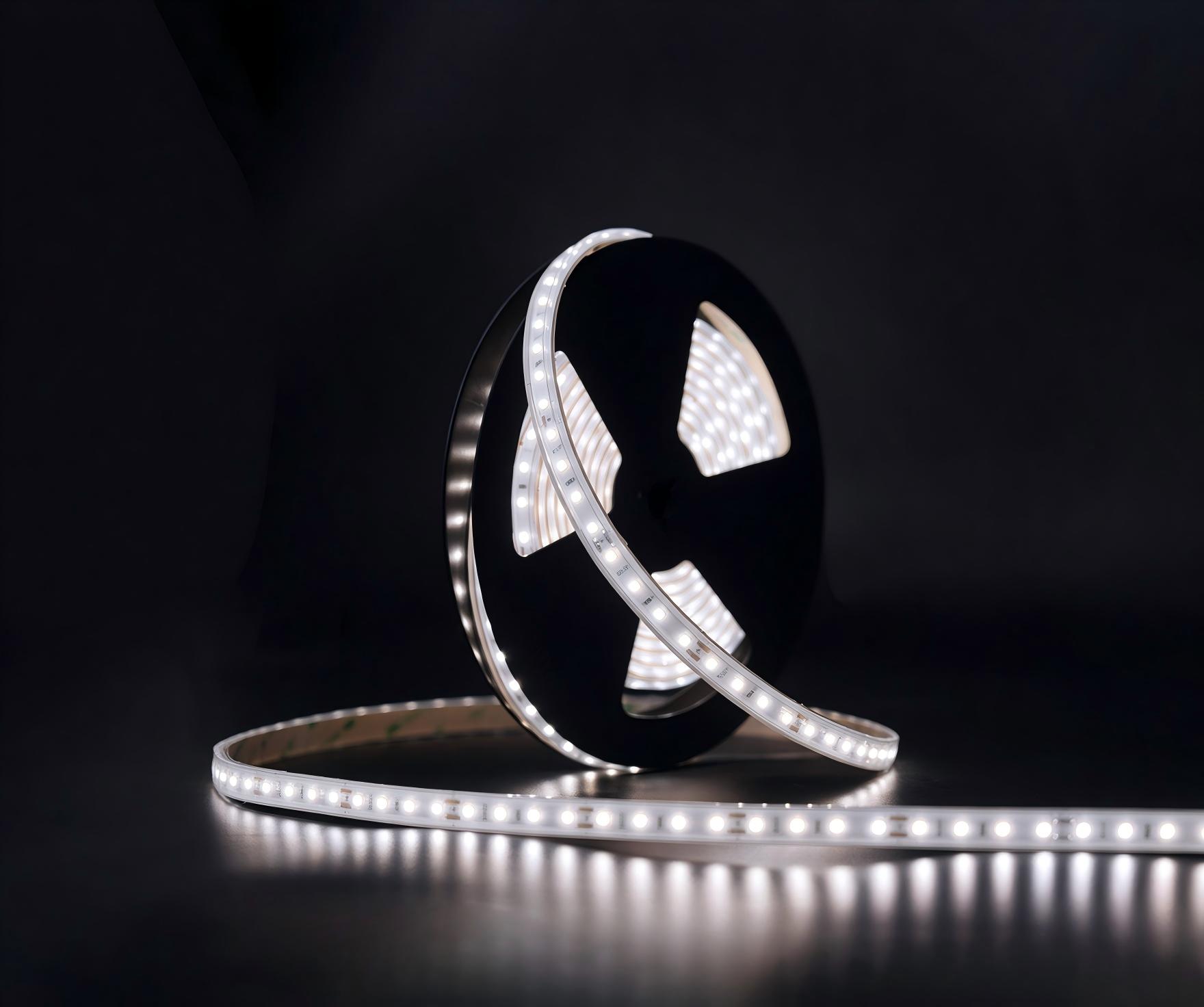

This led strip is special design for the suana room lighting:ambient temperature -25-100℃. Powered by high right SMD3030 80LED/M, power 4,8W/9.6W/M optional, 152.9lm/W, DC24V constant voltage design and max run length 5M from one end without noticeable voltage drop, IP65 rating by integrated silicone extrusion, standard length in 5M/reel and customized length optional, front entry, single color:2700K/3000K/3500K/4000K/5000K/6500K.
| Model No. | AB-JXX080F-SA |
|---|---|
| SMD Type | Epistar SMD3030 |
| Led Qty(pcs/M) | 80LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 4.8W(0.2A/M), 9.6W/M(0.4A/M) |
| Power/M | 4.8W/9.6W |
| Lumen/M | 4.8W:734lm/M, 9.6W:1468lm/M |
| Efficiency(LM/W) | 152.9lm/W |
| CCT | 2700K/3000K/3500K/4000K/5000K/6500K |
| CRI(Ra) | 80Ra |
| Cross Section(W*H) | 12*5mm(W*H) |
| IP Rating | IP65 |
| Beam Angle | 120° |
| Cutting Unit | 50mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3-5years |
| Working hour | 50000h |
| Working temperture | -25℃~105℃ |
