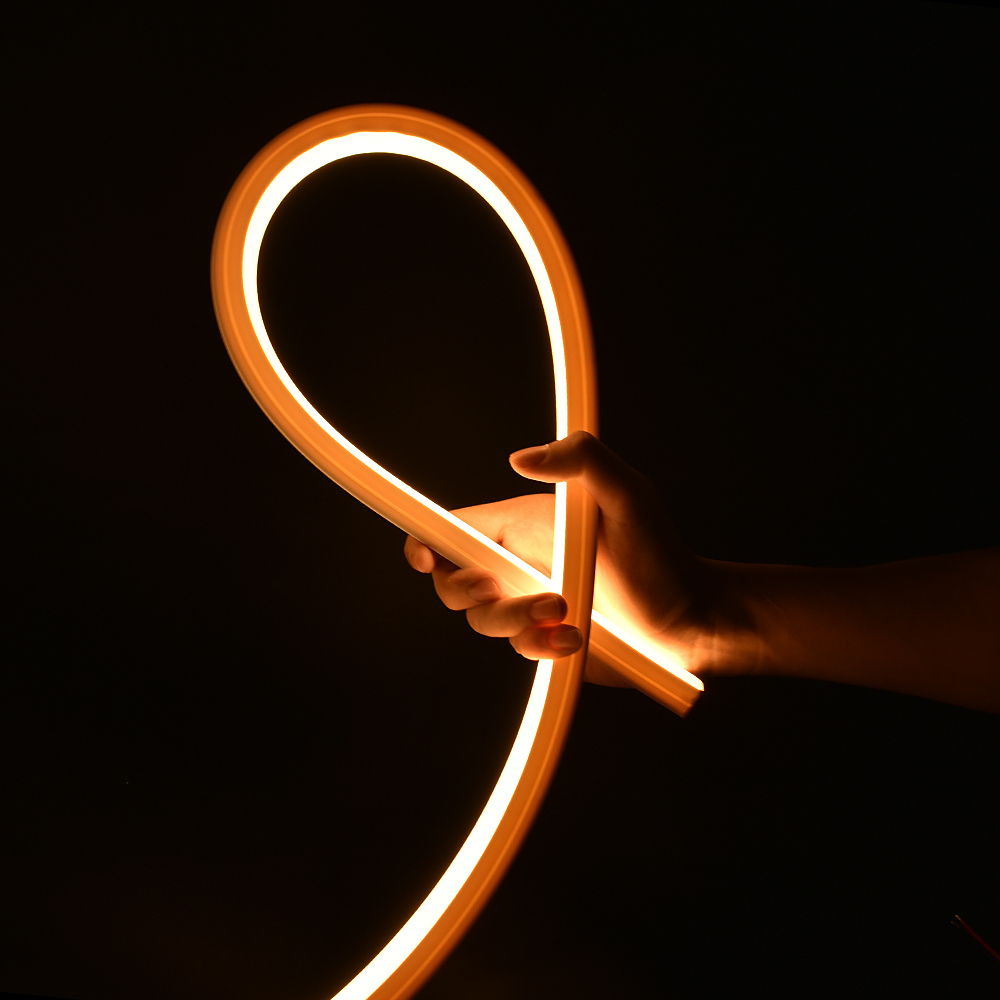

Single Color Top Bending 16x17mm IP68 Silicone Led Neon Flex

Single Color Top Bending 16x17mm IP68 Silicone Led Neon Flex
Single Color Top Bending 16x17mm IP68 Silicone Led Neon Flex - Image 2
Single Color Top Bending 16x17mm IP68 Silicone Led Neon Flex - Image 3
Single Color Top Bending 16x17mm IP68 Silicone Led Neon Flex - Image 4
Single Color Top Bending 16x17mm IP68 Silicone Led Neon Flex - Image 5
Single Color Top Bending 16x17mm IP68 Silicone Led Neon Flex - Image 6
Category Tags , , , , , , ,

The solid silicone extrusion  IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is 16x17mm, In compliance with the UL676 standard. Top Bending(Vertical bending) with min bending radius 200mm, DC24V constant current design, max run 10M from one end without voltage drop, 2700-6500K, red,green,blue,yellow is optional, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FN-GXX120F-E1
SMD Type

Epistar SMD2835 0.2W/LED
Led Qty(pcs/M)

120LED/M
PCB Width

10mm
Input voltage

DC24V
Current/M

0.41A/M
Power/M

10W/M
Lumen/M

831lm/M
Efficiency(LM/W)

83.1lm/W
CCT

2700-6500k/Red/Green/Blue/Yellow/Pink/Purple/Orange
CRI(Ra)

90Ra
Cross Section(W*H)

16*17mm(W*H)
IP Rating

IP68
IK Rating

IK10
Beam Angle

120°
Cutting Unit

50mm
Length

5M/Roll
Max Run

15M from one end
Standard Packing

5M/Roll
Warranty

5 Years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Powered by 120LED/M Lumileds/Epistar SMD2835 and lighting efficiency 83.1lm/W;
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • Silicone solid extrusion and applied to the underwated project and outdoors project.
  • In compliance with the UL676 standard.
  • Top Bending(Vertical bending) with min bending radius 200mm.
  • Cross section: 16x17mm.
  • Single color: 2700-6500K and red/green/blue/yellow optional;
  • DC24V: constant current design, max run 10M from one end without noticeabe voltage drop;
  • Reel length: 5M/10M optional, and the customized length is available based on customer project;

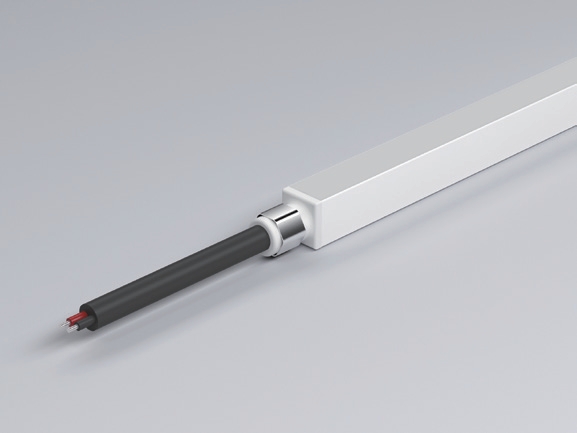

  • Front entry only: 400CM SJOW2*18AWG cable  from one or both end.
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
  • 3Years warranty
