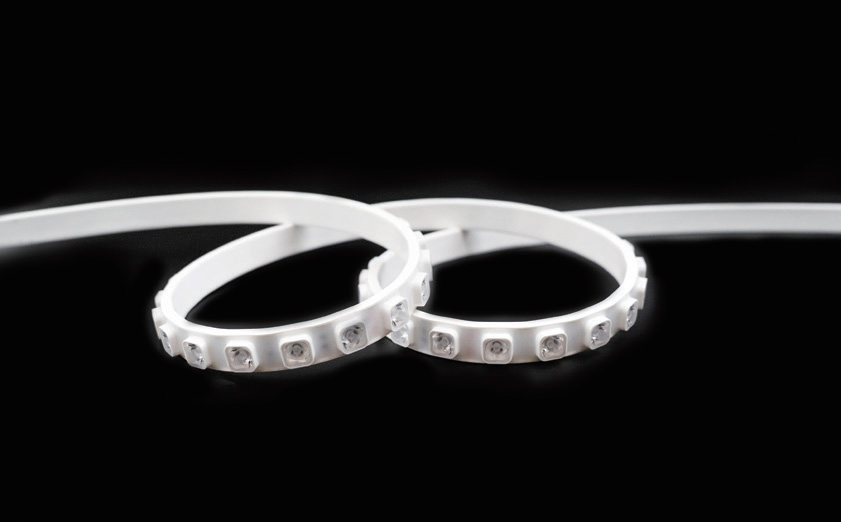

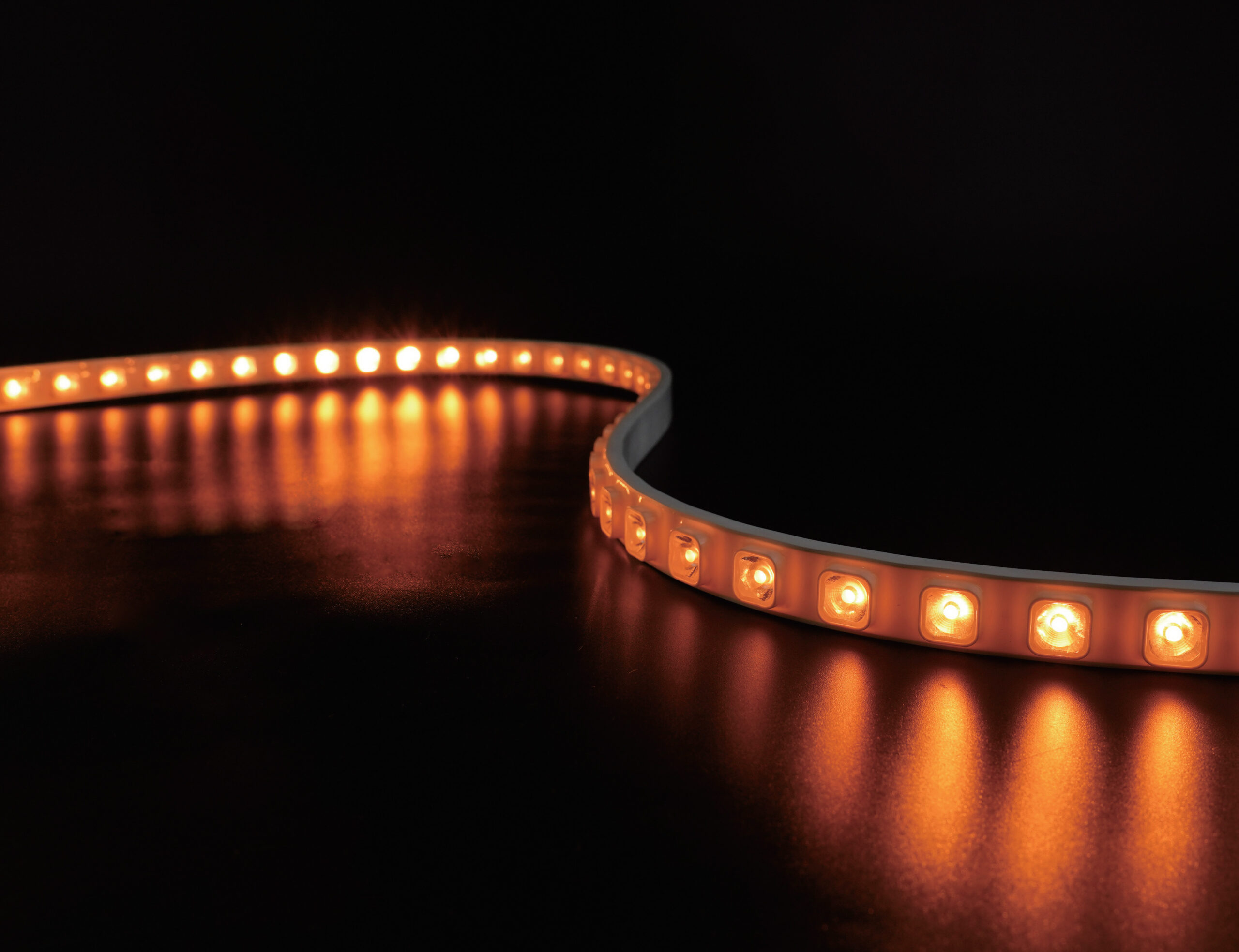

This flexible led wall washer is W20*H10mm, IP67 rating by TPU cover and polyurethane encapsulation,beam angle is 12°,consist of 42LED/M SMD3030 18W 2018LM/M 90Ra, top view and vertical bending with min bending diameter 200mm, 5M/reel and DC24V-5M max run length from one end.
| Model No. | WL-J30042F-C |
|---|---|
| SMD Type | SMD3535 |
| Led Qty(pcs/M) | 42LED/M |
| PCB Width | 15mm |
| Input voltage | DC24V |
| Current/M | 0.75A/M |
| Power/M | 18W/M |
| Lumen/M | 2018LM/M |
| Efficiency(LM/W) | 112LM/W |
| CCT | 2700-6500K |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | W20*H10mm |
| IP Rating | IP67 |
| Beam Angle | 12° |
| Cutting Unit | 166.6mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 36,000 hours |
| Working temperture | -25℃-60℃ |
China Fast Delivery LED Strip & Neon Flex Factory, Where Make Creatives Come To Play.
