The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is W10*H10mm, trio-view and top bending(vertical bending) with min bending radius 100mm, can be installed into water in 3M, DC24V constant voltage design, max run 10M from one end without voltage drop, Tunable White 2700K-6500K dimming, CCT&brightness could be controlled by the controller, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FP-GTW120F-A
Input voltage

DC24V
Current/M

2*0.42A
Power/M

2*8W/M
Lumen/M

575LM/M
Efficiency(LM/W)

71.8lm/W
SMD Type

Lumileds SMD2835 2IN1 W+WW
Led Qty(pcs/M)

120LED/M
IP Rating

IP68
Cutting Unit

50mm
PCB Width

8mm

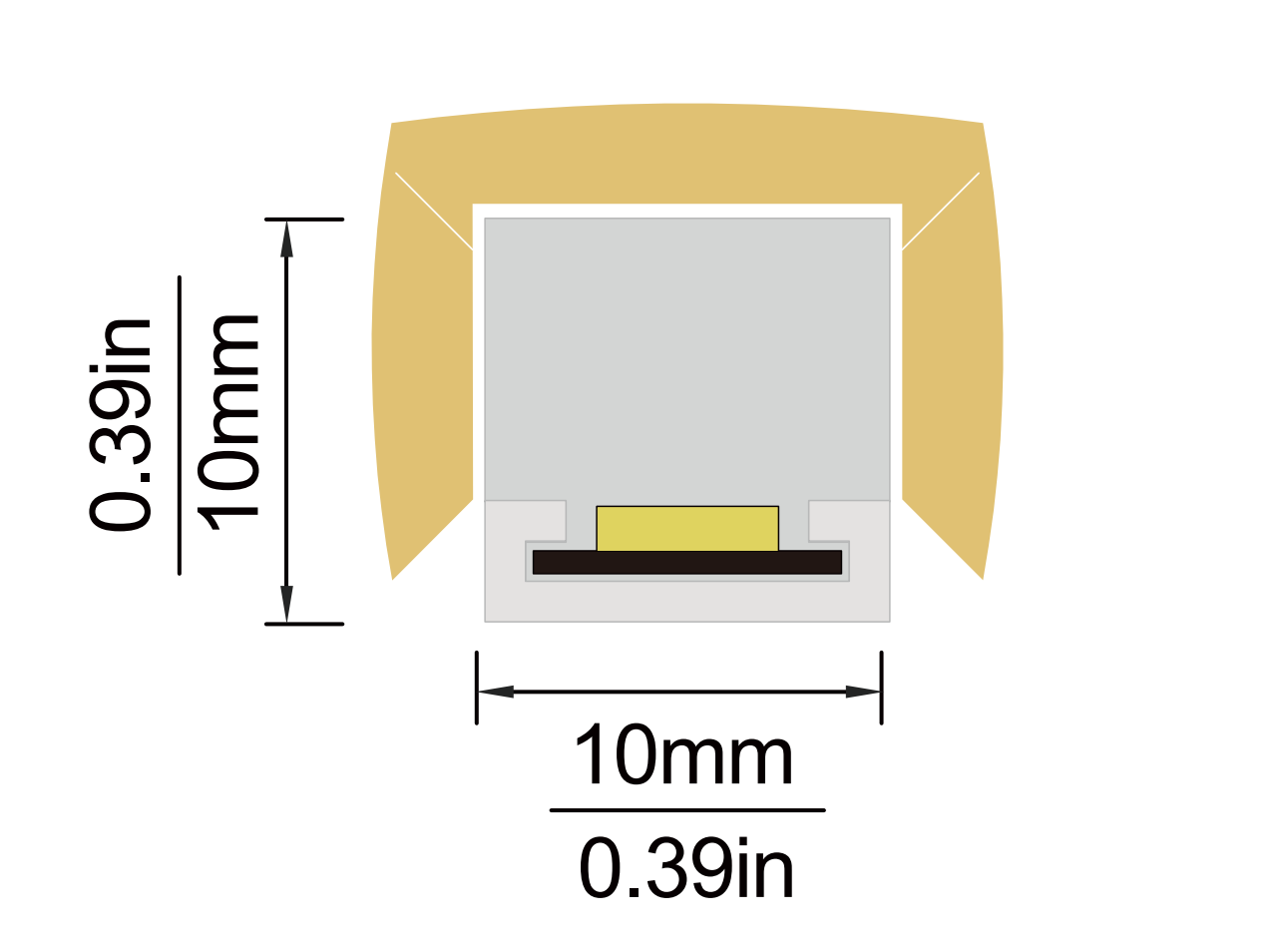

Cross Section(W*H)

10*10mm(W*H)
CCT

Dual White(2700+6500K)
CRI(Ra)

90Ra
Beam Angle

180°
Standard Packing

5M/10M/roll
Working hour

50000h
Working temperture

-45-70℃
ASK FOR A QUOTE

Products Details

  • Powered by 120LED/M Lumileds SMD2835 2IN1 W+WW LED and lighting efficiency up to 71.8lm/W;
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • PU(Polyurethane) encapsulation IP68 rating and applied to the underwated project by depth 3-5.8M( IEC 60598-1:2020).
  • Trio view and beam angle is 180degree with dot-free and soft emitting;
  • Cross section is W10*H10mm.
  • Tunable White 2700K-6500K dimming, CCT&brightness could be controlled by the controller.
  • DC24V and constant Voltage design, max run 10M from one end without noticeabe voltage drop;
  • Reel length is 5M/10M optional, and the customized length is available based on customer project;
  • Front entry only with B/R cable or RNF cable from one side or both side;
  • Top bending (vertical bending) and the minimum bending diameter is 100mm
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
  • 5Years warranty
