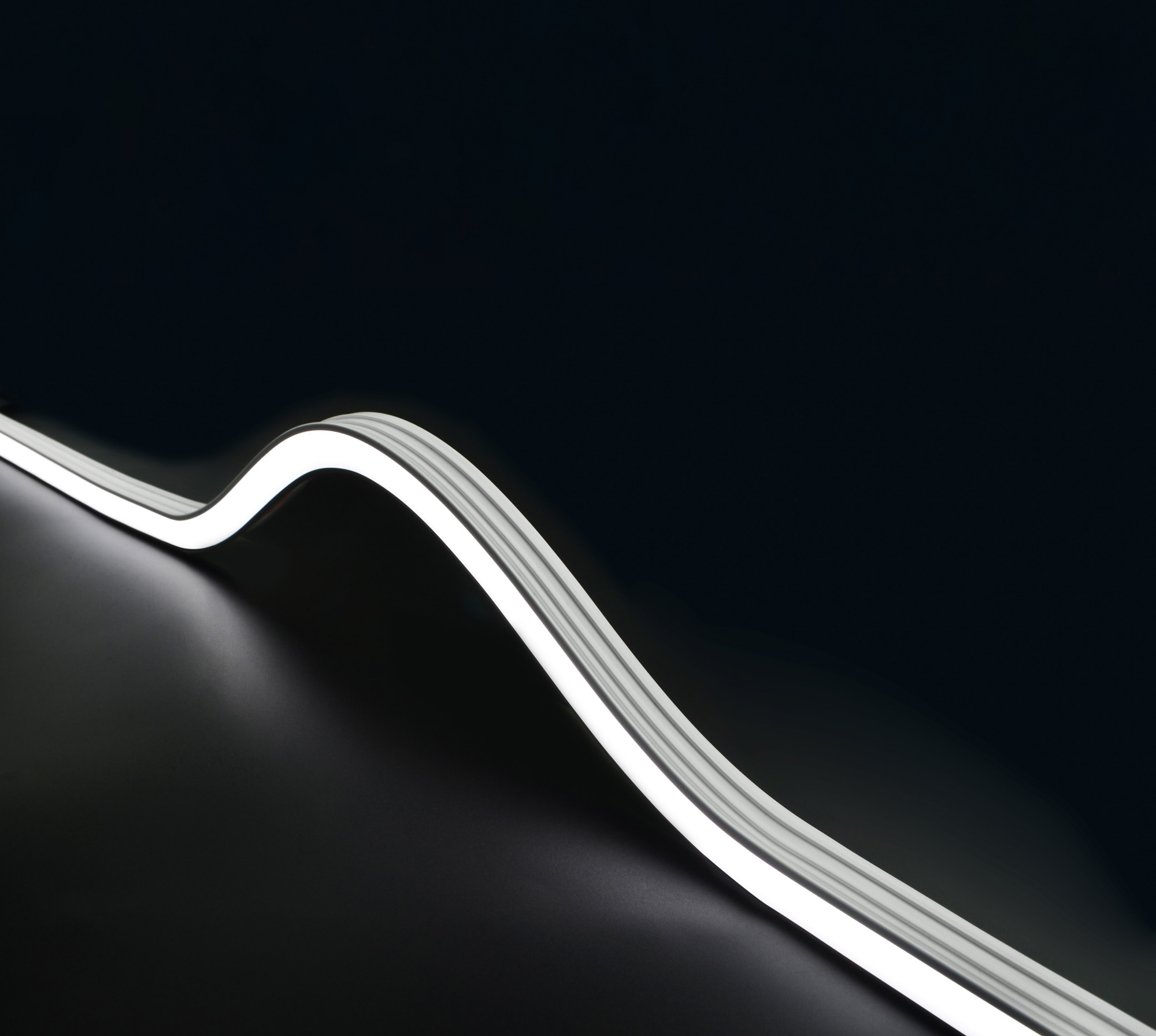

The recessed led neon flex is the ideal solution for the indoors lighting project such as accent lighting, cove lighting, corridor lighting and so on. Cross section size is W12*H20mm, side or horizontal bending with min bending 150mm, IP44 with integrated silicone molding extrusion, max run 5M from one end without noticeable voltage drop, Tunable whie:the CCT and brightness could be controlled from 2700-6000K., standard length 5M/reel and customized length optional, front entry ONLY with 30CM B/R cable from one or both end.
| Model No. | FN-GTW096F-O-R-MINI |
|---|---|
| SMD Type | Epistar SMD2835 W+WW |
| Led Qty(pcs/M) | 96LED/M |
| PCB Width | 8mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 370lm/M |
| Efficiency(LM/W) | 37LM/W |
| CCT | Tunable White(2700+6000K) |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | 12*20mm(W*H) |
| IP Rating | IP44 |
| Beam Angle | 120° |
| Cutting Unit | 62.5mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/10M/roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25℃-60℃ |
