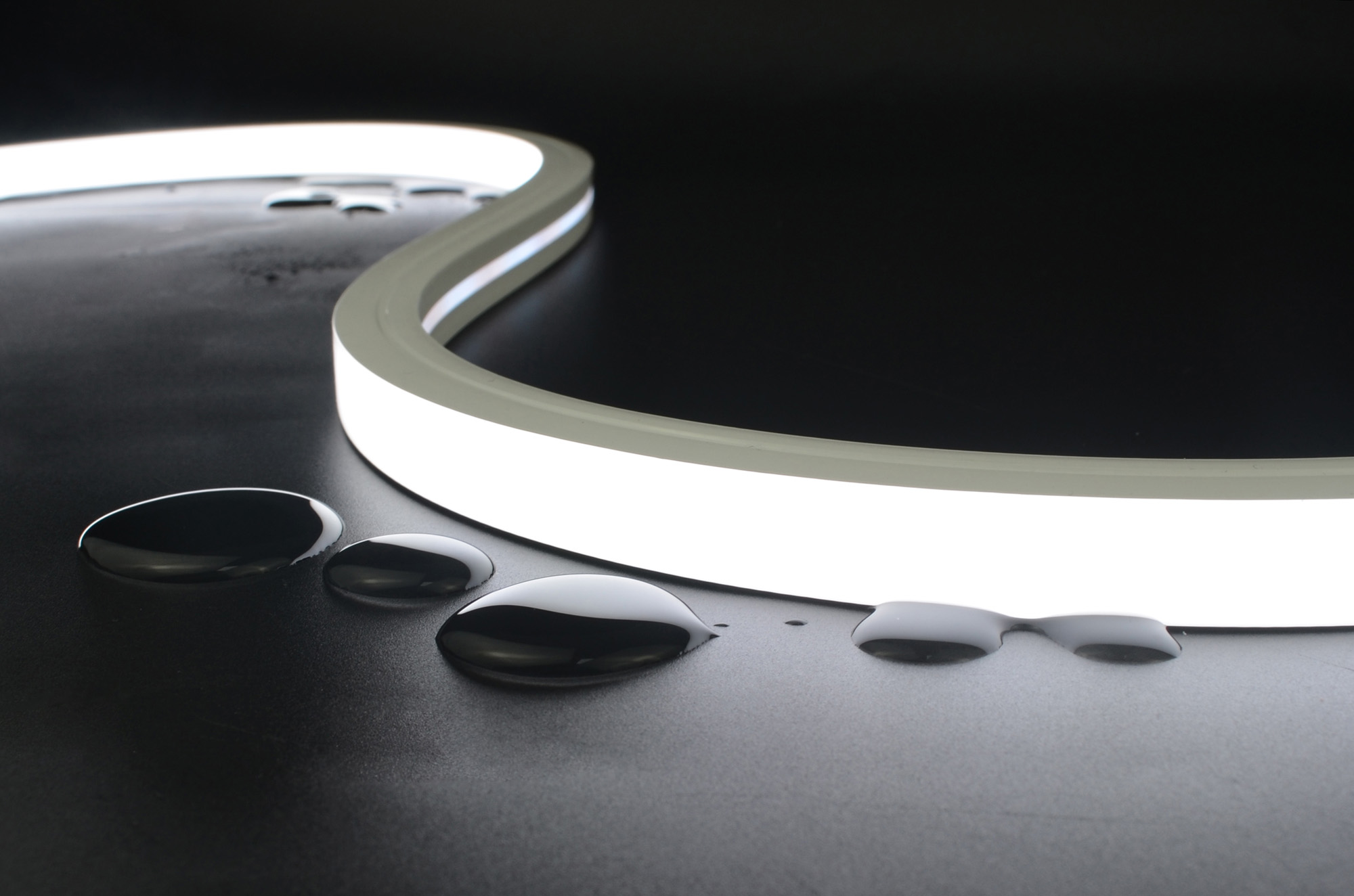

The silicone extrusion IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is 16x15mm, Top bending(Vertical bending) with min bending radius 200mm, DC24V constant voltage design, max run 5M from one end without voltage drop, Tunable white and the CCT&brightness could be adjusted in 2600-6100K, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FN-GTW096F-E1 |
|---|---|
| SMD Type | Lumileds SMD2835 2IN1 W+WW |
| Led Qty(pcs/M) | 96LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 410LM/M |
| Efficiency(LM/W) | 41LM/W |
| CCT | Tunable White(2600+6100K) |
| CRI(Ra) | 90Ra |
| Cross Section(W*H) | 16*15mm(W*H) |
| Beam Angle | 120° |
| IP Rating | IP68 |
| IK Rating | IK10 |
| Cutting Unit | 62.5mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
