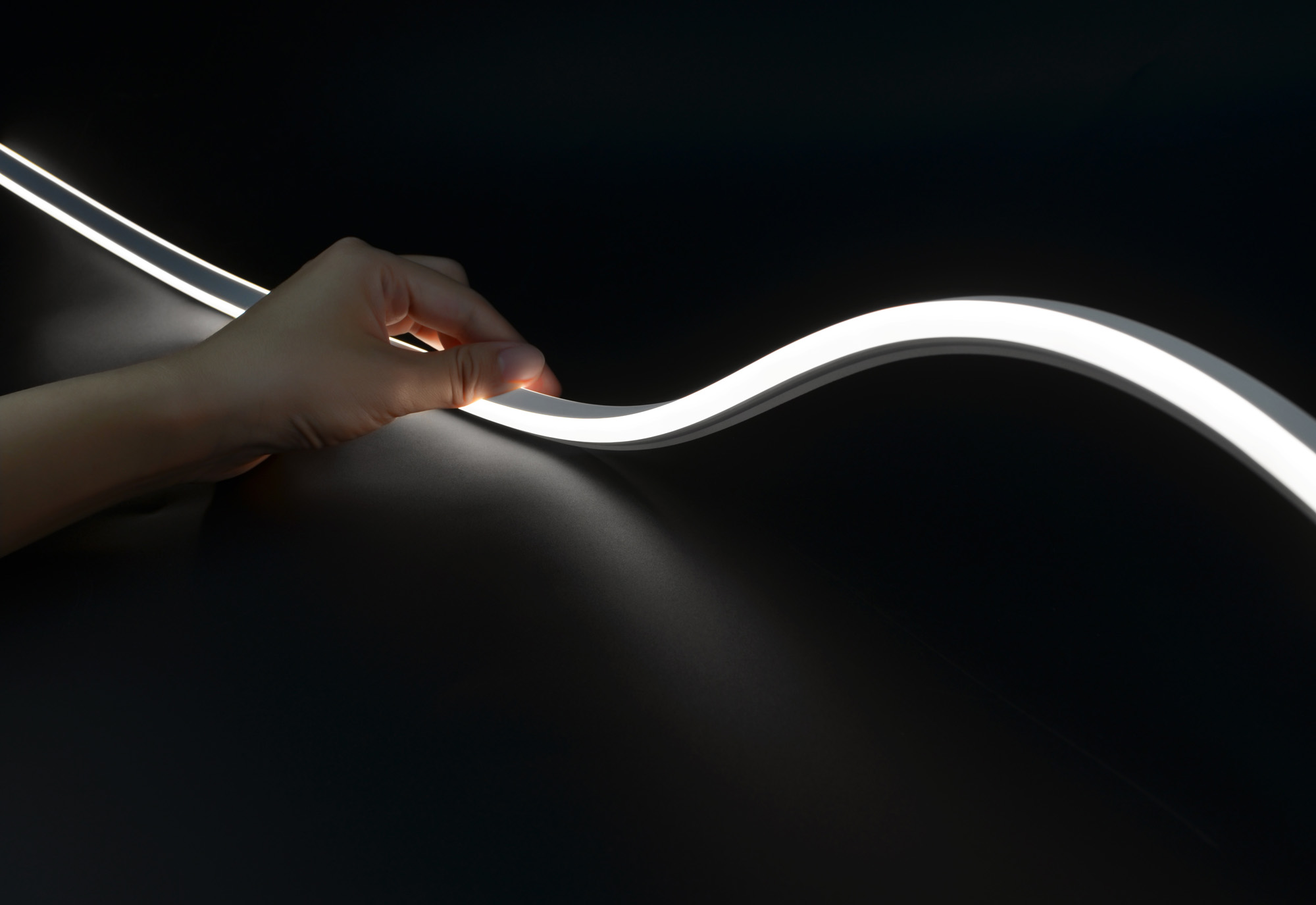

Tunable White Double-sided Emitting 16x12mm Side Bending IP65 Silicone Led Neon Flex

Category Tags , , , , , ,

This led neonflex with cross section W16*H12mm, tunable white with 2700K-6500K dimming, recessed installation, side or horizontal bending, with min bending radius 200mm, IP65 Rating, DC24V-max run length 5M from one end, 5M/reel and customized length optional, consist of Epistar SMD2835 W+WW 96LED/M, 10W/M 580LM/M 58LM/W 90Ra, front entry with integrated endcap.

Additional information

Model No.

FN-GTW096F-Y
SMD Type

Epistar SMD2835 W+WW
Led Qty(pcs/M)

96LED/M
PCB Width

8mm
Input voltage

DC24V
Current/M

0.41A/M
Power/M

10W/M
Lumen/M

580LM/M
Efficiency(LM/W)

58LM/W
CCT

Dual White(2700+6500K)
CRI(Ra)

90Ra
Cross Section(W*H)

W16*H12mm
IP Rating

IP65
Beam Angle

120°
Cutting Unit

62.5mm
Length

5M/Roll
Max Run

5M from one side
Standard Packing

5M/Roll
Warranty

3 years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Unique two-sided luminous structure design, can be used as a variety of scene atmosphere lighting.
  • Special installation as recessed installation, no need any accessory, easy for project.
  • Side or horizontal bending with min bending radius 200mm.
  • Tunable white 2700-6500K dimming, and the CCT&brightness could be controlled by the controllers.
  • Powered by Epistar SMD2835 W+WW 96LED/M 10W/M 580LM/M 58LM/W 90Ra.
  • Constant volte design DC24V and max run 5M from one end without noticeable voltage drop.
  • Dow Chemical SILASTIC™ ET-7021 silicone rubber, which provides high transparency and high strength.
  • IP65 protection grade salt solution resistance, acids & alkalis and UV resistance;
  • Front entry with integrated endcap and with 30CM B/R cable from one or both end.
  • Standard reel length in 5M/reel and customized length optional.
  • 3 step macadam bin and one bin only to ensure the color consistency.
