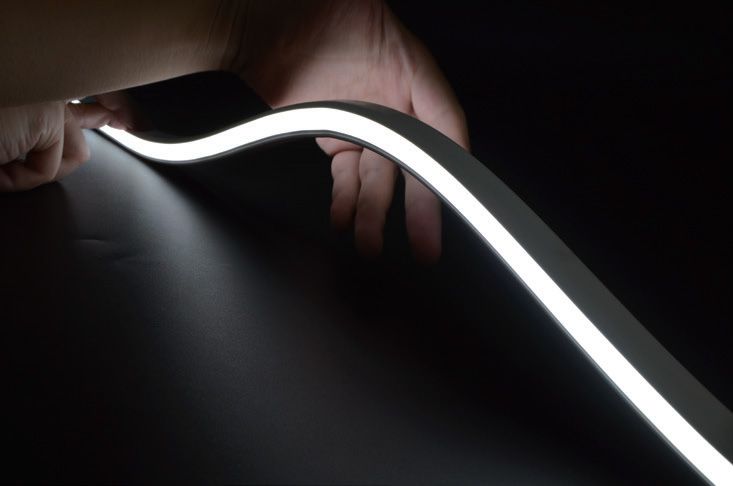

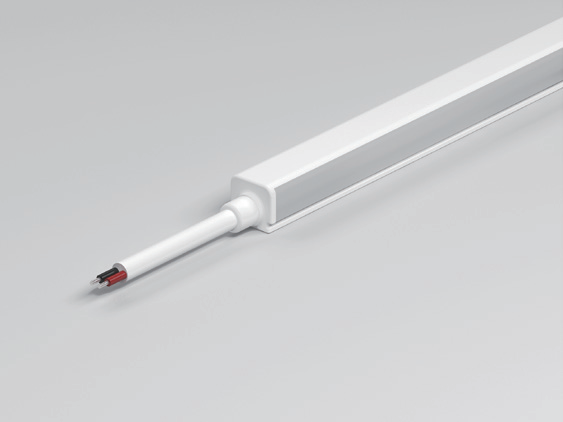

This led neonflex with cross section W16*H15mm, double-sided emitting design, Tunable white with 2700K-6500K dimming, recessed installation, top or vertical bending, with min bending radius 200mm, IP65 Rating, DC24V-max run length 5M from one end, 5M/reel and customized length optional, consist of Epistar SMD2835 W+WW 96LED/M, 15W/M 913LM/M 61LM/W 90Ra, front and bottom entry with integrated endcap.
| Model No. | FN-GTW096F-E-D |
|---|---|
| SMD Type | Epistar SMD2835 0.2W/LED |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.625A/M |
| Power/M | 15W/M |
| Lumen/M | 913LM/M |
| Efficiency(LM/W) | 61LM/W |
| CCT | Dual White(2700+6500K) |
| CRI(Ra) | 90Ra |

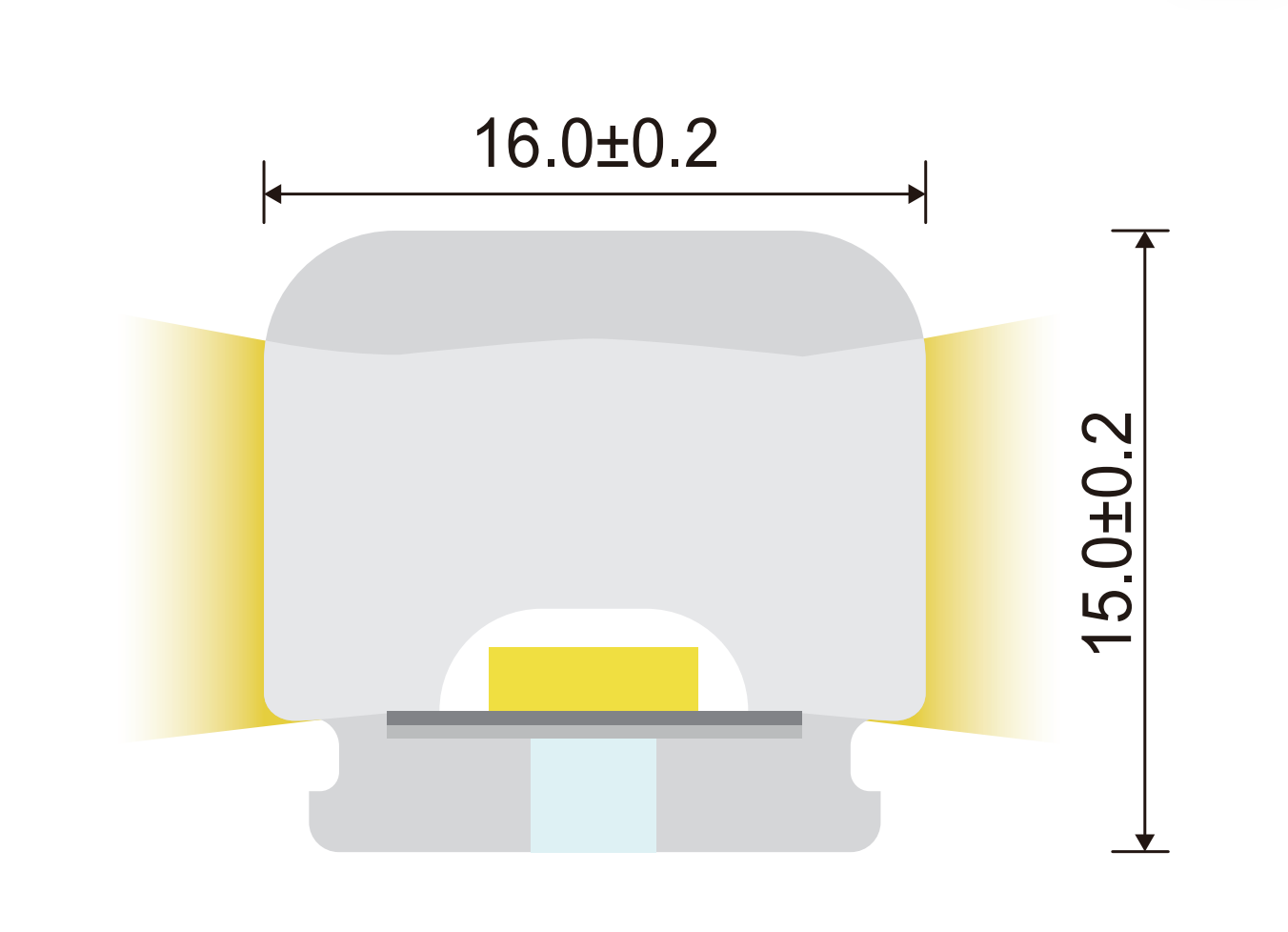

| Cross Section(W*H) | 16*15mm(W*H) |
| IP Rating | IP67 |
| Beam Angle | 120° |
| Cutting Unit | 62.5mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 3 years |
| Working hour | 50000h |
| Working temperture | -25℃-60℃ |
