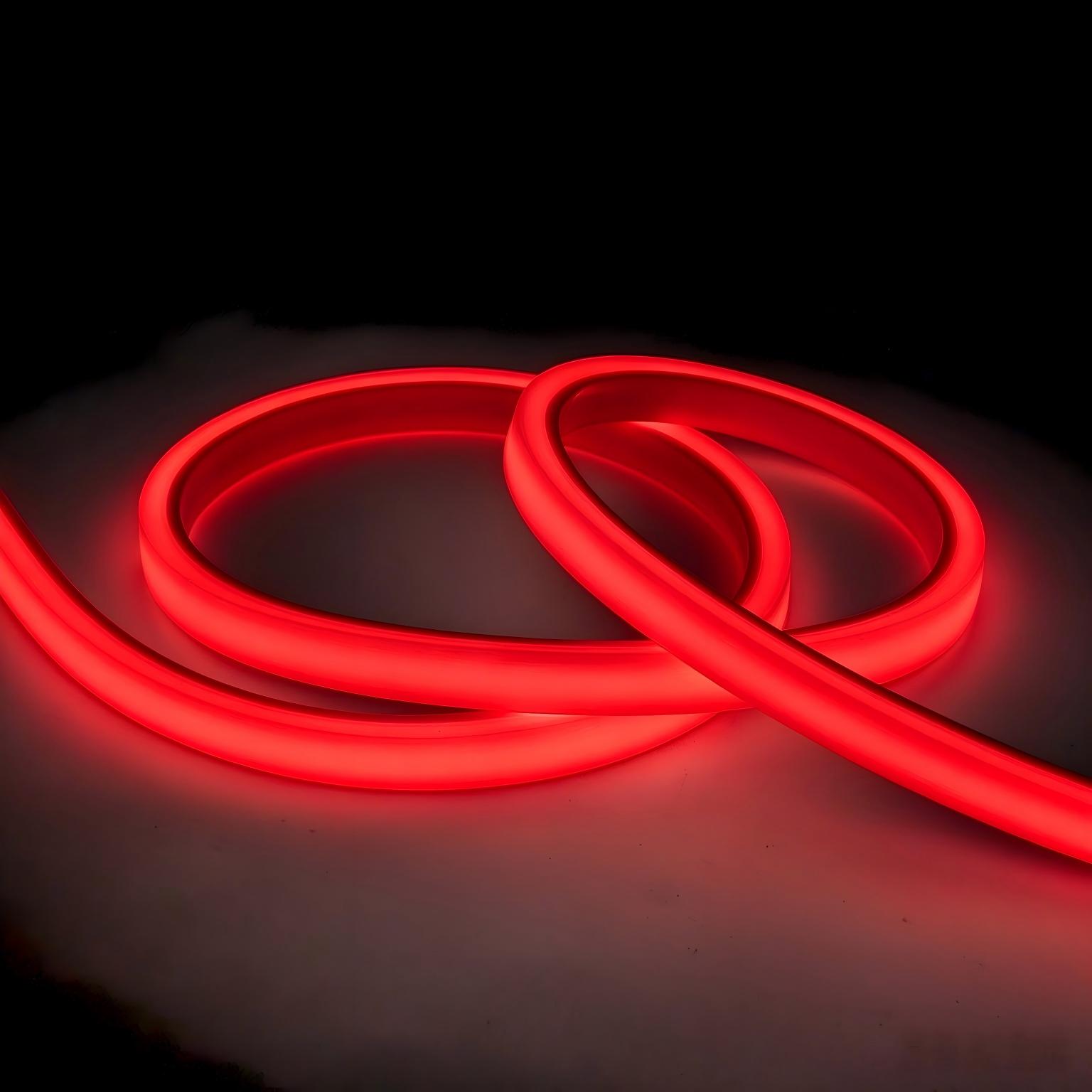

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is 14x12mm, Trio-view: three-side emitting design and beam angle 180°. Top bending(Vertical bending) and min bending diameter 150mm, can be installed into water in 3M, DC24V constant voltage design, max run 10M from one end without voltage drop, RGB color changing and the color&brightness can be controlled by the RF or 2.4G RGB controllers, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FP-BRG120F-H |
|---|---|
| SMD Type | SMD3535 3IN1 RGB |
| Led Qty(pcs/M) | 120LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.583A/M |
| Power/M | 14 W/M |
| Lumen/M | 500lm/M |
| Efficiency(LM/W) | 35.7lm/W |
| CCT | RGB Color Changing |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*15mm(W*H) |
| IP Rating | IP68 |
| IK Rating | IK08 |
| Beam Angle | 180° |
| Cutting Unit | 50mm |
| Length | 5M/Roll |
| Max Run | 10M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 5 Years |
| Working hour | 50000h |
| Working temperture | -45℃~+70℃ |
