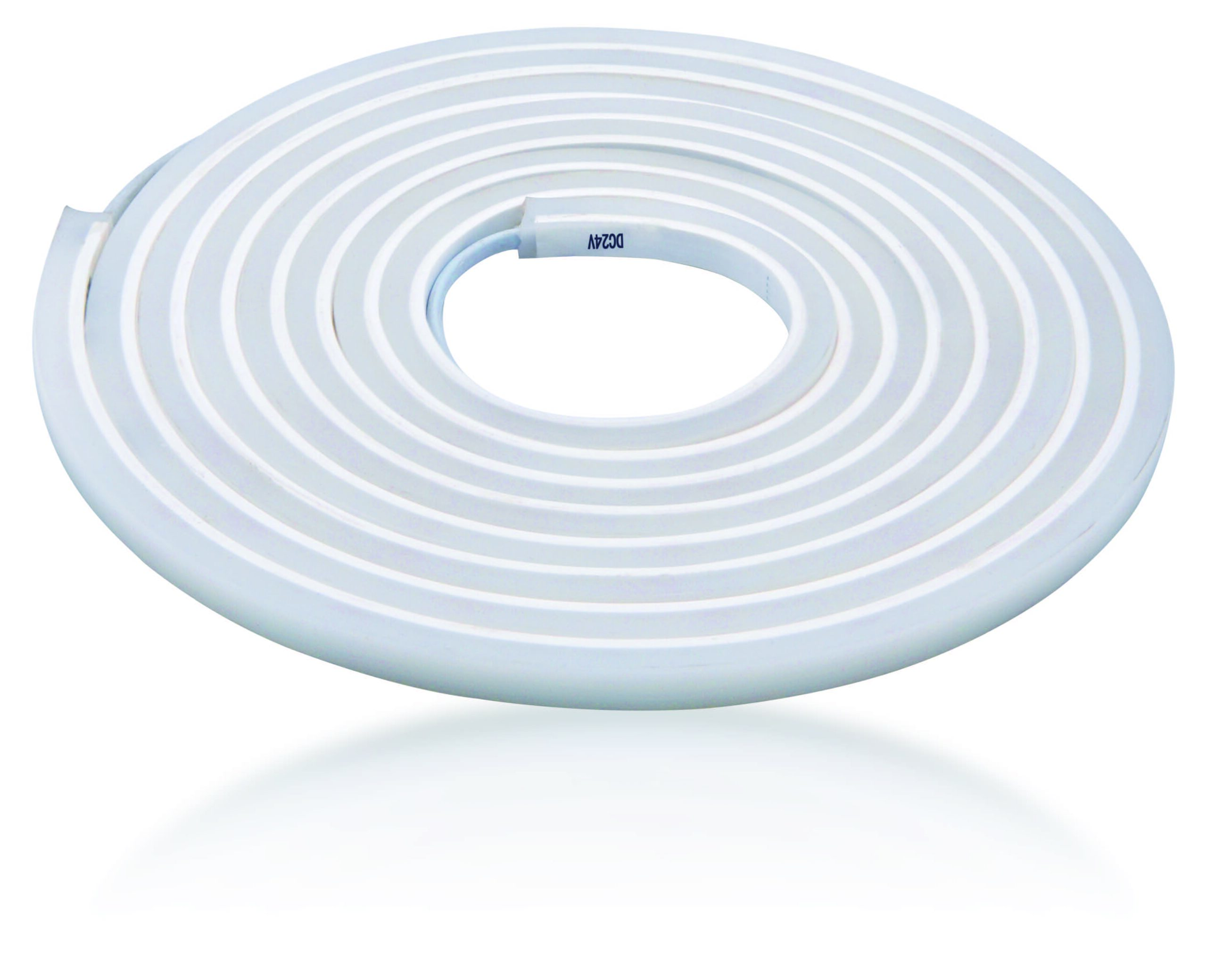

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is W10*H10mm, trio-view and top bending(vertical bending) with min bending radius 100mm, can be installed into water in 3M, DC24V constant voltage design, max run 7.5M from one end without voltage drop, RGB color changing, color&brightness controlled by the controller or DMX512 system, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FP-IRG120F-A |
|---|---|
| Input voltage | DC24V |
| Power/M | 12W/M |
| Lumen/M | 410LM/M |
| Efficiency(LM/W) | 34.2lm/W |
| SMD Type | SMD3535 3IN1 RGB |
| Led Qty(pcs/M) | 120LED/M |
| IP Rating | IP68 |
| Cutting Unit | 50mm |
| PCB Width | 8mm |
| Cross Section(W*H) | 10*10mm(W*H) |
| CCT | RGB Color Changing |
| CRI(Ra) | — |
| Beam Angle | 180° |
| Standard Packing | 5M/Roll |
| Working hour | 50000h |
| Working temperture | -45-70℃ |
