Tunable White Top Bending 10x10mm PU IP68 Led Neon Flex

Tunable White Top Bending 10x10mm PU IP68 Led Neon Flex
Tunable White Top Bending 10x10mm PU IP68 Led Neon Flex - Image 2
Category Tags , , , , , , ,

The PU encapsulation IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project. IK08  rating. Cross section is 10x10mm, top bending: (vertical bending), min bending radium 100mm, can be installed into water in 3M, DC24V constant voltage design, max run 10M from one end without voltage drop, tunable White and cct&brightness adjustable from the controller, standard length in 5M/10M/roll, and the customized length is optional.

Additional information

Model No.

FP-GTW120F-Q
SMD Type

Lumileds SMD2835 2IN1 W+WW
Led Qty(pcs/M)

120LED/M
PCB Width

6mm
Input voltage

DC24V
Current/M

2*0.33A
Power/M

2*8W/M
Lumen/M

465LM/M
Efficiency(LM/W)

58.1lm/W
CCT

Tunable White(2700+6500K)
CRI(Ra)

90Ra

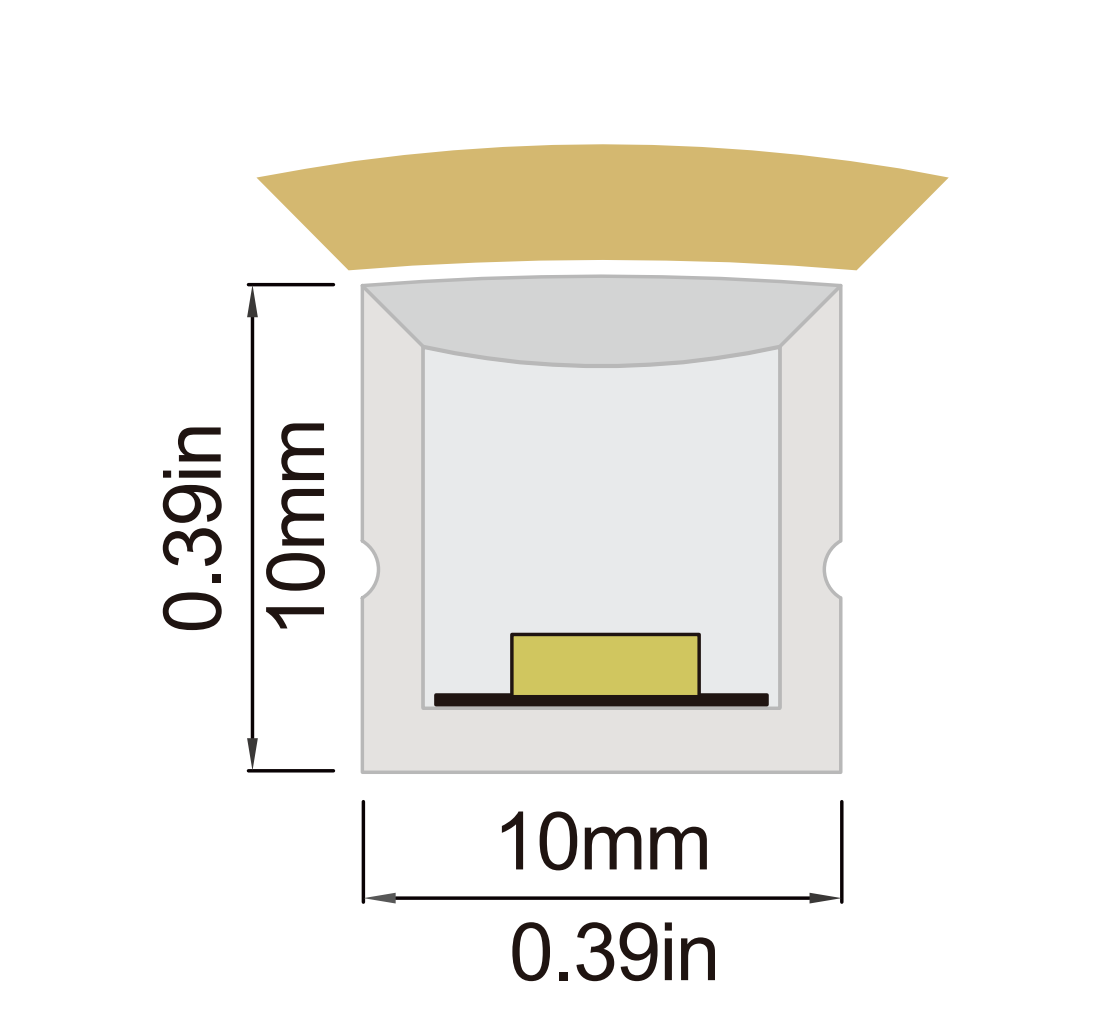

Cross Section(W*H)

10*10mm
IP Rating

IP68
IK Rating

IK08
Beam Angle

120°
Cutting Unit

50mm
Length

5M/Roll
Max Run

10M from one side
Standard Packing

5M/10M/roll
Warranty

5 Years
Working hour

50000h
Working temperture

-20°C~+45°C
ASK FOR A QUOTE

Products Details

  • Special design for the swimming pool/marine lighting/underwater/facade lighting project.
  • IK08 Rating.
  • Powered by Lumileds SMD2835 W+WW 2IN1 120LED/M and efficacy to 58.1lm/W.
  • Completely dot-free and homogeneous lighting.
  • 3-step macadam bin and one bin only to ensure the color consistency in the different batch was the same.
  • PU(Polyurethane) encapsulation IP68 rating and applied to the underwated project by depth 3-5.8M( IEC 60598-1:2020).
  • Top bending: (Vertical bending), min bending radium 100mm.
  • Cross section:10x10mm(WxH).
  • Tunable White: CCT&brightness adjustable from 2700-6500K, and can be controlled by the controller.
  • DC24V: constant Voltage design, max run 10M from one end without noticeabe voltage drop;
  • Reel length is 5M/10M optional, and the customized length is available according to customer project.
  • Front/side/bottom entry:  RNF cable or waterproof connector  from single or double ends.
  • UV protected, yellowing resistance, solid and weather resistant for outdoor lighting.
  • Solvents and sea water resistant.
