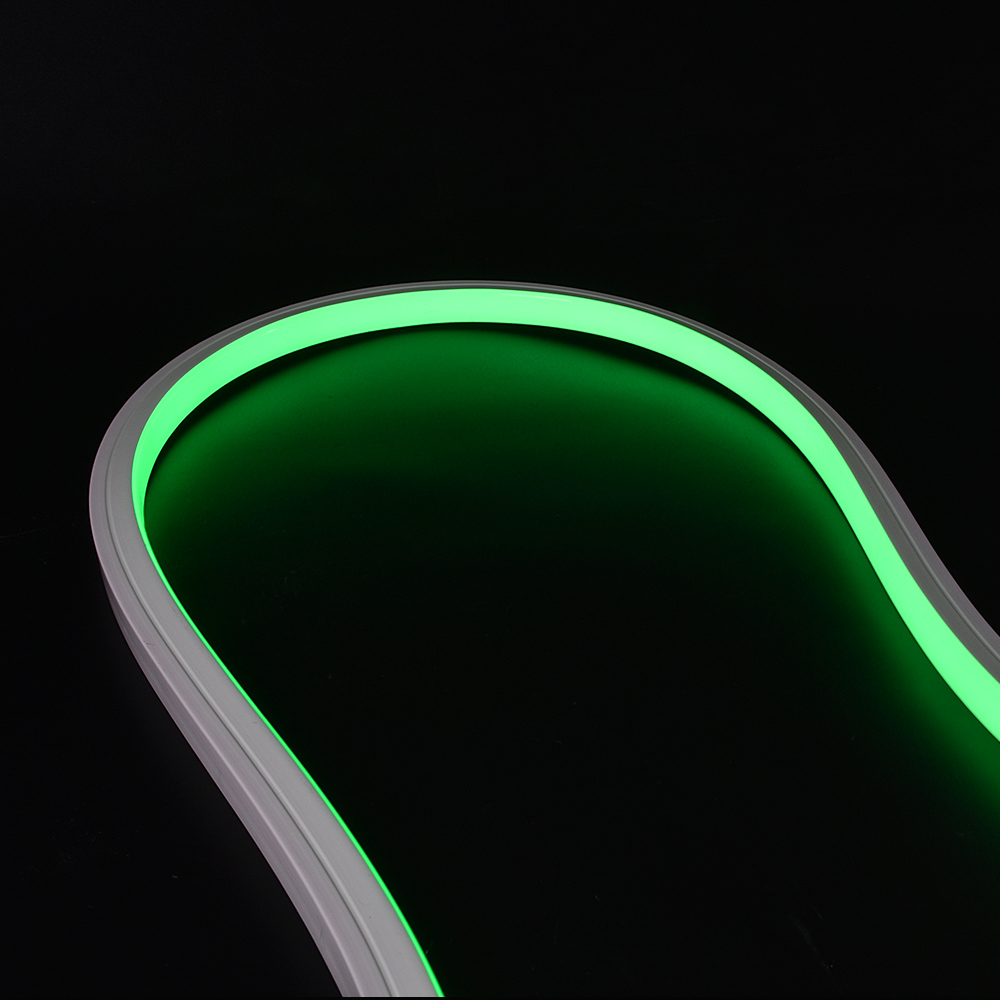

The silicone solid extrusion IP68 led neon flex is the ideal solution for the marine/swimming pool and facade lighting project, cross section is 16x17mm, in compliance with the UL676 standard, Top bending(Vertical bending) and min bending diameter 200mm, DC24V constant voltage design, max run 5M from one end without voltage drop, RGBW color changing and the color&brightness can be controlled by the RF or 2.4G RGBW controllers, standard length in 5M/10M/roll, and the customized length is optional.
| Model No. | FN-GRW096F-F-V3 |
|---|---|
| SMD Type | Lumileds SMD5050 RGBW |
| Led Qty(pcs/M) | 96LED/M |
| PCB Width | 10mm |
| Input voltage | DC24V |
| Current/M | 0.41A/M |
| Power/M | 10W/M |
| Lumen/M | 370lm/M |
| Efficiency(LM/W) | 37LM/W |
| CCT | RGBW(W=2700K/3000K/4000K/5000K/6000K) |
| CRI(Ra) | — |
| Cross Section(W*H) | 16*17mm(W*H) |
| IP Rating | IP68 |
| IK Rating | IK10 |
| Beam Angle | 120° |
| Cutting Unit | 62.5mm |
| Length | 5M/Roll |
| Max Run | 5M from one side |
| Standard Packing | 5M/Roll |
| Warranty | 5 Years |
| Working hour | 50000h |
| Working temperture | -20°C~+45°C |
